Makita HR4013C Technical Information

Wiring diagram

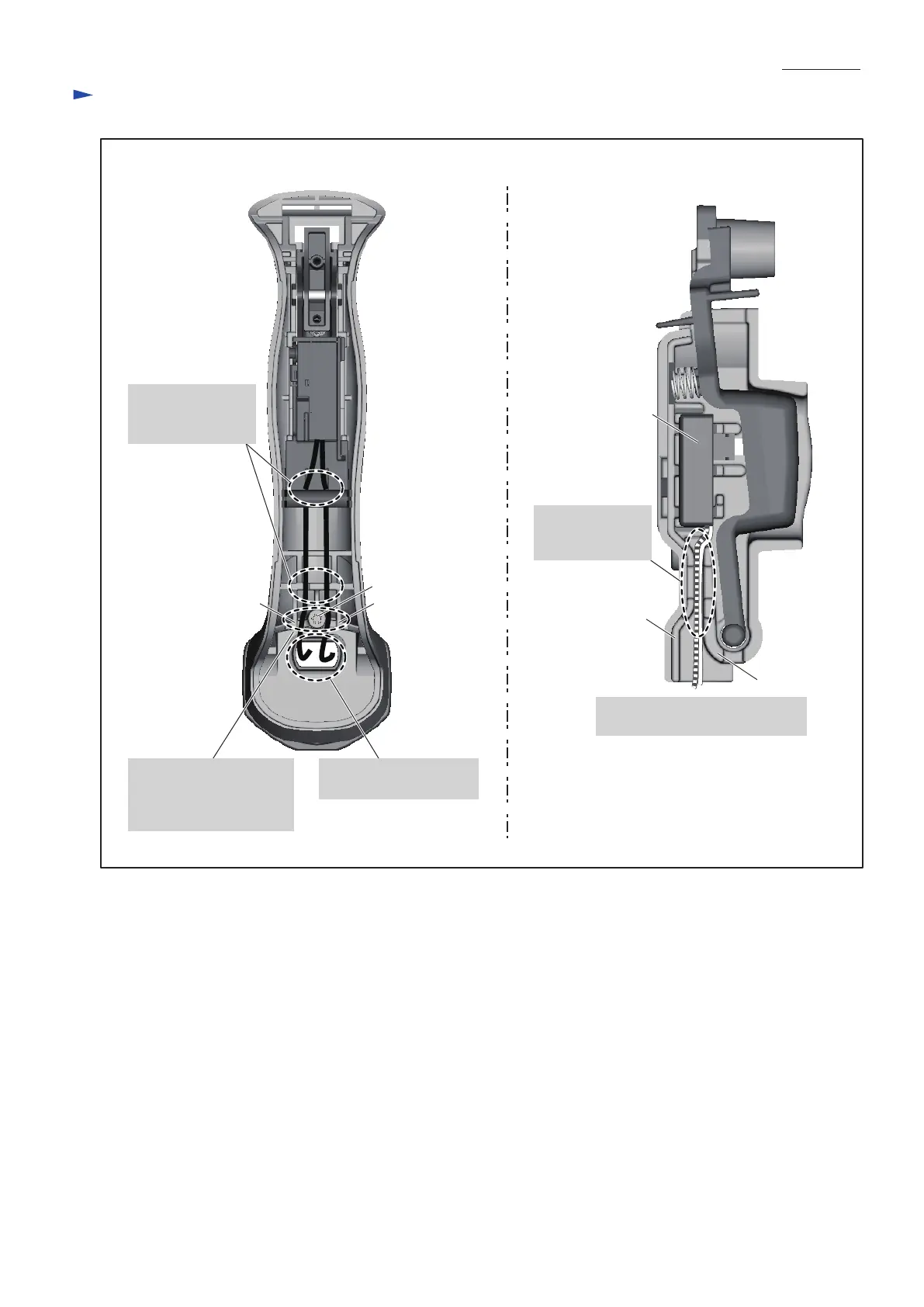

Fig. D-2
Switch unit
Boss
Rib BRib A
Rib D
Rib C
[Handle section] [Switch unit]
Fix the Lead wires
of Lead unit with
Lead wire holder.
Route one Lead wire
between Rib A and Boss,
the other between Rib B
and Boss.
Route Lead wires of Switch unit
between Ribs C and D.
Route Lead wires
of Switch unit
in this groove.
Pass Lead wires through
the opening of Handle.
P 18/ 19

Makita HR4013C Specifications

General

Chuck type	SDS Max
Product color	Black, Blue
Adjustable speed	Yes
Cord length	4 m
Input power	1100 W
Power source	AC
AC input voltage	110-240 V
Impact rate	2900 bpm
Rated speed (max)	500 RPM
Impact energy (max)	8.3 J
Sound pressure level	92 dB
Drilling diameter in steel (max)	- mm
Drilling diameter in concrete (max)	40 mm

Weight and Dimensions

Depth	479 mm
Width	112 mm
Height	263 mm
Weight	6800 g
