Makita HR4013C Technical Information

Fig. 4

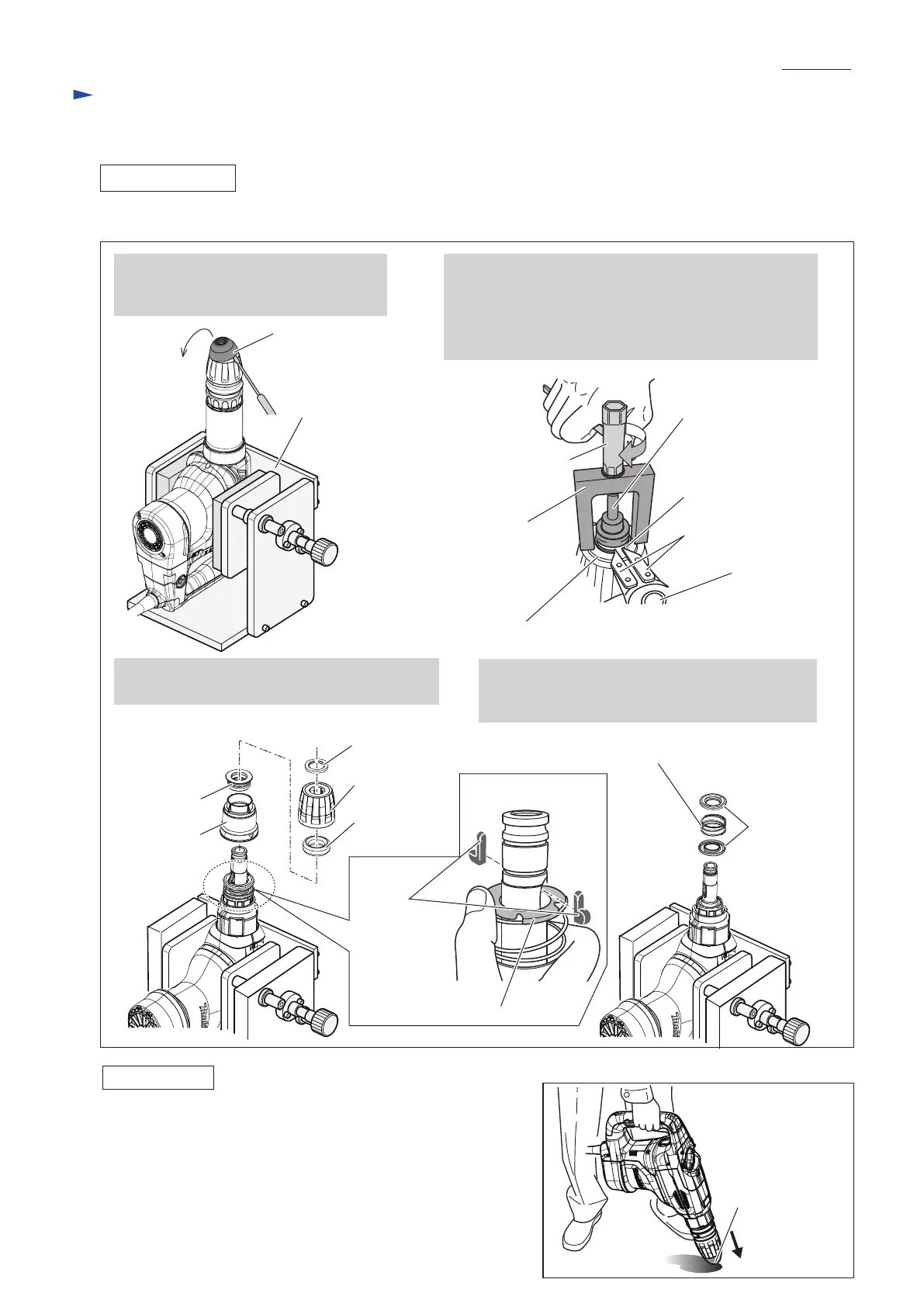

[3] DISASSEMBLY/ASSEMBLY
[3]-1. Chuck
DISASSEMBLING
1R312
Ring 28
Rubber ring 30
Chuck cover
Release cover
Chuck ring
Spring guide
Spring guide
Compression spring 46
Tool
retainer
1. Set the machine to 1R312 or the like,
and remove Tool holder cap by prying
off with a slotted screwdriver.
2. Insert the dummy shank of 1R363 into Tool holder,
and lock it same way as you do for a real bit.
Press down Ring 28 under Ring spring 25 by turning
M8 Nut of 1R363 clockwise using a socket wrench 13,
and remove Ring spring 25 using 1R003 and 1R212.
3. Remove Ring 28, Chuck cover, Rubber ring 30,
Chuck ring and Release cover from Tool holder.
4. Remove a pair of Tool retainer by pressing down
Spring guide. Then separate Spring guides and
Compression spring 46 from Tool holder.
Dummy shank of
SDS-MAX bit
Tool holder cap
Chuck section can be disassembled as drawn in Fig. 4.
Tool holder cap
Repair
P 4/ 19
ASSEMBLING
Assemble Chuck section by reversing the disassembly procedure.
Refer to Fig. 4.
Note: It is difficult to set Tool holder cap in place by hand.
Put Tool holder cap on floor, and push Tool holder of
the machine to the cap while making use of the machine
weight.
Fig. 5
Ring 28
Ring spring 25
1R363
Socket wrench 13
1R003
1R212

Makita HR4013C Specifications

General

Chuck type	SDS Max
Product color	Black, Blue
Adjustable speed	Yes
Cord length	4 m
Input power	1100 W
Power source	AC
AC input voltage	110-240 V
Impact rate	2900 bpm
Rated speed (max)	500 RPM
Impact energy (max)	8.3 J
Sound pressure level	92 dB
Drilling diameter in steel (max)	- mm
Drilling diameter in concrete (max)	40 mm

Weight and Dimensions

Depth	479 mm
Width	112 mm
Height	263 mm
Weight	6800 g
