Makita LW1401 Technical Information

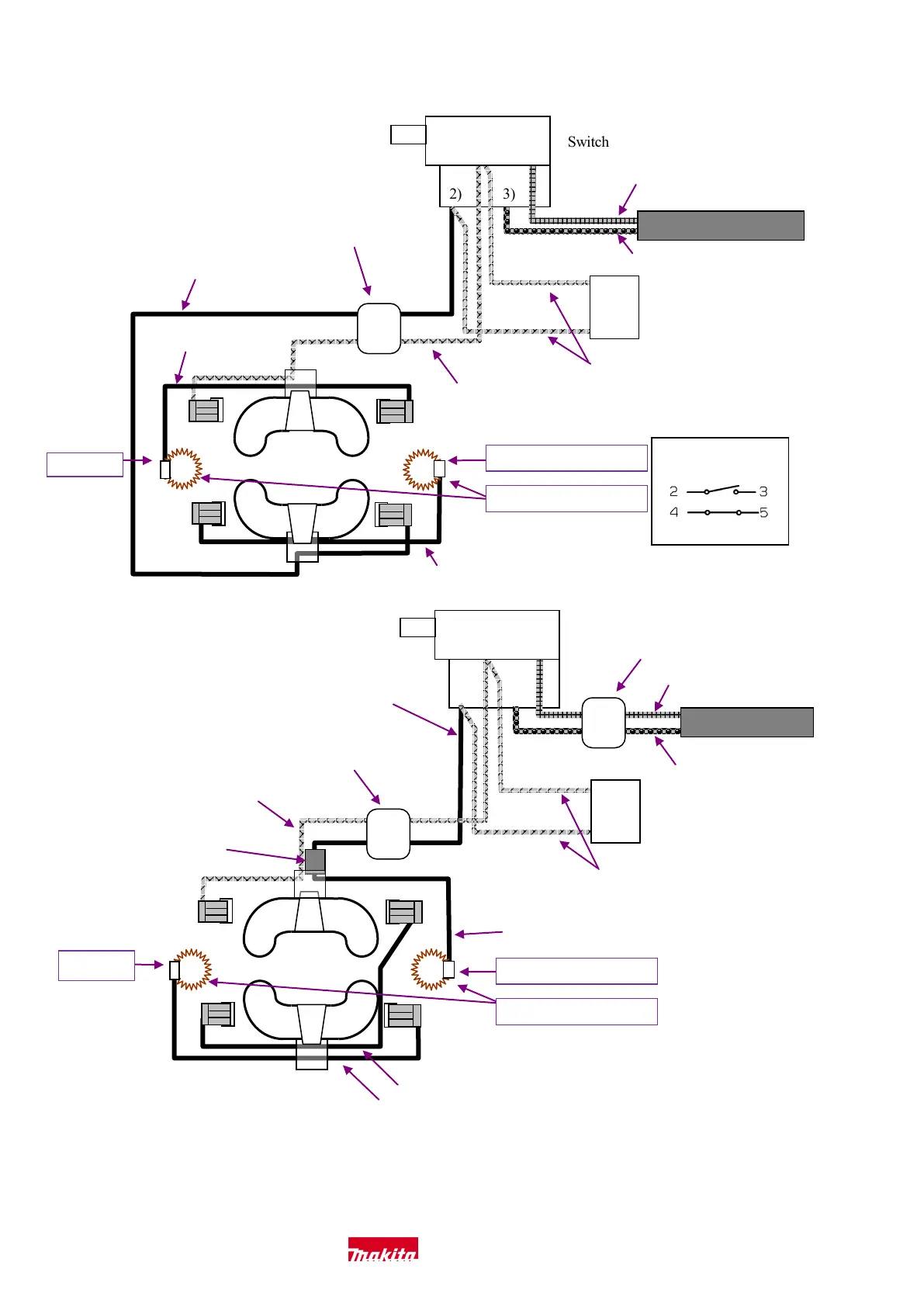

6 Circuit diagram
Switch
Field
(2)
Black/AWG16
Black/AWG16
(3)
Noise suppressor
（If it is used）
Line filter
（If it is used）
Black/AWG16
White/AWG16
(5)
(4)
Blue or white
Brown or black
White/AWG20
Field
(2)
Black/AWG16
(3)
Noise suppressor
Line filter
White/AWG16
(5)
(4)
Line filter
Black/AWG16
Choke coil
Black/AWG16
Tool head
Black/AWG16
Non-insulated connector
Blue or white
Brown or black
White/AWG20
Switch circuit
＊View from commutator side
(Except UK 110V)
Tool head
Switch
Power supply cord
Power supply cord
Rear side of tool
Non-insulated connector
Rear side of tool
Makita Corporation 13 / 15

Makita LW1401 Specifications

General

No Load Speed	3, 800 RPM
Amperage	15 A
Voltage	120 V
Blade Diameter	14 in
Cutting Capacity (Round)	127 mm
Arbor Size	1 in
Max Cutting Depth at 90°	127 mm
