7 Wiring diagram

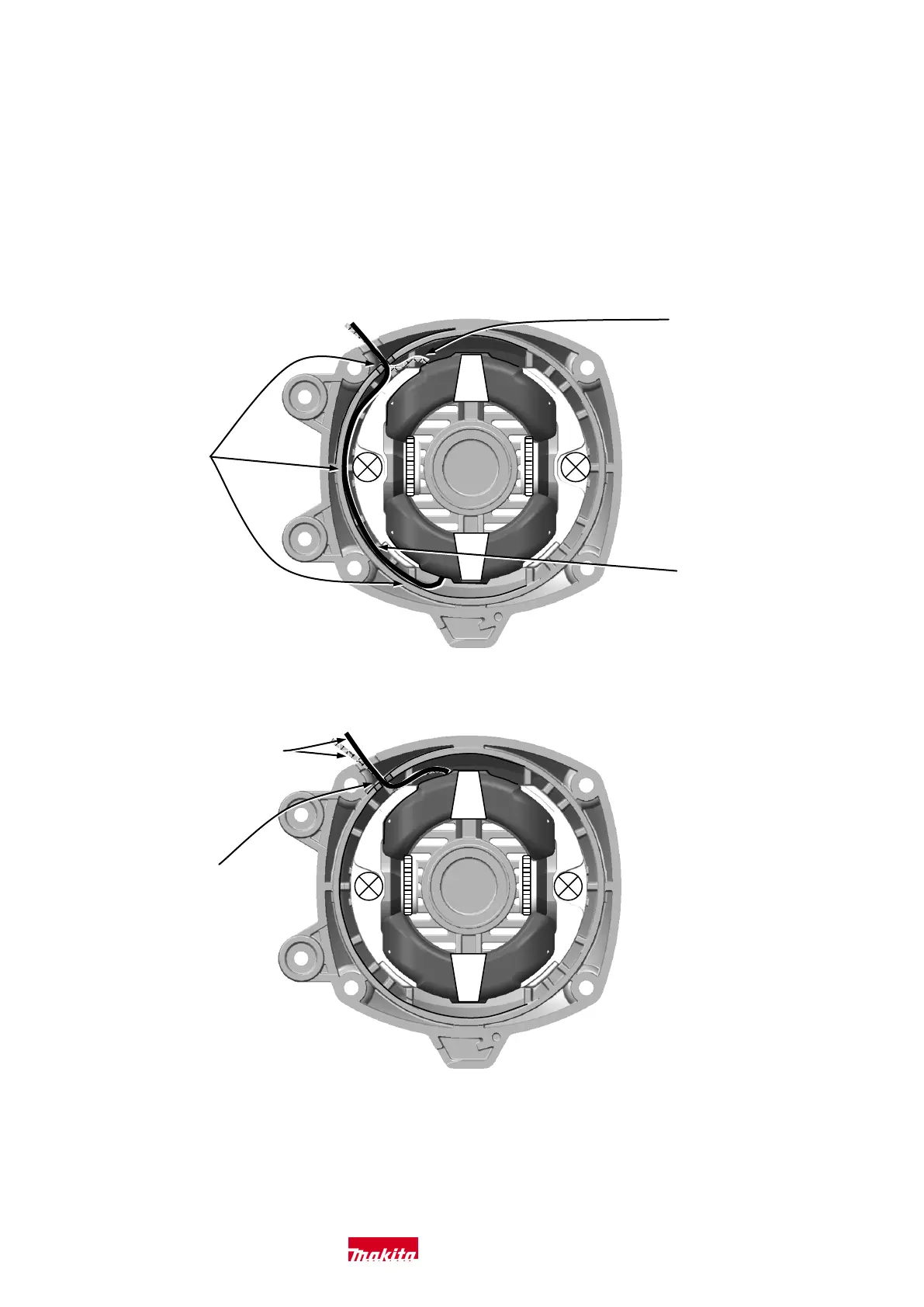

· Put Field lead wires into Lead wire holders as shown
below.
< UK 110V>
· Put Field into Motor housing as shown below.
Field lead wire
（
White
）
Lead wire holder
Field lead wire
（
Black
）
Field lead wire (Black, White)
<Except UK 110V>
Lead wire holder
