Makita LW1401 Technical Information

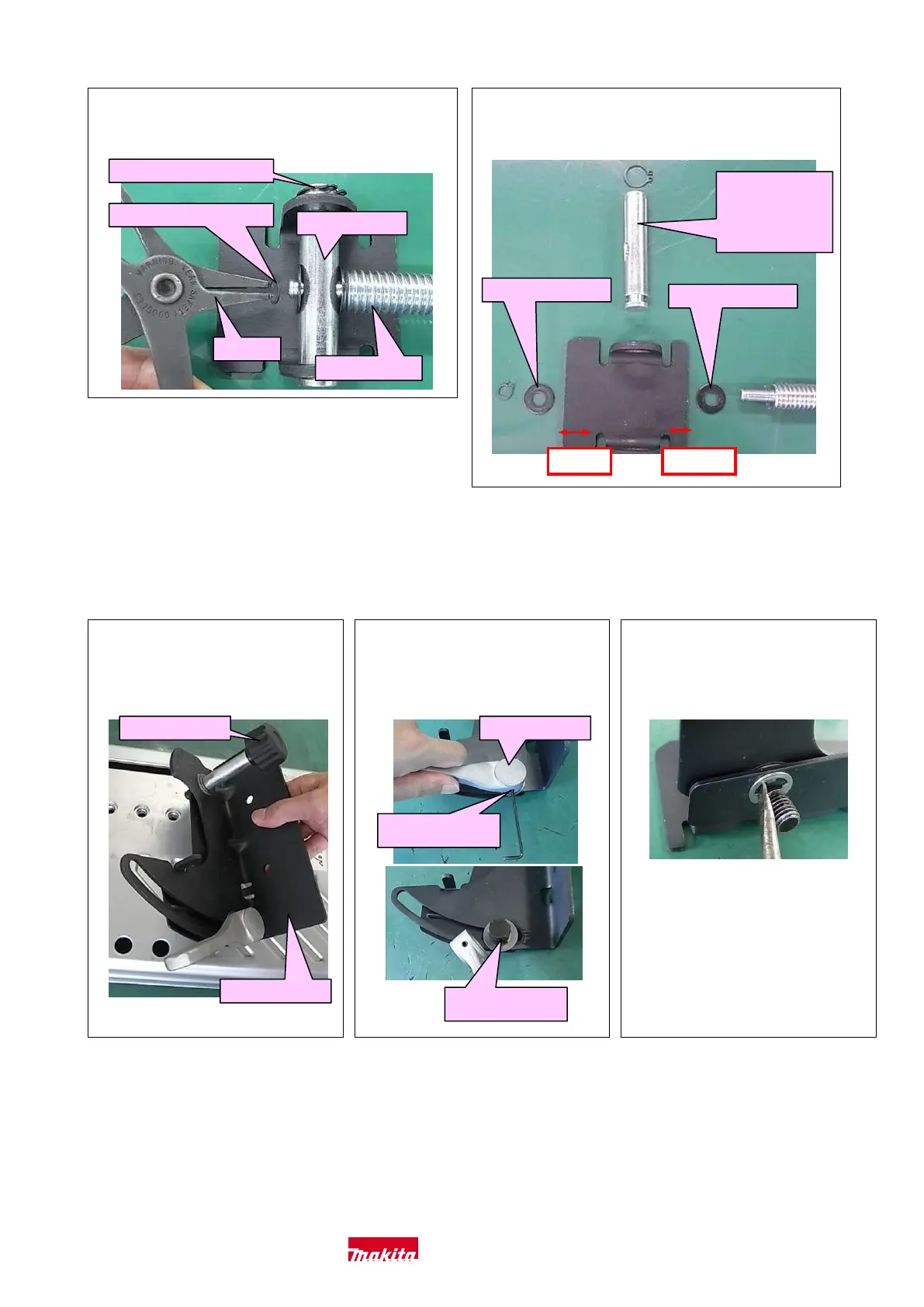

5-3-5 Guide plate
5-3-5-1 Disassembling (LW1400’s case)
Fig. 5-1
1) Loosen Knob 40 (72) and then
remove Guide plate (73) from
Base (86).
Fig. 4-5
5) Remove Retaining ring S-8 (87) and Retaining ring
S-16 (90) with 1R291.
Retaining ring S-16 (90)
Retaining ring S-8 (87)
1R291
Pin 16 (89)
Vise plate (92)
Fig. 4-6
6) The components of Vise ass’y (119) is as follows.
Note: Be careful of the direction for each part.
wide
narrow
Pin 16 (89) has
to be assembled
as shown in the
figure on the
left.
Flat washer 8 (88)
Flat washer 8 (91)
Knob 40 (72)
Fig. 5-2
2) Remove Lever 125 (101) by
loosening M5x6 H.S.Set screw
(100). Then remove M10x20
Collar bolt (71).
M5x6 H.S.Set
screw (100)
M10x20 Collar
bolt (71)
Fig. 5-3
3) Remove Stop ring E-8 (110) with
a slotted screwdriver like turning
and prying it.
Note: Be sure not to lose Stop ring.
Guide plate (73)
Lever 125 (101)
Makita Corporation 9 / 15

Makita LW1401 Specifications

General

No Load Speed	3, 800 RPM
Amperage	15 A
Voltage	120 V
Blade Diameter	14 in
Cutting Capacity (Round)	127 mm
Arbor Size	1 in
Max Cutting Depth at 90°	127 mm
