13 3

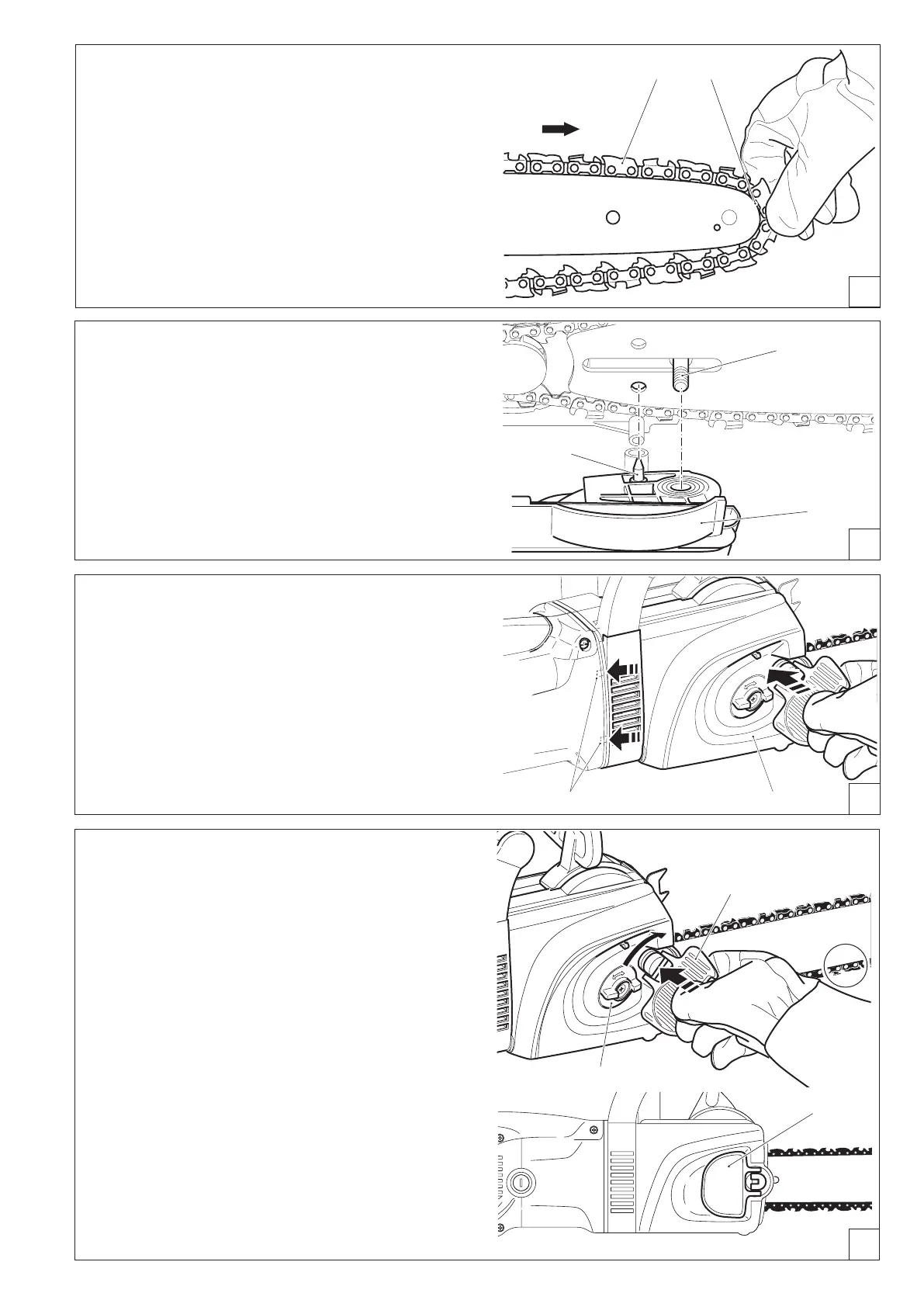

Line up the hole in the sprocket guard with the threaded pin

(11).

Turn the chain tensioning screw (H/14) to align the chain ten-

sioning pin (12) with the hole in the guide bar.

Using your left hand, lightly press the guide bar against the

holder on the housing and guide the saw chain (9) around the

nose sprocket (10) on the guide bar. While doing this, pull the

saw chain slightly in the direction shown by the arrow.

Tightening the saw chain

Firmly push in and simultaneously turn the sprocket guard

quick tightener (2, clockwise) in order to screw on the sprocket

guard (3), but do not tighten it yet.

Lift the tip of the guide bar slightly and turn the chain tensioner

(14) clockwise until the saw chain engages in the guide groove

on the lower side of the guide bar (see the circle).

Push in the sprocket guard quick tightener (2) again and tight-

en by turning clockwise.

Release the sprocket guard quick tightener (2) (remove pres-

sure) until it turns freely, then fold it in as shown in the illustra-

tion.

9 10

First press the sprocket guard (3) into the mounting (13) and

then push it onto the threaded pin (F/11).
