Sharpening the saw chain
When working on the saw chain you must always pull out
the power supply plug and wear protective gloves.
The chain needs sharpening when:
- the sawdust from sawing humid wood looks like wood
our.
- the saw chain penetrates the wood only under great pres
-
sure.
- the cutting edge is visibly damaged.
- the sawing device is pulled to the left or the right during the
sawing operation. This is caused by uneven sharpening of
the chain or by damage to one side of it.
Important: Sharpen frequently, but without removing
too much metal!
Generally,2-3strokesofthelewillbeenough.
Have the chain resharpened in a service center when you
have sharpened it yourself several times.

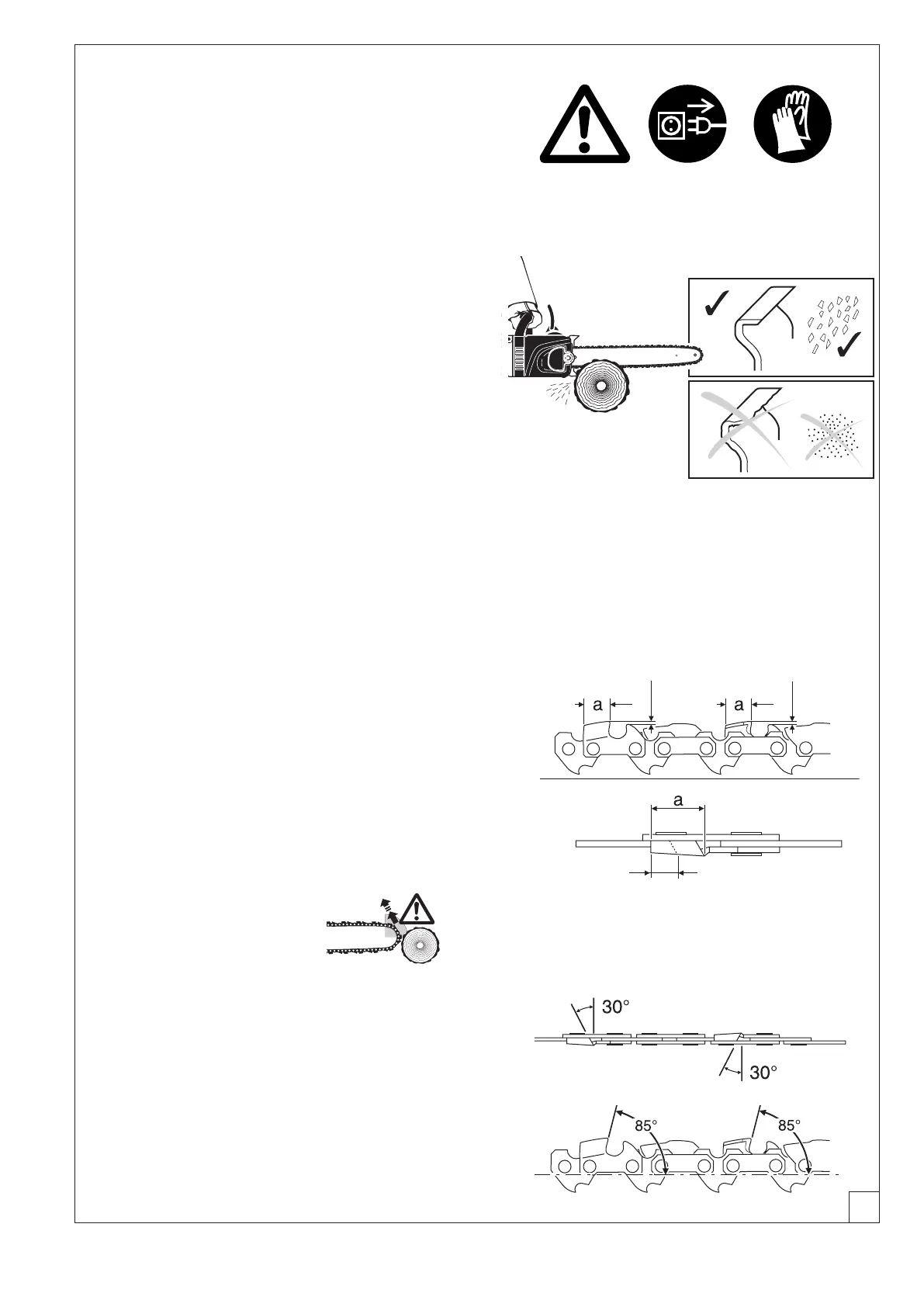

Proper sharpening:
CAUTION:
Use only chains and guide bars designed for this saw (see
the Extract from the spare-parts list)!
- All cutters must be of the same length (dimension a). Cutters
with different lengths result in rough running of the chain and
can cause cracks in the chain.
- Minimum cutter length is 3 mm (0.11"). Do not resharpen the
chain when the minimum cutter length has been reached;
at this point, the chain must be replaced (see the Extract
from the spare-parts list and "Replacing the chain").
- The depth of the cut is determined by the difference in height
between the depth limiter (round nose) and the cutting
edge.
- The best results are obtained with a depth-limiter depth of
0.64 mm (.025").
CAUTION:
Excessive depth increases the
risk of kickback!
- All cutters must be sharpened to the same angle, 30°. Dif
-
ferent angles result in a roughly, irregularly running chain,
increase wear and tear and cause chain beakage.
- The 85° front rake of the cutter results from the cut depth of
theroundle.Iftheproperleisusedintherightmanner,
the correct front rake will be obtained automatically.
0,64 mm
(.025")
0,64 mm
(.025")
