9
Figure:IdenticationplateUC4530A
Serial number
Year of manufacture
Indicate when ordering spare parts!

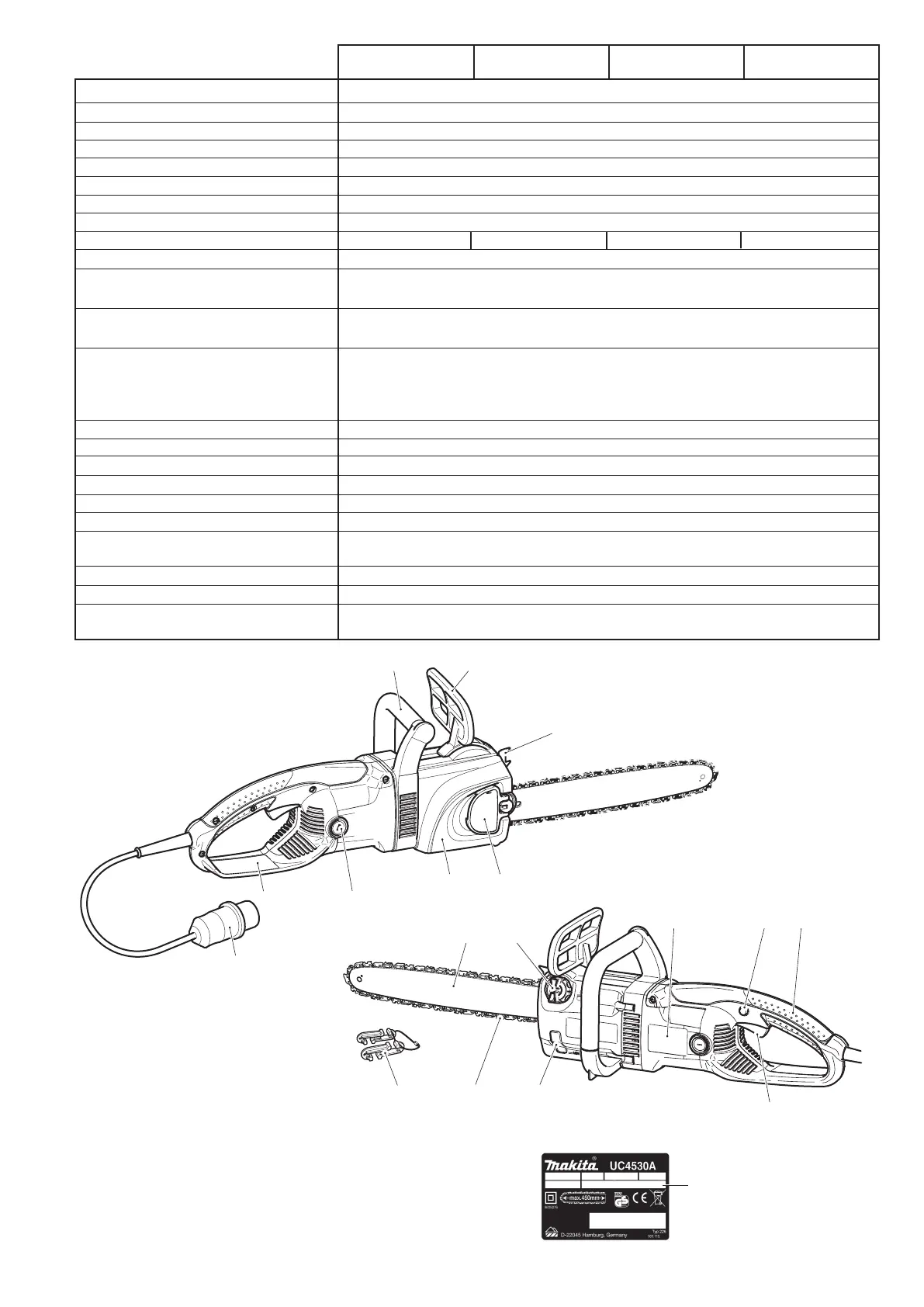

Technical data
UC3030A UC3530A / AP UC4030A / AP UC4530A
Power consumption Watt 1570
Nominal voltage V 110 ~
Mains frequency Hz 50 - 60
Nominal current A 15
Fuse, electric circuit A 16
Cable length cm 1000
Chain type 092
Chain pitch inch 3/8"
Length of a cut cm 30 35 40 45
Max. chain speed m/s 13,3
Sound power level
L
WA av
dB (A) 101,8
per EN 60745-2-13
Sound pressure level L
pA av
dB (A) 90,8
at the workplace per EN 60745-2-13
Vibration acceleration
a
h,w av
per EN 60745-2-13
- Tubular handle m/s
2
4,7
- Rear handle m/s
2
5,6
Oil pump
automatic
Oil tank capacity ml 140
Power transmission
direct
Overload protection electrical
Chain brake manual or automatic
Run-out brake electrical
Weight kg 4,4
(without bar/chain)
Radio interference suppression / EMC Per EMC guidelines EWG 89/336 and EWG 92/31
Protective case class II (double protective insulation)
Extension cable DIN 57282/ HO 7RN-F
(not included) L= 30 m max., 3x1,5 mm
2
Denomination of components
1 Tubular handle
2 Hand guard (release for chain brake)
3 Spike bar
4 Sprocket guard quick tightener
5 Sprocket guard, chain brake
6 Carbon brush cover
7 Back hand guard
8
Power cord with plug
9 Guide bar
10 Oil tank cap
11 Identicationplate
12 Locking button
13
Rear handle
14 Power switch
15 Sightglass for oil level
16 Saw chain
17 Cord grip for electric cord (pull relief)
110V~ 15A 50-60Hz 1570W
13.3m/s
1
9 10
11 12 13
2
3
45
14
151617
67
8
