Replacing cylinder liners
112
Removing cylinder liners
Note:
Observe oversizes for cylinder liner outer
diameters and collar heights
(see ”Engineering S Data S Setting values”).
D Remove cylinder head
D Remove piston

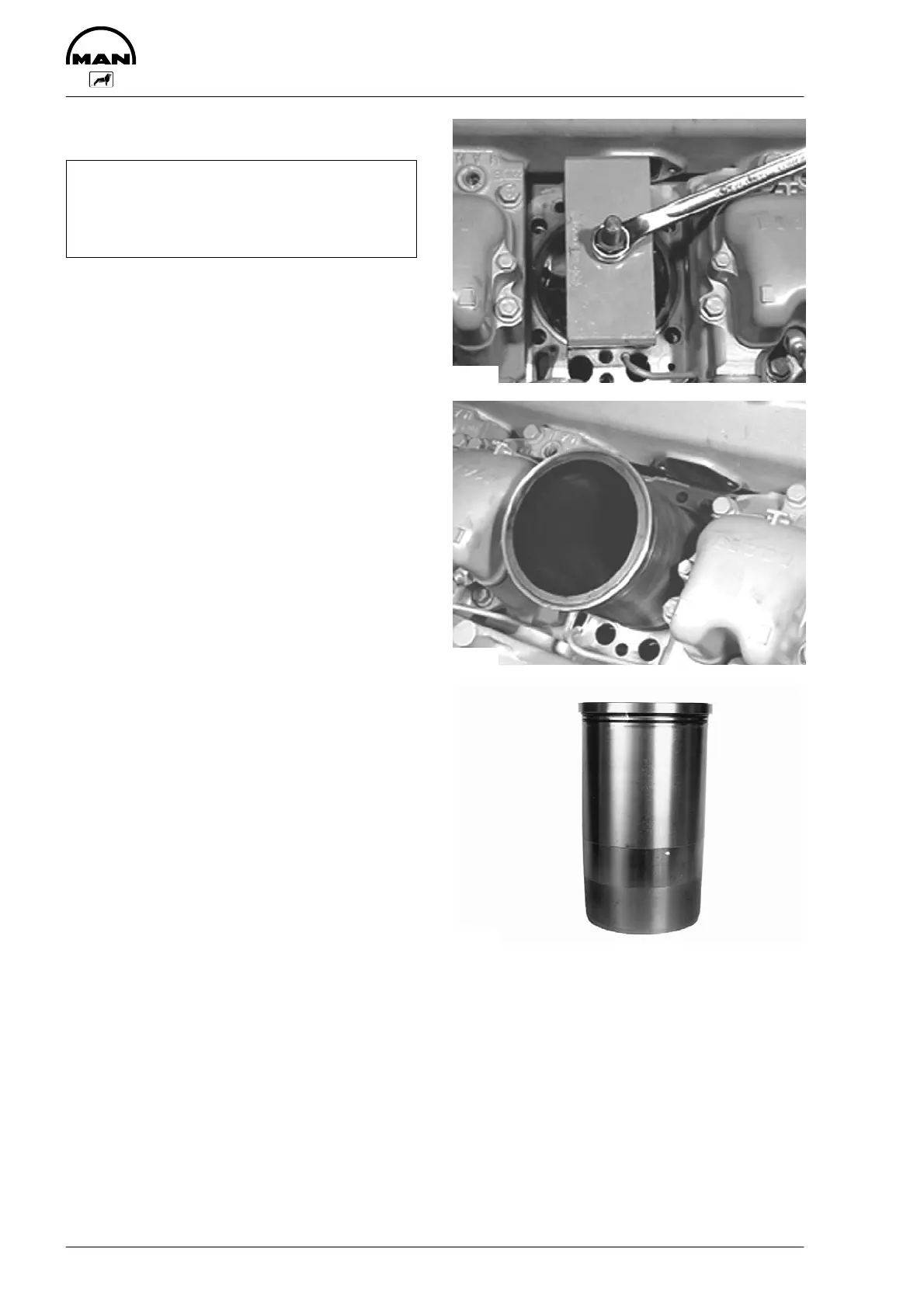

Fig. 1
Mark cylinder liner position relative to engine so
that it can be reinstalled in the same position if re-
used.
Insert cylinder liner extractor device into cylinder
liner, taking care not to damage the oil spray
nozzle.
Put support on extractor spindle and tighten nut.
Hold extractor spindle in place and extract cylinder
liner by turning nut.
Fig. 2
Take off extractor device and take out cylinder
liner.
Fig. 3
Deposit cylinder liner upright. Take off O-rings.
Number cylinder liners in order of installation.
3570
3571
3065
