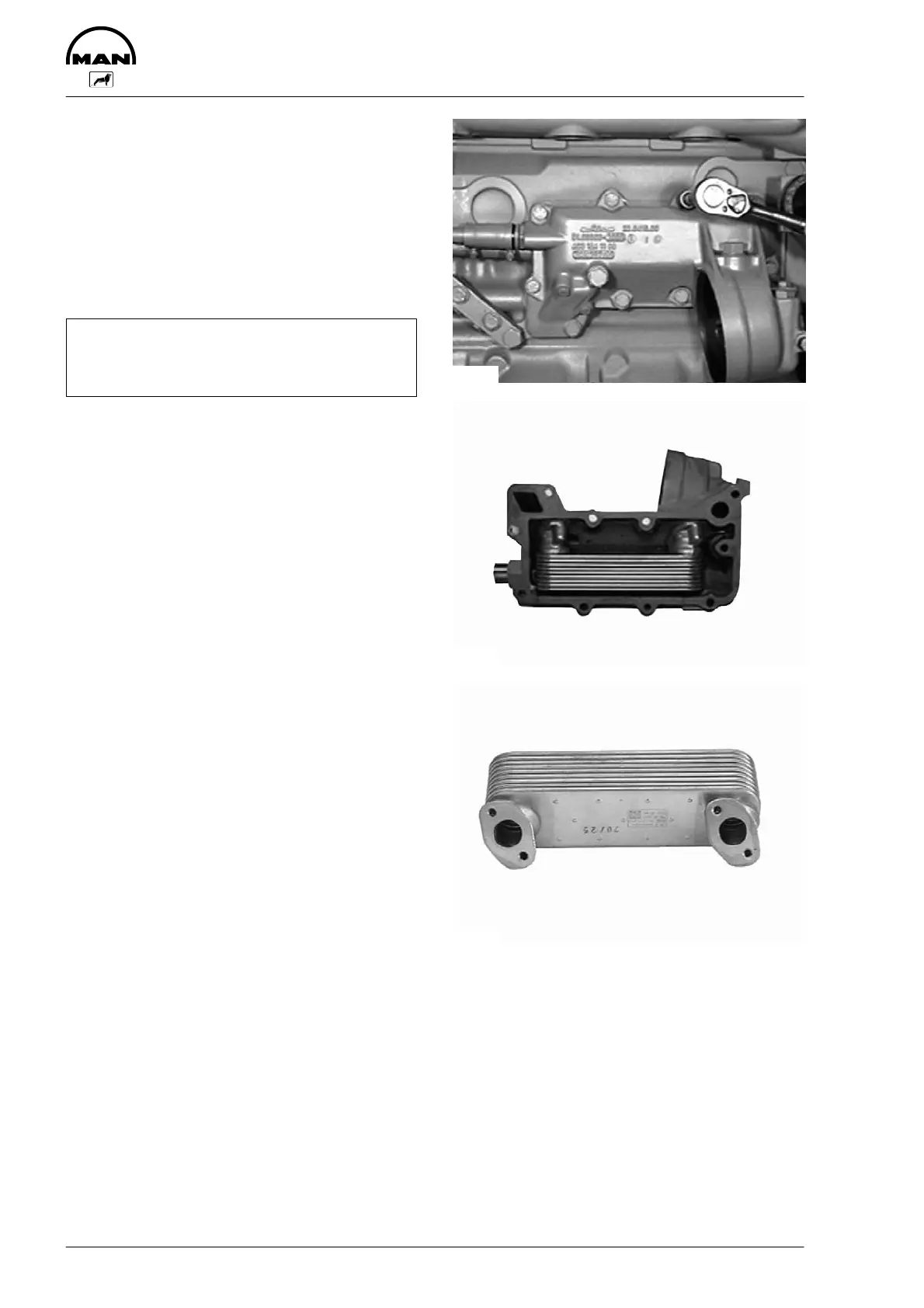

Removing and installing oil cooler
52
D Drain engine oil
D Drain coolant, see page 37.
D Remove oil filter, see page 51.
Fig. 1
Remove hose clamp on the coolant outlet pipe
leading from the oil cooler housing.
Remove the mounting bolts from the oil cooler
housing (17 mm).
Note:
Do not remove the four 13 mm mounting
bolts. They keep the oil cooler in place.
Fig. 2
Take off oil cooler housing together with oil cooler.
Remove oil cooler from housing (13 mm).
Fig. 3
Check oil cooler for damage, changing it if neces-
sary. Fit oil cooler with new gaskets.
Fit oil filter with new gasket. Fill up with engine oil
and coolant.
3450
3451
3452
