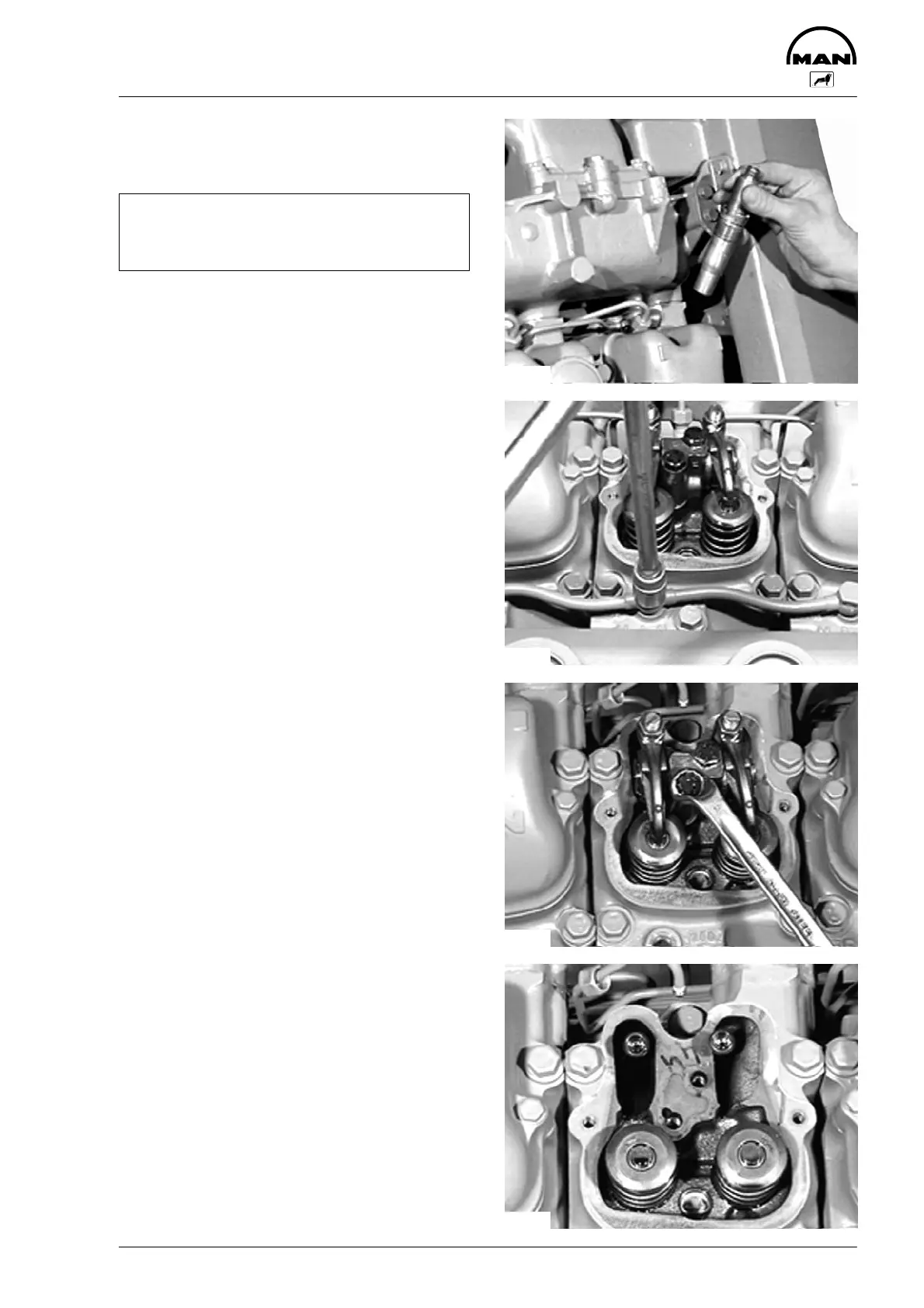

Removing and installing cylinder head
79
Removing cylinder head
D Drain coolant, see page 37
Note:
The intake and exhaust pipes need not be
detached for removing the cylinder head.
Fig. 1
Remove the injection nozzles, see page 30.
Take off the cylinder head covers (13 mm).
Fig. 2
Remove the coolant bleed pipe.
Fig. 3
Back off valve adjusting screws.
Loosen mounting bolts of rocker arm bracket
(17mm).
Fig. 4
Remove rocker arm bracket.
3406
3513
3514
3515
