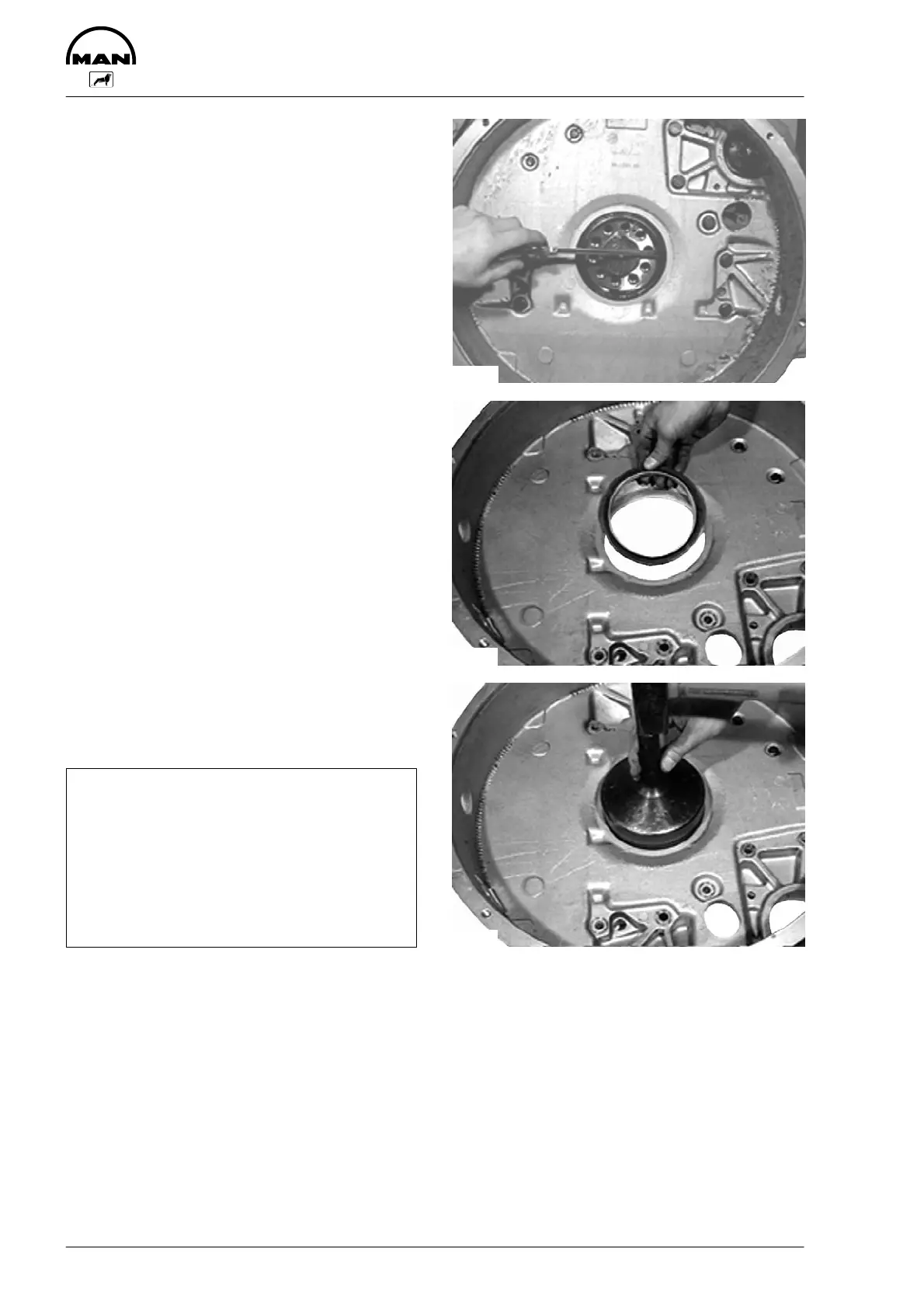

Removing and installing crankshaft seal
(flywheel end)
64
D Remove flywheel, see page 62
Removing crankshaft seal
Fig. 1
Use a screwdriver to prise seal out of the timing
case.
Installing crankshaft seal
Fig. 2
Insert new shaft seal into the flywheel housing.
Fig. 3
Drive in seal with mandrel (special tool, see
page 127, item 12) until flush.
The pressing mandrel consists of two parts.
Observe remarks and installation notes on
page 66.
Note:
The pictures show the installation of the
shaft seal with the flywheel housing re-
moved. It is also possible to install the seal
when the flywheel housing is attached.
To do this, place the guide ring of the
press–in mandrel on the crankshaft before
pressing in the shaft seal.
3472
3473
3474
