3-19
D  EVERY 500 HOURS OF OPERATION
Perform the operations described above as well as the following operations.

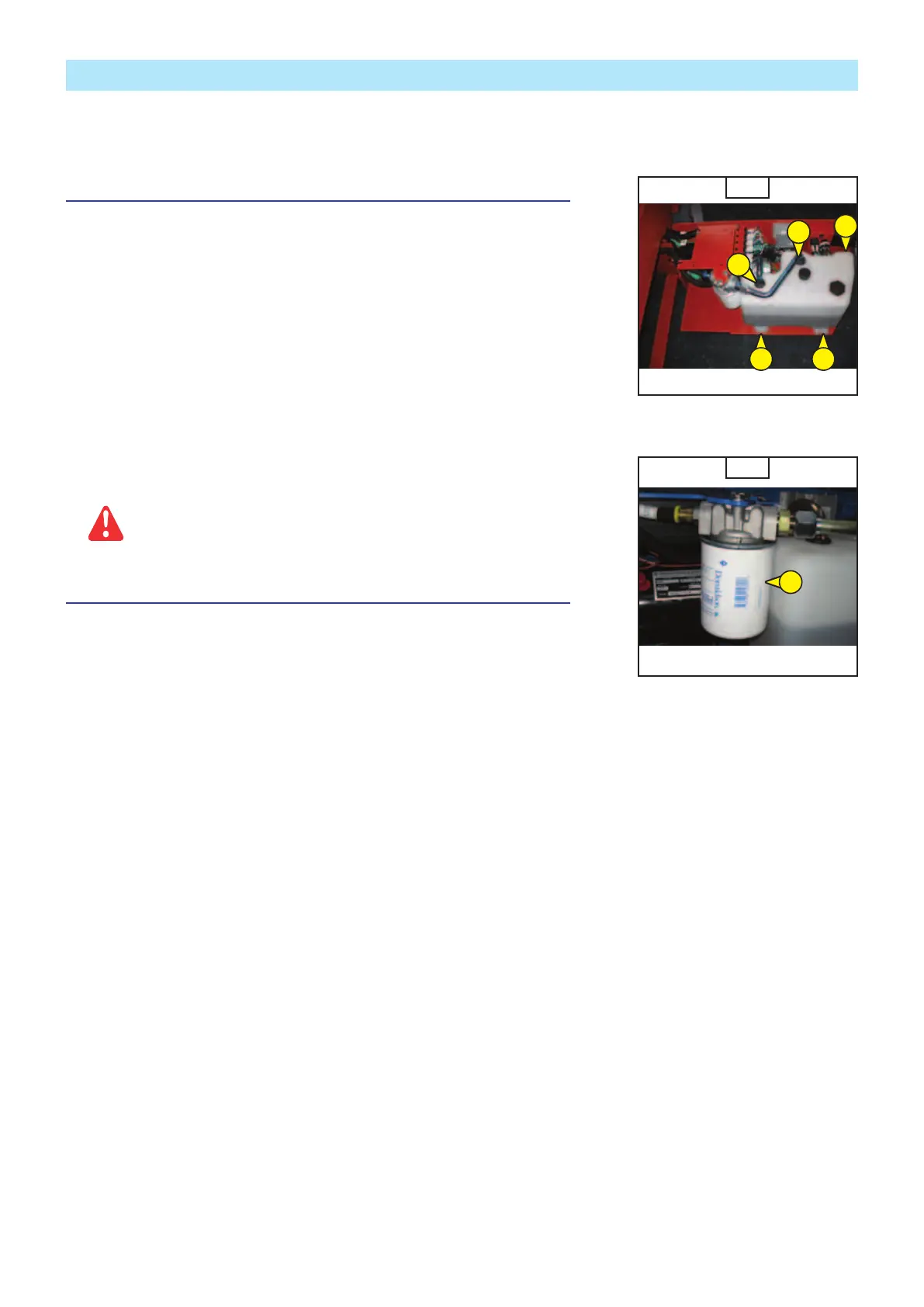

D1 - Hydraulic oil
DRAIN  REPLACE
- Before draining the reservoir, the lifting platform must be set to transport position.
- Open the hydraulics box located on the side of the base console.
- Identify and then disconnect the hydraulic filter hose 1 (Fig. D1) from the hydraulic
reservoir.
- Identify and then disconnect the hydraulic pump inlet hose 2 (Fig. D1).
- Remove the hydraulic reservoir after unscrewing its fasteners 3 (Fig. D1).
- Drain away all the oil into an appropriate container.
- Clean away the residual oil.
- Clean the interior of the hydraulic reservoir, using a gentle solvent.
- Leave the reservoir to dry completely.
- Place the hydraulic reservoir in its housing and then fasten the hoses onto the
reservoir.
- Fill the hydraulic oil reservoir as full as possible
- Perform a lifting movement to fill the hydraulic system.
The pump can be damaged if it runs without oil
D2 - Hydraulic oil filter cartridge
DRAIN  REPLACE
- Locate the return filter in the compartment in the hydraulics box 1 (Fig. D2).
- Clean the filter environment before removing it
- Loosen the filter cartridge
- Apply to the filter seal before installing it in its housing.
- Firmly tighten the filter by hand.
- Use a permanent ink marker to write the date and the number of operating hours on the
filter.
- Raise the scissors before inspecting the filter and the attached components to ensure that
there are no leaks.
- Clean away the residual oil.
D1
2
1
3
3
3
D2
1
647369 (01/03/2017) 78/100 SEC 2 / 120 SE 2
