SETUP AND INSTALLATION 999 LUFFING JIB OPERATOR MANUAL
4-10
Published 05-15-17, Control # 043-09

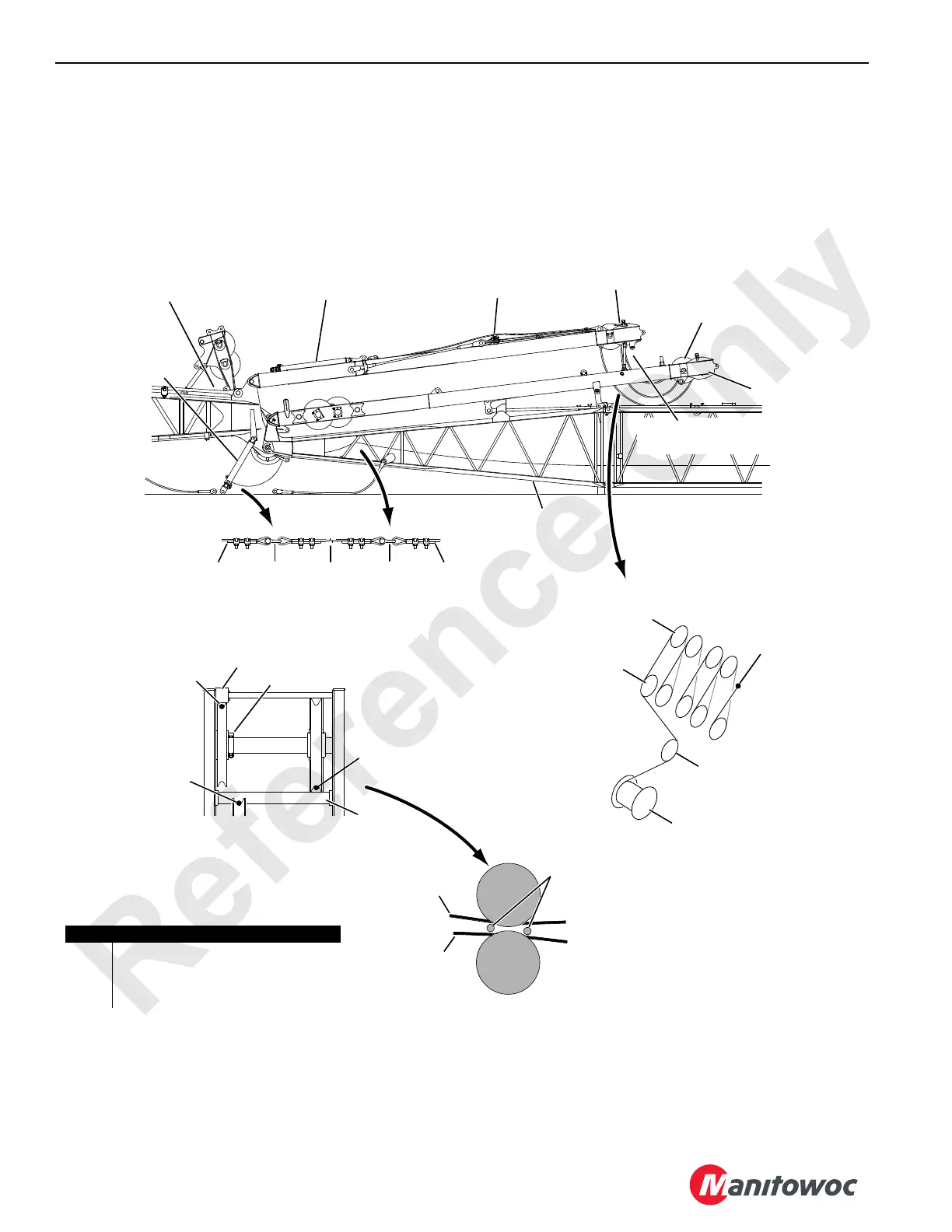

FIGURE 4-6
Item Description
1 Control Cable (from Hand Winch)
2 Cable Extension (stored in Butt)
3 Control Cable (stored on Strut)
4 Shackle
VIEW C
Rear View of Boom Butt
Wire Rope Guide
A872
Load Line from
Front Drum Here for
Main Strut Raising Only
Rope Guide
Roller
Clamp
Luffing Hoist
Wire Rope
from Rear Drum
Load Line from Front
Drum Here for
Load Handling
Guide
Roller
VIEW D
9-Part
Luffing Hoist
Reeving
Jib
Strut
Main
Strut
Dead-End
Wedge Socket
for 1 in (26 mm)
Wire Rope
Boom Butt
Wire Rope Guide
A1204
Guide
Rollers
Luffing Hoist
Wire Rope
Load Line
Rear Drum
Over Wound
VIEW A
Jib Stop
Strut Assembly
Jib
Butt
Dead-End Wedge Socket
for 1 in (26 mm) Wire Rope
Near Side
Route Luffing Hoist
Wire Rope Around
Right Side of Boom Top
Wire Rope Guide
Route Luffing Hoist
Wire Rope Between Main
Strut Stop Tubes Guide
Route Luffing Hoist
Wire Rope Over Main
Strut Spreader Bar
Main
Strut
Jib
Strut
Make Sure Wire Rope is
on Butt Side of Roller
14
4
2
3
VIEW B
