LUBRICATION PROCEDURE AND CHARTS OPERATOR MANUAL 600E2
5-4 PUBLISHED 04-26-2019 CONTROL # 113-09

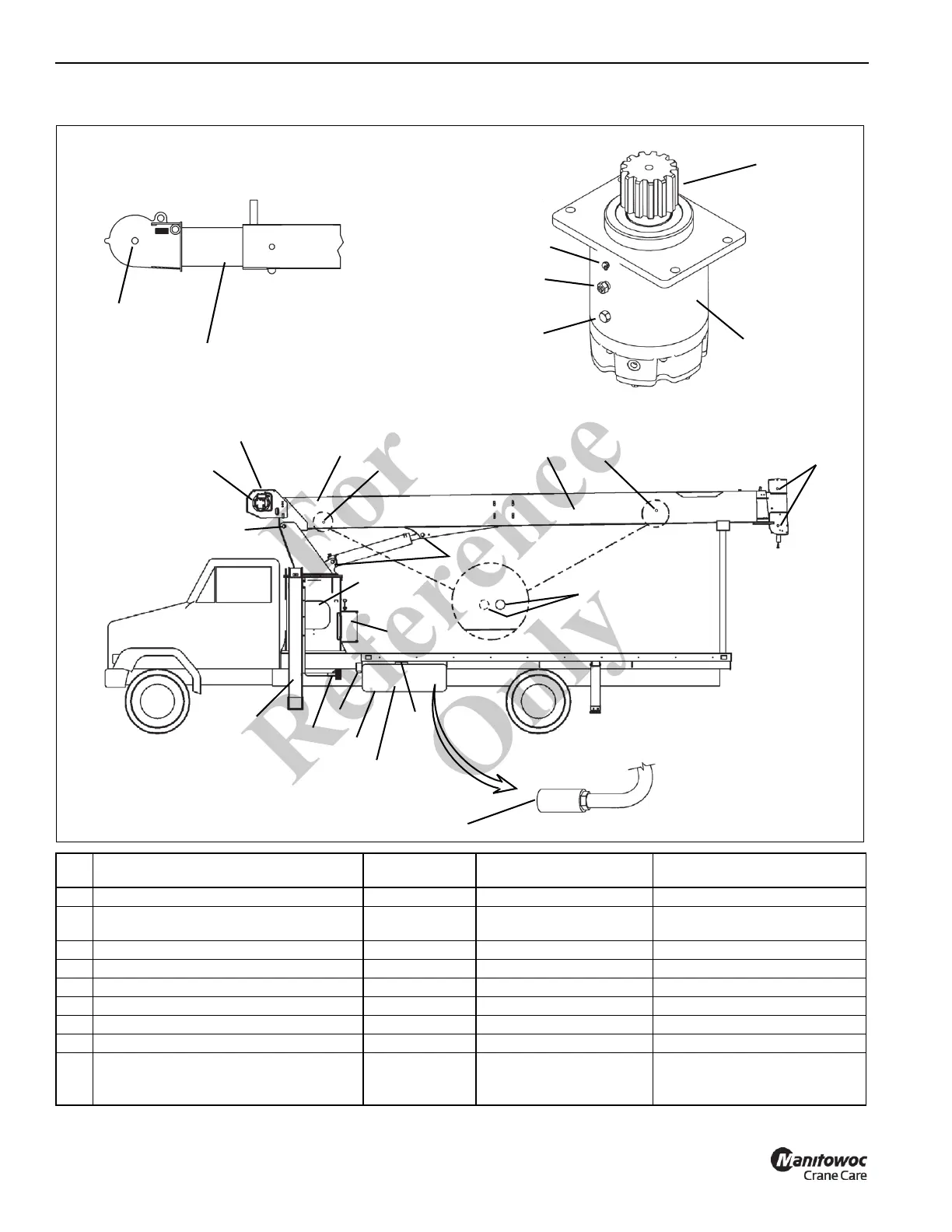

Lubrication Chart
Item Application
Recommended
Lubricant
Procedure Frequency
1 Hydraulic oil reservoir HYDO Check fill change Weekly, semi-annually, as required
2 Oil filter, magnetic plug, hydraulic oil reservoir Change or clean
After first 40 hrs. as indicated by
gauge thereafter.
3 Breather, hydraulic oil reservoir Clean Monthly
4 Sheave pins: boom (3 plcs), extension (1 pl) EP-MPG Grease gun Weekly
5 Wire rope (loadline) EP-OGL Brush or spray Semi-Annually
6 Boom pivot pin EP-MPG Grease gun Monthly
7 Lift cylinder pins - 2 ea. EP-MPG Grease gun Monthly
8 Swing bearing (turret) (not shown) EP-MPG Grease gun Weekly
9a Pump drive U-Joint 2 ea. EP-MPG Grease gun Monthly
9b Pump spline shaft (direct mount) EP-MPG
Remove pump and apply to
shaft or grease gun
Semi-Annually
4
14
4
19
16
20
18
5
10a
10b
6
23
11
7
19
20
21
3
2
9a
9b
15
NOTE: Torque diffuser to
51 lb-ft (69 Nm). Openings
must face bottom of tank.
1
22
Oil Fill/Breather
13
18
Oil Drain
12
