6. Motor drive
6.1 Motor connection
The electrical connection for the motor drive and/or control system connection is to be carried out according to the
instructions of the manufacturer of the motor and control system. Modications, especially concerning the motor,
the control system and the connecting supply lines require authorisation in writing.
The installation and adjustion instructions are to be observed. They can be found at the motor cable or accompany
the awning. RTS motors carry an additional note on setting the motor at the motor cable. The inbuilt motor switches
off on reaching a rated performance for the upper limit position (reduced torque auto-stop function).
Attention! The lower limit position has to be adjusted in accordance with the motor instructions for a
standard motor (stop on reaching a particular awning position: point stop). This setting is not set in the
factory.
The lower limit position is preset for RTS motors.
Instructions for further electric components are inside the belonging package.
Attention!
The rolling up of the fabric on the fabric roller from below
during retraction could lead to damage to the awning. Should
you need to change the end stops, it is indispensable to pay
attention to the sense of rotation!

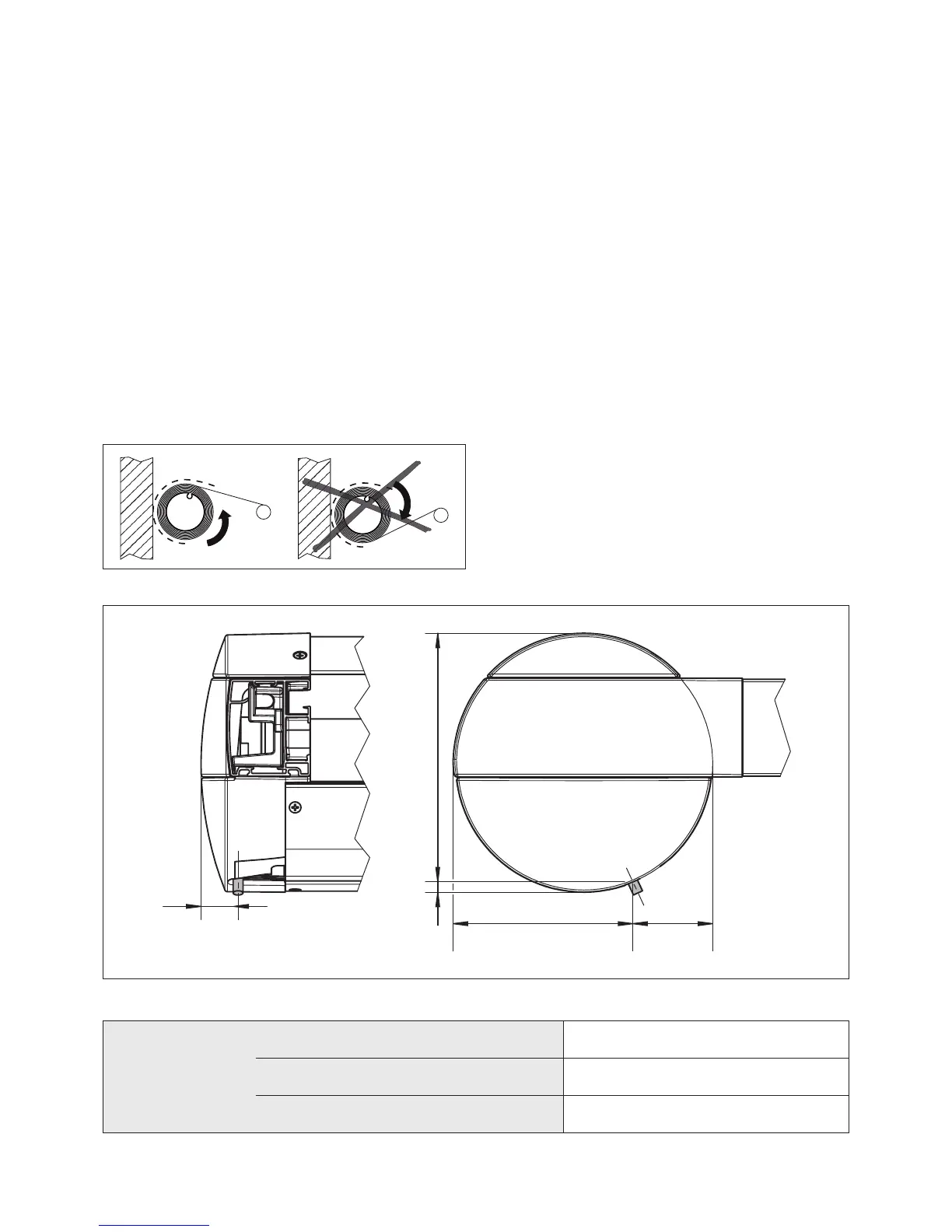

Sense of rotation during retraction:
6.2 Motor connection data markilux 8800 / 8800 tracx
180 8
130 58
26
Cable outlet for motor operation:
markilux 8800 / 8800
tracx
wireless (433 MHz) U = 230 V~ / 240 W, 50 Hz, I = 1.0 A
with radio IO technology (868 - 870 MHz) U = 230 V~ / 240 W, 50 Hz, I = 1.1 A
wired U = 230 V~ / 246 W, 50 Hz, I = 1.2 A
measurements in mm
