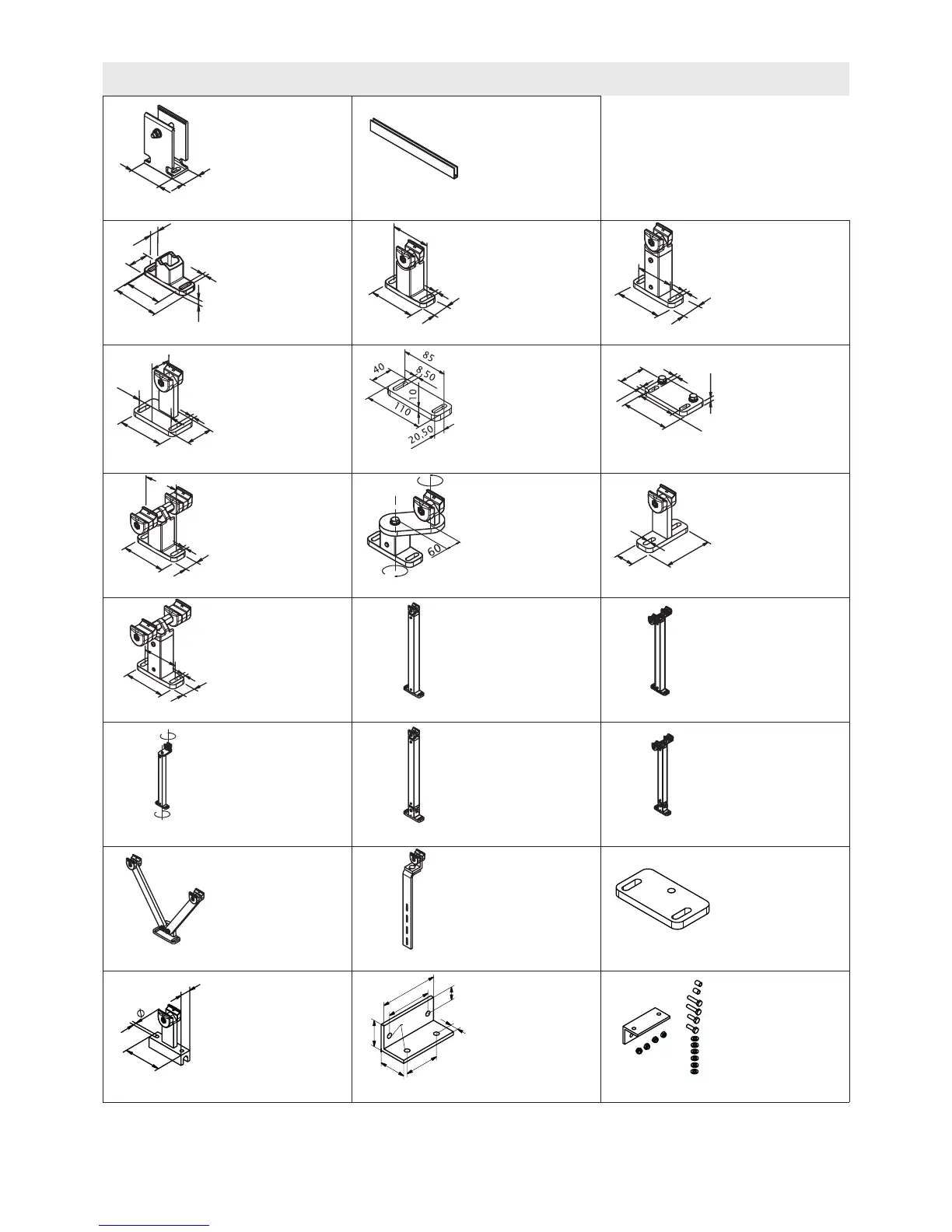

Track bracket assembly for
track xture, rigid
track bracket assembly for
track xture
refer to section "Installation
dimensions"
available by the metre,
undrilled
max. length 6 m
76017. 76013.
9
85
110
40
20
10
Fixture dimensions of adjus-
table top track brackets
9
110
40
85
Track bracket assembly with
adjustable head
9
110
40
85
Track bracket assembly with
adjustable head
Höhe 100 mm height 140 mm
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
76046. 76048.
9
60
45
85
110
Track bracket assembly with
adjustable foot plate
spacer plate for track bracket
60
110
9
85
10
8,5
adjustable foot plate for track
bracket assembly
Höhe 100 mm 110 x 40 x 10 mm
refer to section "Installation
dimensions"
76199. 78570. 78165.
9
85
40
110
Double track bracket assembly
with adjustable head
Universal track bracket
assembly
9
40
110
Track bracket assembly for
transom xture
Höhe 100 mm Höhe 100 mm Höhe 100 mm
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
76191. 76054. 76055.
9
85
40
110
Double track bracket assembly
with adjustable head
Track bracket assembly with
adjustable head
Double track bracket assembly
with adjustable head
height 140 mm height 100 - 500 mm height 100 - 500 mm
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
76192. 76047. 76193.
Universal track bracket
assembly
Track bracket assembly with
adjustable head and foot
Double track bracket assembly
with adjustable head and foot
height 140 - 500 mm height 200 - 500 mm height 200 - 500 mm
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
76053. 76045. 76194.
vario-V bracket assembly for
track xture
Flat bracket assembly for
lateral track xture with adjus-
table head
Retaining plate
refer to section "Installation
dimensions"
refer to section "Installation
dimensions"
110 x 60 mm
76052. 76049. 78158.
30
110
9
Track bracket assembly for
track xture directly on the
conservatory rafters
110
50
85
65
50
15
25
Ø
9
Mounting bracket
without mounting screws
Mounting bracket assembly
76099. Mounting bracket
incl. mounting screws as an
addition to xture type 32
76735. 76098. 76099.
