Transport position
Used for transporting implements on the three-point
hitch in the fully raised position.
Lever positions:
Draft Control Lever, (1,Fig. 62) in the fully UP position.
Position Control Lever (2), placed in the TRANSPORT
position against the stop. This will lift the linkage and
implement and hold in the raised position.
Constant pumping - Blue sector
The constant pumping position provides a flow of
hydraulic oil at 16,7 liter/min, controlled by the Draft
Control lever. It can be used to perform the following
functions:
*A single hydraulic quick release coupling at the
rear of the tractor for tipping trailers.
*Simple front end loader with single acting operation
worked off the rear quick release coupling.
*Low input hydraulic motors connected to the quick
release coupling.
*Auxiliary hydraulic valve kit comprising of a selector
valve to be installed on the lift cover, hydraulic
control valve and quick release couplings:
0019019U91 Two spool kit complete.
Additional height for the lift arms to latch and unlatch
an automatic trailer hitch.
Auxiliary control valve (tractors with linkage
pump only)
For operation of the auxiliary control valve the
hydraulic lift controls must be set as follows:
Lever positions:
Draft Control (1,Fig. 63), fully UP.
Move Position Control lever (2) to raise the links to
the required height.
Selector Control (4), external position - lever
backwards. This will automatically select CONSTANT
PUMPING.
Move the Position Control lever (2) to the
TRANSPORT position (Blue sector).
Response Control, not applicable.
Operation:
Return the Selector Control lever (4) to the LINKAGE
position - forwards - to operate the linkage.
Auxiliary hydraulic valves
1. Carefully connect the implement hydraulic hoses
to the tractor couplers.
2. Place the three-point hitch in the desired position.
3. Rotate the selector valve to the auxiliary position.
4. Set the Position Control lever to CONSTANT
PUMPING.
5. Raise and lower the implement using fender
mounted auxiliary valve.
To resume three-point operation:
1. Move the position control lever out of constant
pumping to DOWN.
2. Return selector valve to three-point hitch position.

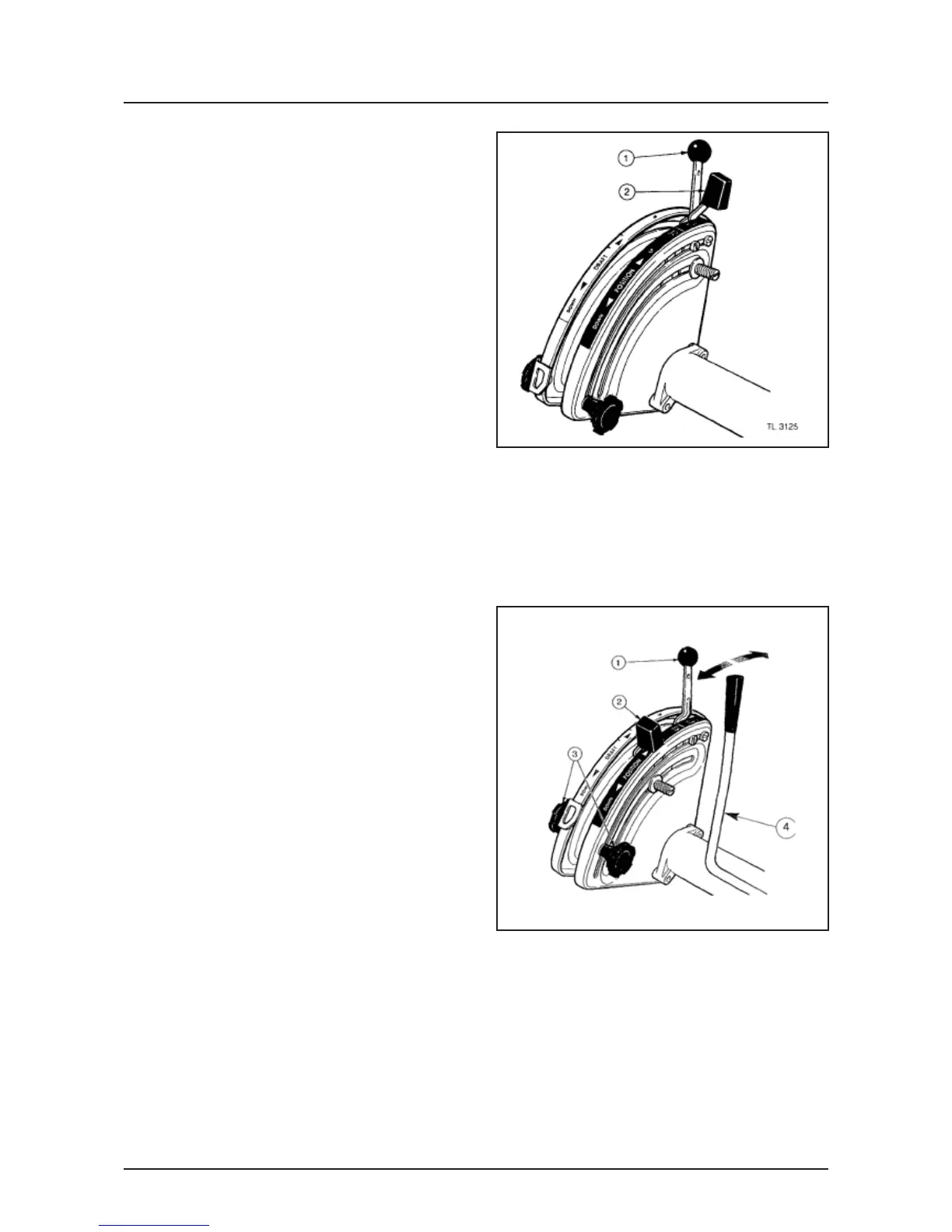

Fig. 62
Fig. 63
