CHAPTER 8: TROUBLESHOOTING

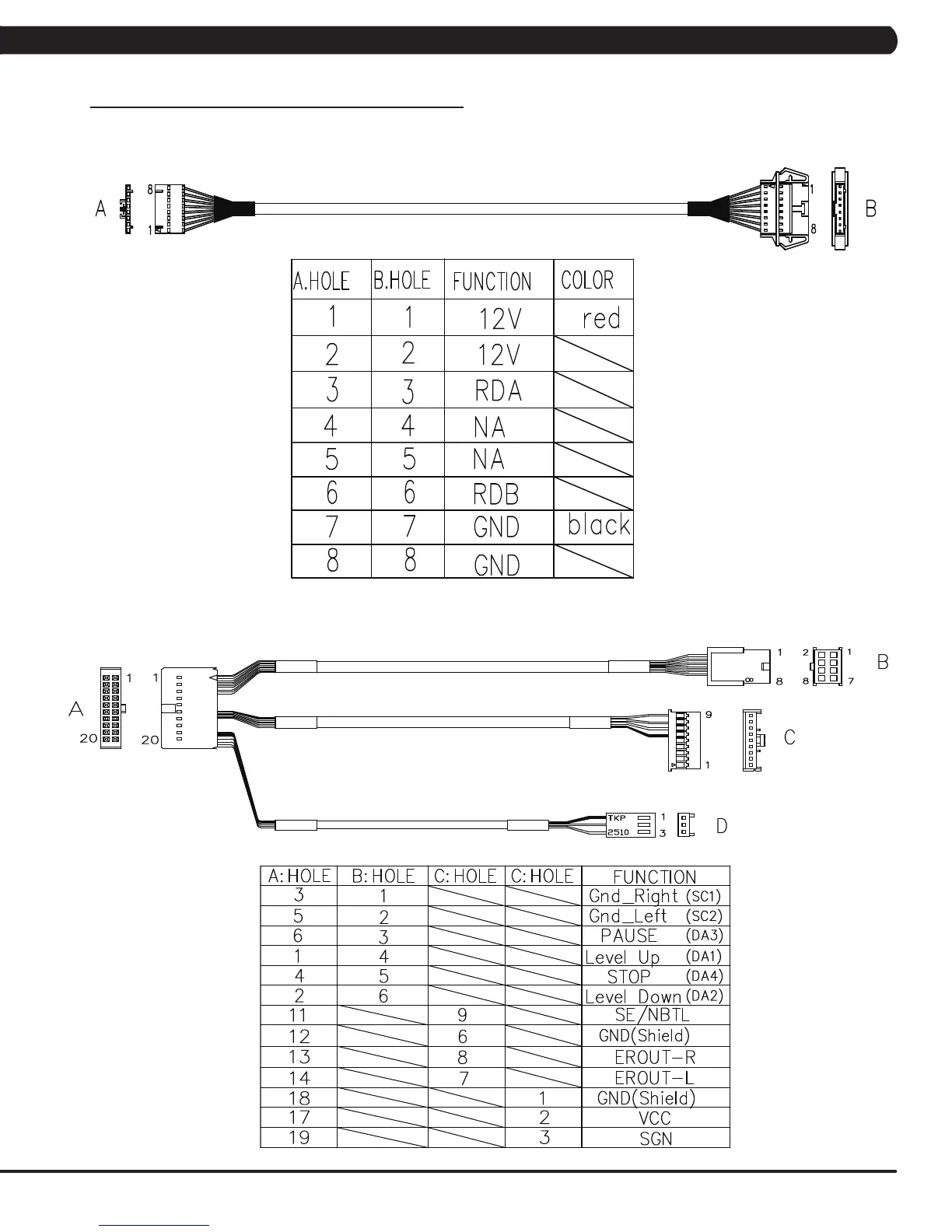

DIGITAL COMM WIRE (CONSOLE)

8.1 ELECTRICAL DIAGRAMS - CONTINUED

QUICKLY KEY WIRE (CONSOLE)

Table of Contents

Questions and Answers:

S
sarah01Aug 18, 2025
Why am I having heart rate issues with my Matrix C3X-02 Fitness Equipment?
- J
  Jasmine CunninghamAug 18, 2025
  If you're experiencing heart rate issues, start by checking the DC Voltage between the heart rate plates on the handlebar with a multi-meter set for DC Voltage; a correctly connected HR grip should read between .5 and 2.0VAC. Then, check the connection of the heart rate grip wiring to the grips after removing the screws holding the 2 halves of the HR grip together, and replace the HR grips if you notice any damage. If the problem persists, perform continuity tests on the wiring from the HR grip to the handlebar connection frame, expecting an ohm reading of less than 1. Also, verify the console grounding and the heart rate board ground wire connection. If all else fails, consider replacing the HR board or the console.
D
David WhiteAug 20, 2025
What to do if there is no power to the console of my Matrix C3X-02?
- J
  Johnny HaleyAug 20, 2025
  First, remove the front disk and check if LED D15 is lit on the LCB. If not, ensure the outlet is providing 120V, and check the fitness room power. If LED D15 remains unlit, replace the power cord. If LED D15 is lit, check for incoming AC voltage at the LCB and replace power components as needed. If voltage is present, and all power components are okay, replace the LCB. Ensure the console cable is connected at the LCB and console. Check the console cable with a multi-meter (pins 1 and 7 for 12V, pins 2 and 8 for 12V); approximately 12V should be present. Replace the console cable if this reading is off. If there's still no power, replace the console.
A
Allison JonesAug 23, 2025
How to fix error code 04A0 on Matrix C3X-02 Fitness Equipment?
- J
  john12Aug 23, 2025
  To resolve error code 04A0, which indicates the console has no communication or is disconnected, first, check the console cable connections at the LCB and UCB. If the connections are secure, try replacing the console cable. If the issue persists, the UCB may need to be replaced.
T
tariasAug 26, 2025
How to troubleshoot toggle issues on Matrix C3X-02 Fitness Equipment?
- T
  Thomas WardAug 26, 2025
  To troubleshoot toggle issues, start by removing the screws holding the two halves of the HR grip together and check the connection of the toggle wiring to the toggle keypad. Then, place a screwdriver or other metal object between pins 1 & 2 and 2 & 3 on the grip wiring; the console should beep when these wires are bridged. If the console beeps, replace the toggles. If it doesn't, perform a continuity test on the wiring from the toggle to the handlebar connection frame, expecting an ohm reading of less than 1. If the reading is higher or absent, replace the grip wiring. Finally, test the wiring from the handlebar connection frame to the console, ensuring an ohm reading of less than 1; replace the grip wiring if necessary.
W
waltersandrewAug 27, 2025
What to do if I get error code 01AF on my Matrix C3X-02 Fitness Equipment?
- K
  Kristin BlackAug 27, 2025
  If you're seeing error code 01AF, indicating the electro magnet (ECB) is disconnected, begin by checking the connection of the ECB extension cable from the LCB to the ECB. Also, check if LED8 and LED10 on the LCB have a brief light for 3 seconds when you power on the machine. If they don't, replace the LCB. If they do, check the ECB extension cable connection at the LCB (pins 1 & 3 for ECB1, pins 2 & 4 for ECB2); the resistance should be between 12.8 ~ 14.2 ohms. If the ECB resistance is out of range, replace the ECB. If within range, replace the LCB. Finally, check the gap of ECB1 and ECB2, ensuring there's a .5mm gap between the ECB and the flywheel.
R
Robert JonesAug 29, 2025
How do I resolve error code 04B0 on my Matrix C3X-02?
- K
  Kevin ReillyAug 29, 2025
  To resolve error code 04B0, indicating the LCB has no communication response for over 3 seconds, first, check the console cable connections at the LCB and UCB. If the connections are secure, try replacing the console cable. If the issue persists, the LCB may need to be replaced.
K
knightallisonSep 1, 2025
How to fix error code 0149 on Matrix C3X-02 Fitness Equipment?
- K
  Kayla FloresSep 1, 2025
  To address error code 0149 (01AC), which indicates an electro magnet (ECB) over current, start by measuring the resistance on ECB1 and ECB2 in standby mode. Check the ECB extension cable connection at the LCB (pins 1 & 3 for ECB1, pins 2 & 4 for ECB2), and ensure the resistance is between 12.8 ~ 14.2 ohms. If the ECB resistance is out of range, replace the ECB. If it's within range, replace the LCB. Also, check the gap of ECB1 and ECB2, making sure there is a 0.5mm gap between the ECB and the flywheel.
O
Olivia TurnerSep 3, 2025
What causes error code 02A0 on Matrix C3X-02 Fitness Equipment and how to fix it?
- V
  Victoria MasonSep 3, 2025
  Error code 02A0 indicates an encoder error. To resolve this, first check the connection of the speed sensor cable from the LCB to the speed sensor. Next, check if LED D35 on the LCB is on when the brake is turned to the left release position. If LED D35 is off, move the stairs about 3 stairs and check to see if LED D35 is flashing. If not, replace the speed sensor. If yes, adjust the speed sensor position and clean the speed sensor of any debris, then re-test.
J
jenniferhunterSep 5, 2025
How can I resolve a speed tracking error (Error Code 02C1) on my Matrix Fitness Equipment?
- A
  Amy BirdSep 5, 2025
  To resolve a speed tracking error (Error Code 02C1), start by adjusting the speed sensor position and cleaning the speed sensor of any debris. Also, check the ECB extension cable connection at the LCB (pins 1 & 3 for ECB1, pins 2 & 4 for ECB2), ensuring the resistance is between 12.8 ~ 14.2 ohms. Identify which ECB is outside the range and replace it.
J
Jo SmithSep 8, 2025
Why am I getting error code 02C3 (Frame IR transmitter Error) on my Matrix Fitness Equipment?
- R
  Randall HudsonSep 8, 2025
  If you're getting error code 02C3, which indicates a Frame IR transmitter Error, first check if anything is blocking the control zone IR sensors. Next, check if the frame IR sensors (transmitter and receiver) are aligned. Then, check the connection of the frame IR transmitter cable from the LCB to the frame IR transmitter sensors. Finally, inspect the frame IR transmitter cable for defects and replace it if necessary.
