Matrix E7XI-01 User Manual

92
CHAPTER 9: PART REPLACEMENT GUIDE
9.4 GENERATOR REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the front disks as outlined in Section 9.1.
3) Remove the front shrouds as outlined in Section 9.2.

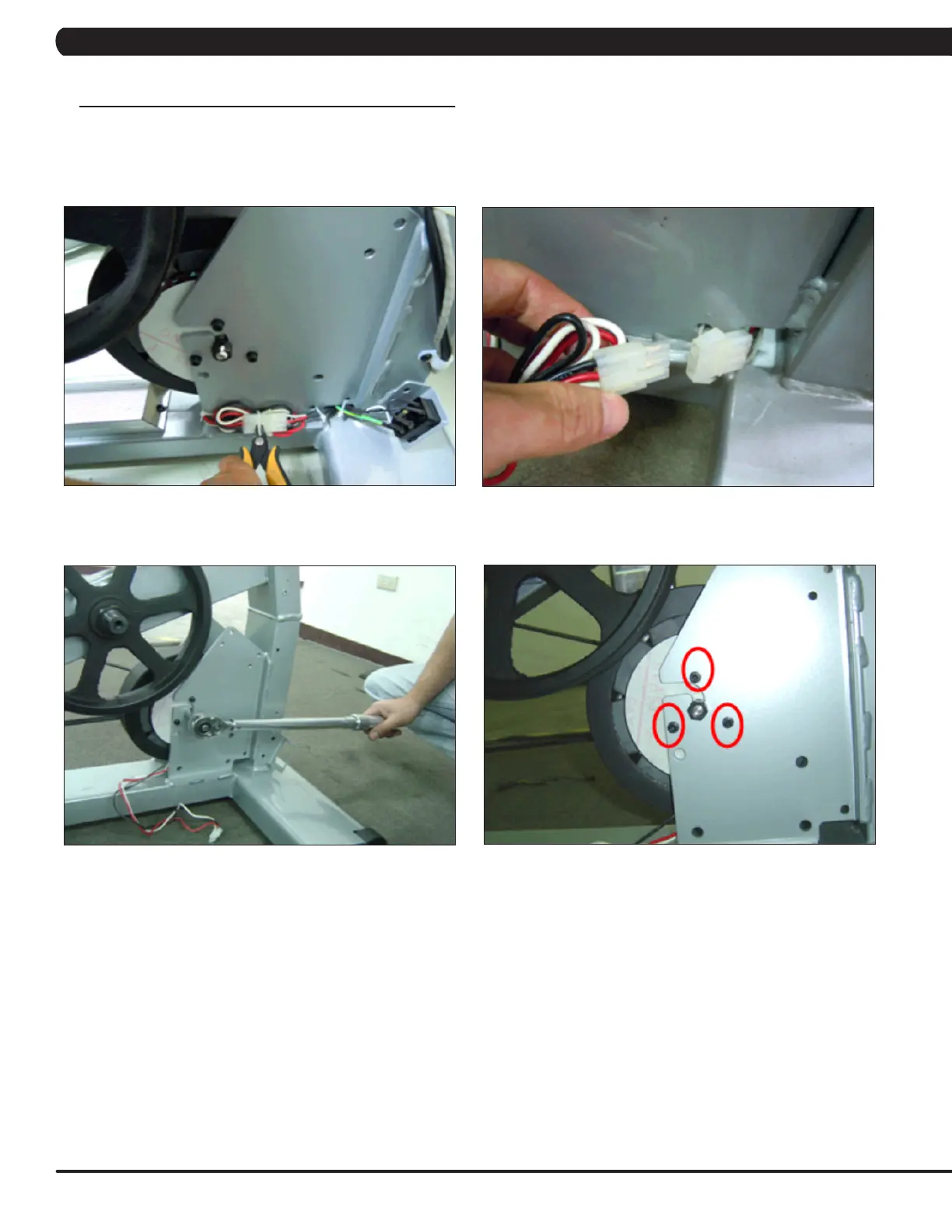

4) Cut the cable tie holding the cable to the frame (Figure A).
5) Unplug the power cable connector of the generator (Figure B).
6) Loosen the nut holding the generator to the frame (Figure C).
7) Remove the three screws from the generator bracket (Figure D).
FIGURE A FIGURE B
FIGURE C
FIGURE D
