NO DISPLAY ON THE CONSOLE OR THE DISPLAY IS DIM WHEN RUNNING

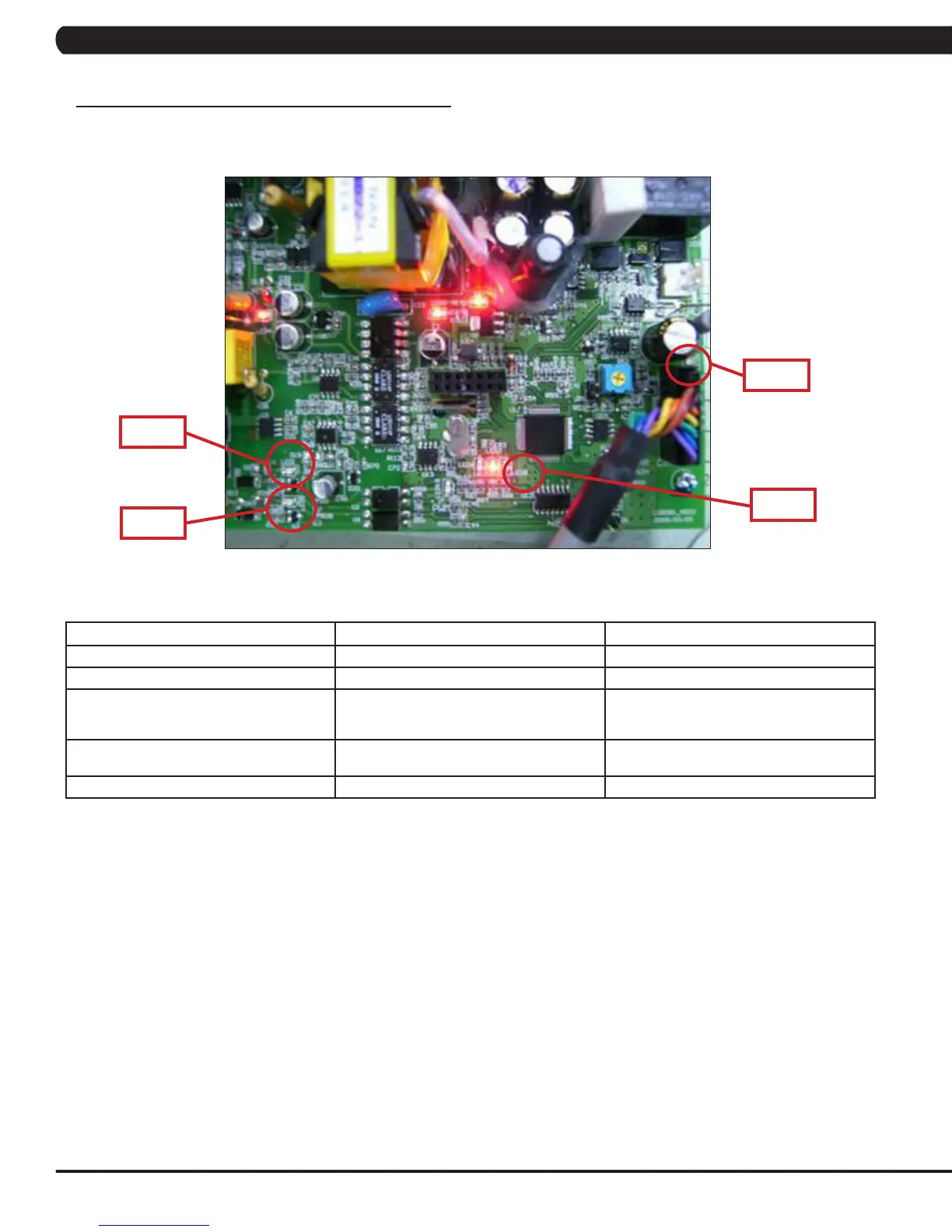

LED 1
LED 5
LED 9
LED 8
SYMPTOM: The console will not power up or the display is dim.
CHECK POINT POSSIBLE ISSUE SOLUTION
LEDs 2, 3, 4, 6, and 7 should be ON. If they are OFF, the LCB is damaged. Replace the LCB.
if LED1 is OFF. No AC power cord plugged in. Normal for an non-powered unit.
if LED 5 is OFF. Generator has no RPM output. Normal for a powered unit. If non-powered
and issue is still present, replace the
generator.
if LED 8 is OFF. Bad communication between UCB and LCB. Reconnect the console cable at the LCB and
UCB and check for kinks.
if LED 9 is OFF. LCB is not providing 12V power to the UCB. Replace the LCB.
SOLUTION IF LEDS ARE NORMAL:
1) If the LEDs are lit normally, replace the UCB and console cable.
2) if the issue is still present after the UCB and console cable are replaced, replace the LCB.
