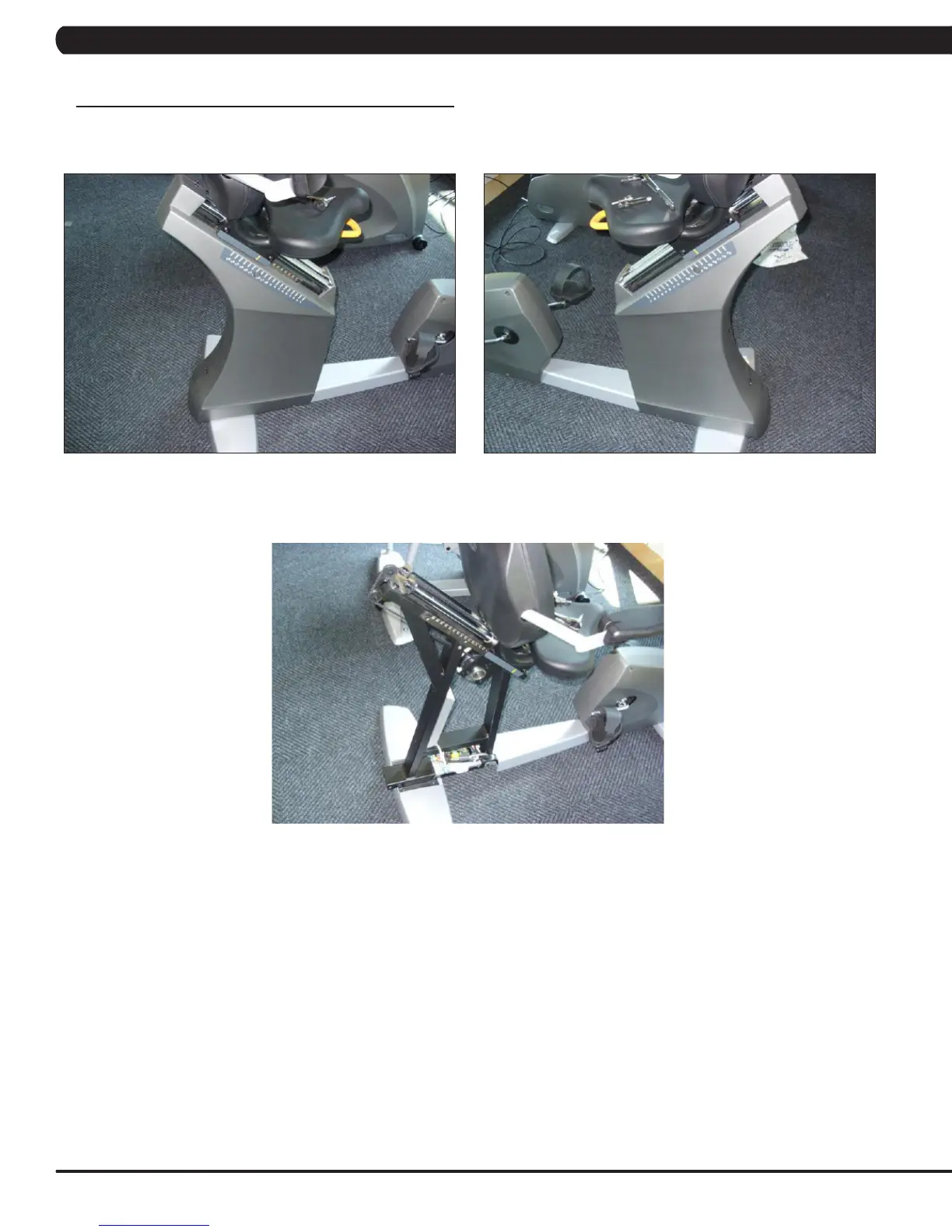

9.11 REAR SHROUD REPLACEMENT
1) Remove the 9 screws attaching the right side rear shroud to the frame and to the left shroud (Figure A).
2) Remove the 3 screws attaching the left side rear shroud to the frame (Figure B).
3) Figure C shows both the rear shrouds removed.
4) Reverse Steps 1-2 to install new rear shrouds.
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
