Matrix H3XE-01 User Manual

45

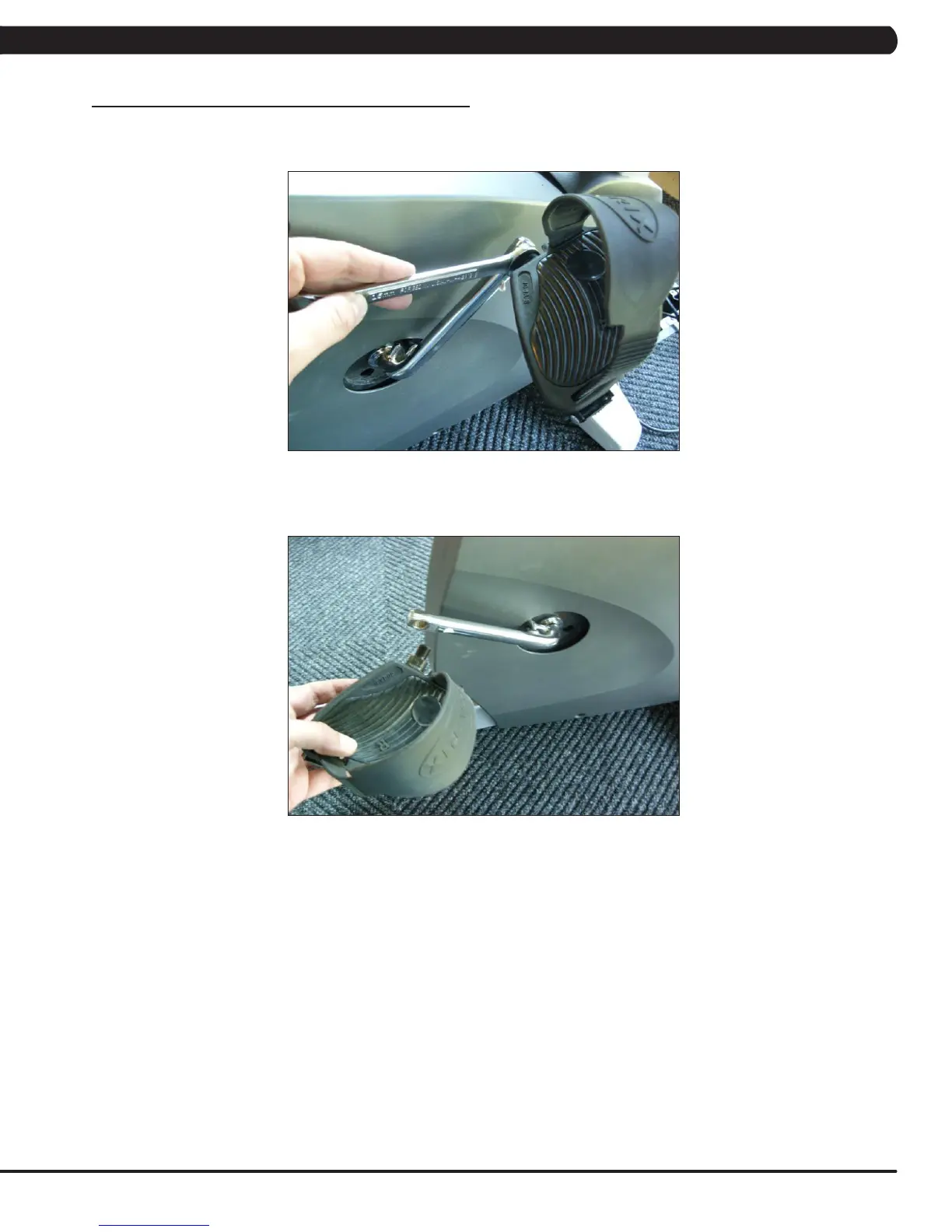

9.10 PEDAL REPLACEMENT
1) Use a 15 mm wrench to remove the pedal from the crank (Figure A). NOTE: For the right side pedal, the threads are normal. For the left
side pedal, the threads are reversed (the pedal turns off counterclockwise).
2) Remove the pedal (Figure B).
3) Reverse Steps 1-2 to install a new pedal.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
