9.8 BACK PAD REPLACEMENT

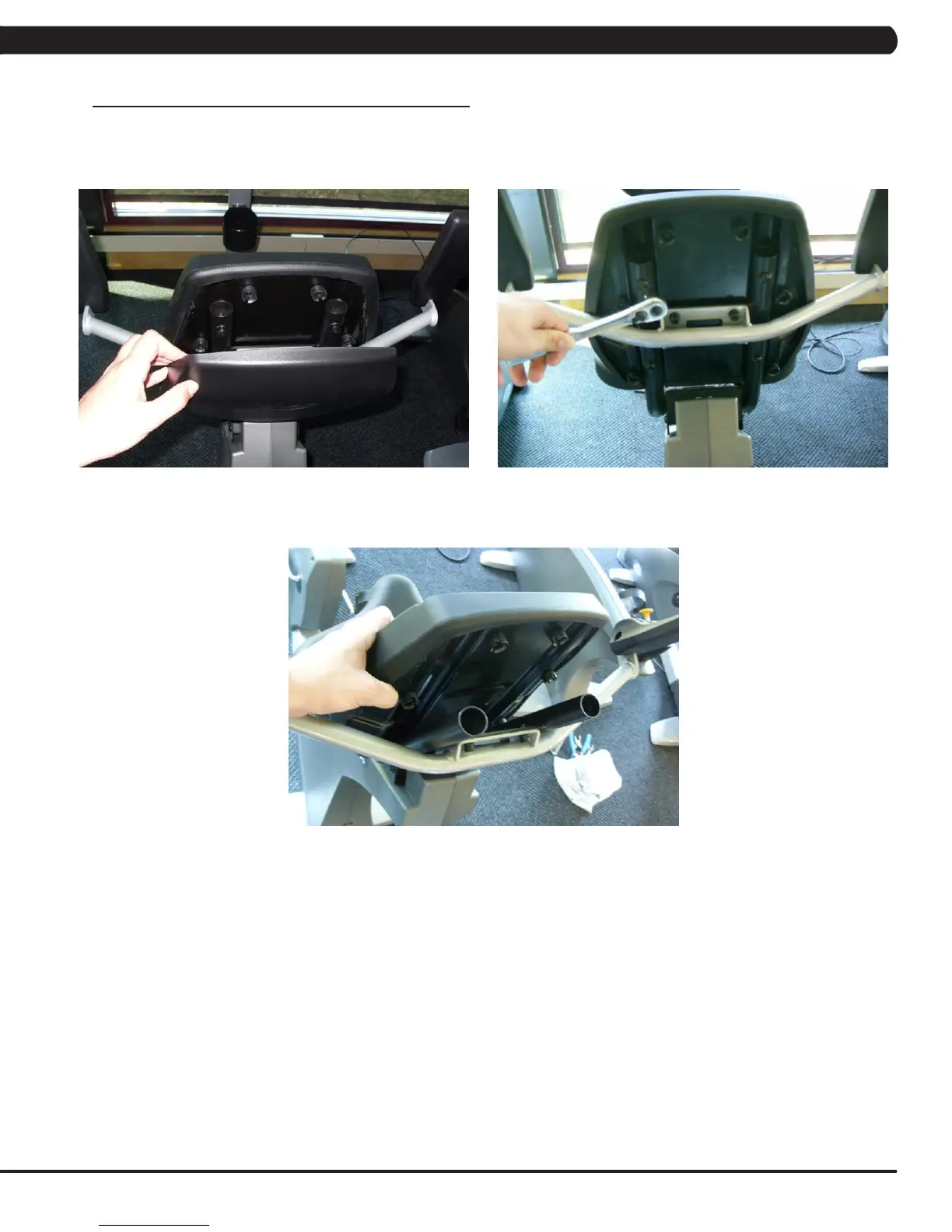

1) Using the tips of your fingers, remove the back cover of the back pad. The back cover is held on by plastic snap clips, and if pressure is
applied, the cover will pop off (Figure A).
2) Remove the 4 bolts holding the seat pad to the seat frame (Figure B).
3) Remove the back pad (Figure C).
4) Reverse Steps 1-3 to install a new back pad.
FIGURE A
FIGURE B
FIGURE C
