9.18 PULLEY AXLE SET REPLACEMENT
1) Remove the front shrouds as outlined in Section 9.12.
2) Remove the drive belt as outlined in Section 9.15.

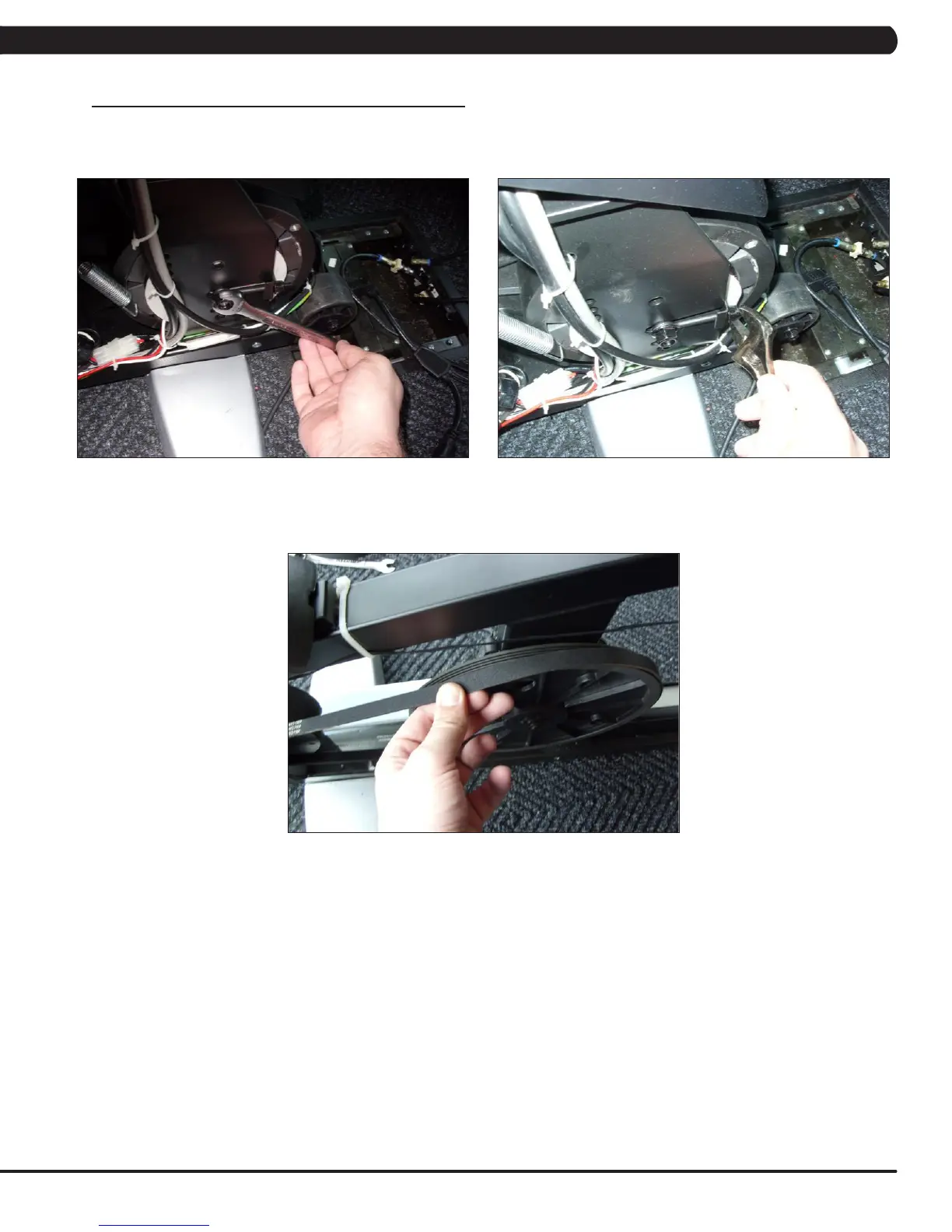

3) Loosen the nuts holding the generator to the frame (Figure A), and remove the nuts putting tension on the generator belt (Figure B).
4) Once the tension has been removed, walk the generator belt off of the pulley (Figure C).
FIGURE A FIGURE B
FIGURE C
