10.6 TV BRACKET INSTALLATION
The Matrix H3xe-01 Bike is capable of accepting a 15" TV via a bracket. Follow the instructions below to
install the TV and bracket. Use the instructions in the Entertainment Owner's Manual to program the TV
after installation.
1) Turn off power and disconnect the power cord.
2) Remove the console from the bike.
3) Remove the 2 screws holding the small silver back cover to the console and remove the back cover (Figures A & B).
4) Remove the 4 screws holding the rear half of the console to the front half and split the console (Figures C & D).
5) Plug the TV power wire into the UCB (Figure E).
6) Plug the TV controller wire into the UCB (Figure F).

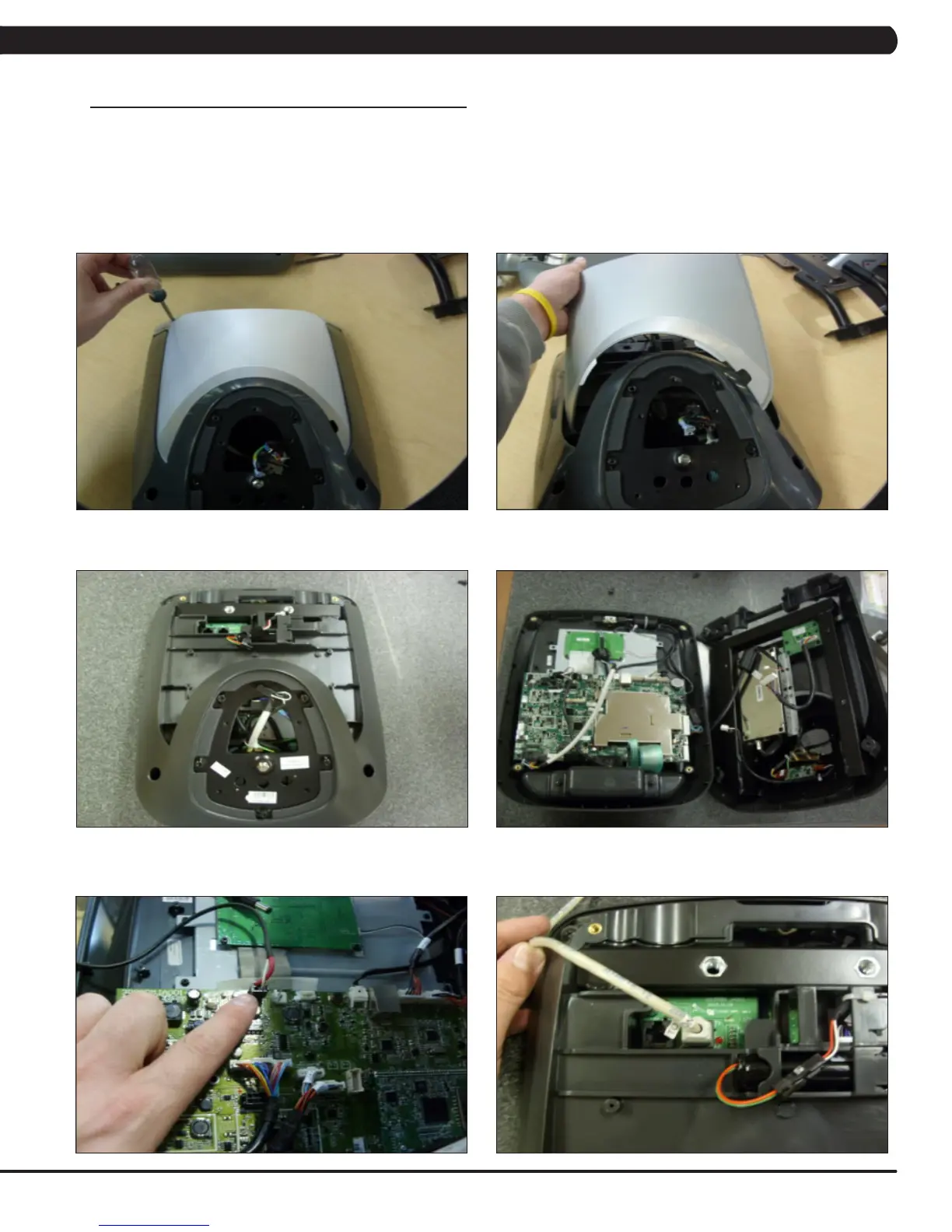

FIGURE BFIGURE A
FIGURE DFIGURE C
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
FIGURE FFIGURE E
