9.12 FRONT SHROUD REPLACEMENT
1) Remove the pedals as outlined in Section 9.10.

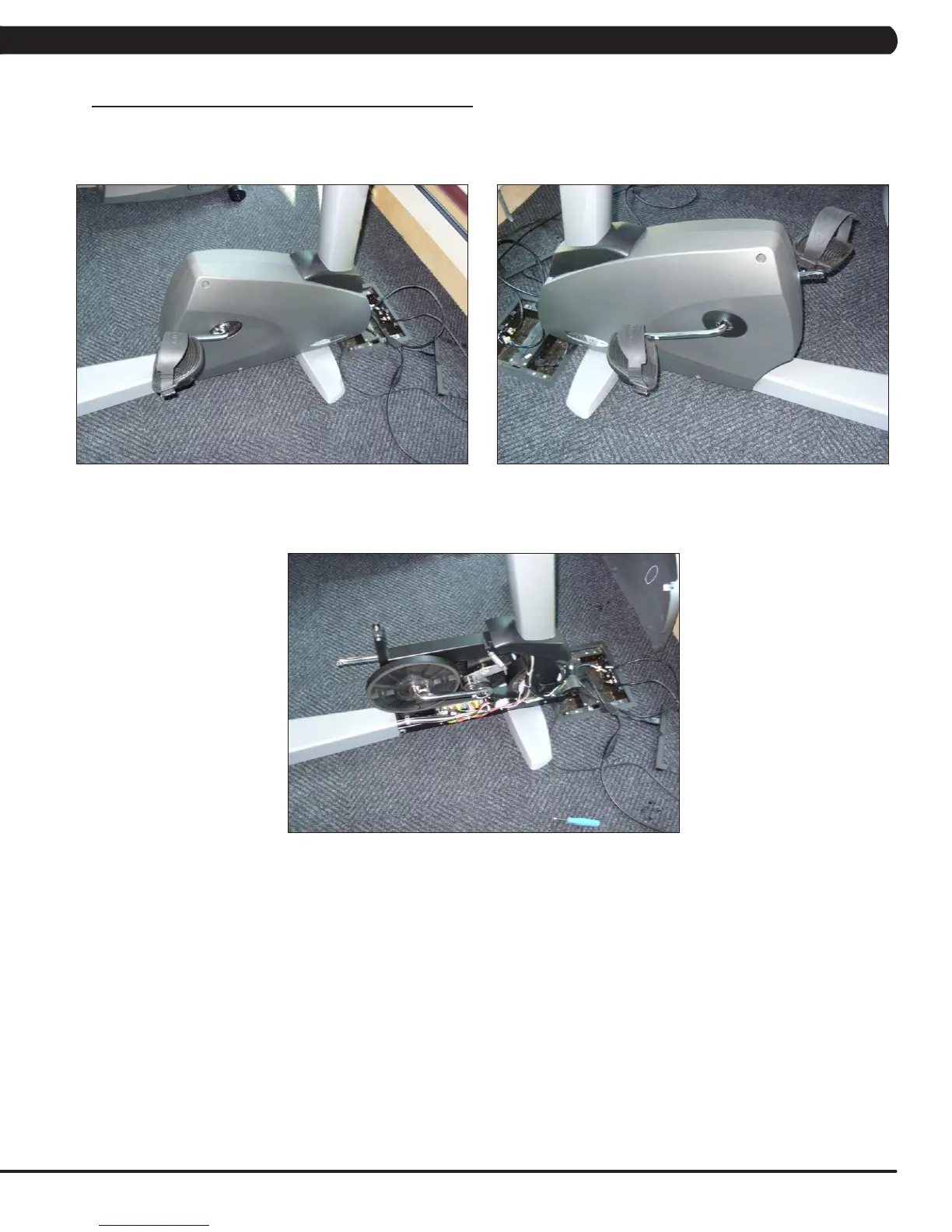

2) Remove the 8 screws attaching the right side front shroud to the frame and to the left shroud (Figure A).
3) Remove the 5 screws attaching the left side front shroud to the frame and entertainment port (Figure B).
4) Figure C shows both the front shrouds removed.
5) Reverse Steps 1-3 to install a new front shroud.
FIGURE A FIGURE B
FIGURE C
