CHAPTER 3: Part Replacement Guide
3.2 HEART RATE GRIP and QUICK KEY REPLACEMENT(E30&E50)
A. HEART RATE GRIP.
1) Remove the 3 screws from heart rate plastic housing. (Fig-1)
2) Open the plastic housing. (Fig-2)
3) Disconnected the wires from HR plates and quick key connector. (Fig-3)
4) Remove the bad HR plates and insert new HR plates.
5) Connected the wire to new HR plates and quick key connector.
6) Close the plastic housing to the handlebar and fasten the screws, making sure the wires are not being
pinched.

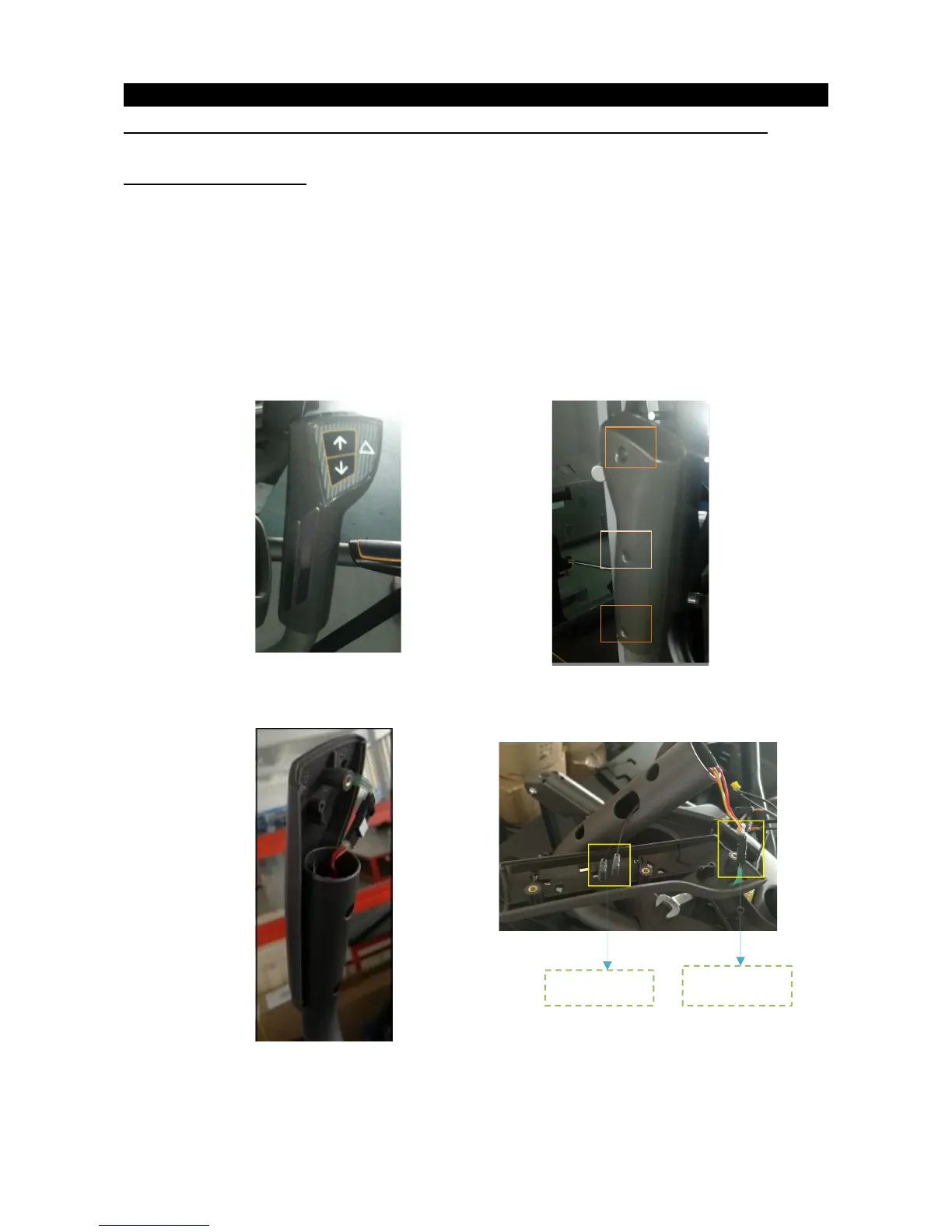

Fig-1 Fig-2
Fig-3 Fig-4
Quick key
Heart rate
