CHAPTER 3: Part Replacement Guide
3.5 HANDLE BAR REPLACEMENT (E30&E50)

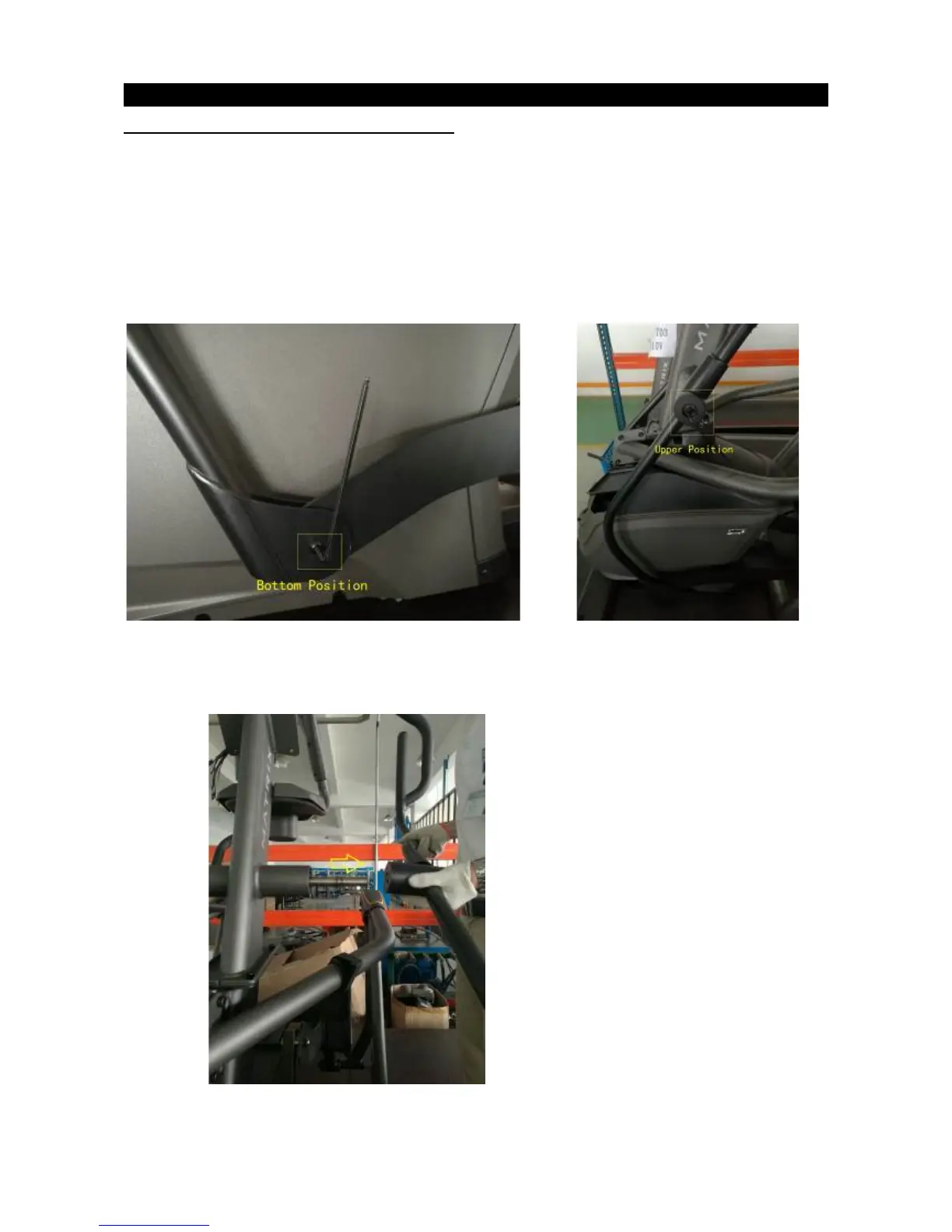

1) Remove the lower nut and bolt connecting the handlebar to lower link arm. (Fig-1 and Fig-2)
2) Remove the upper bolts connecting the handlebar to the console mast.
3) Take the arm set off. (Fig-3)
4) Reverse step to reinstall.
Fig-1 Fig-2
Fig-3
