CHAPTER3: Part Replacement Guide
3.7 SIDE COVER REPLACEMENT

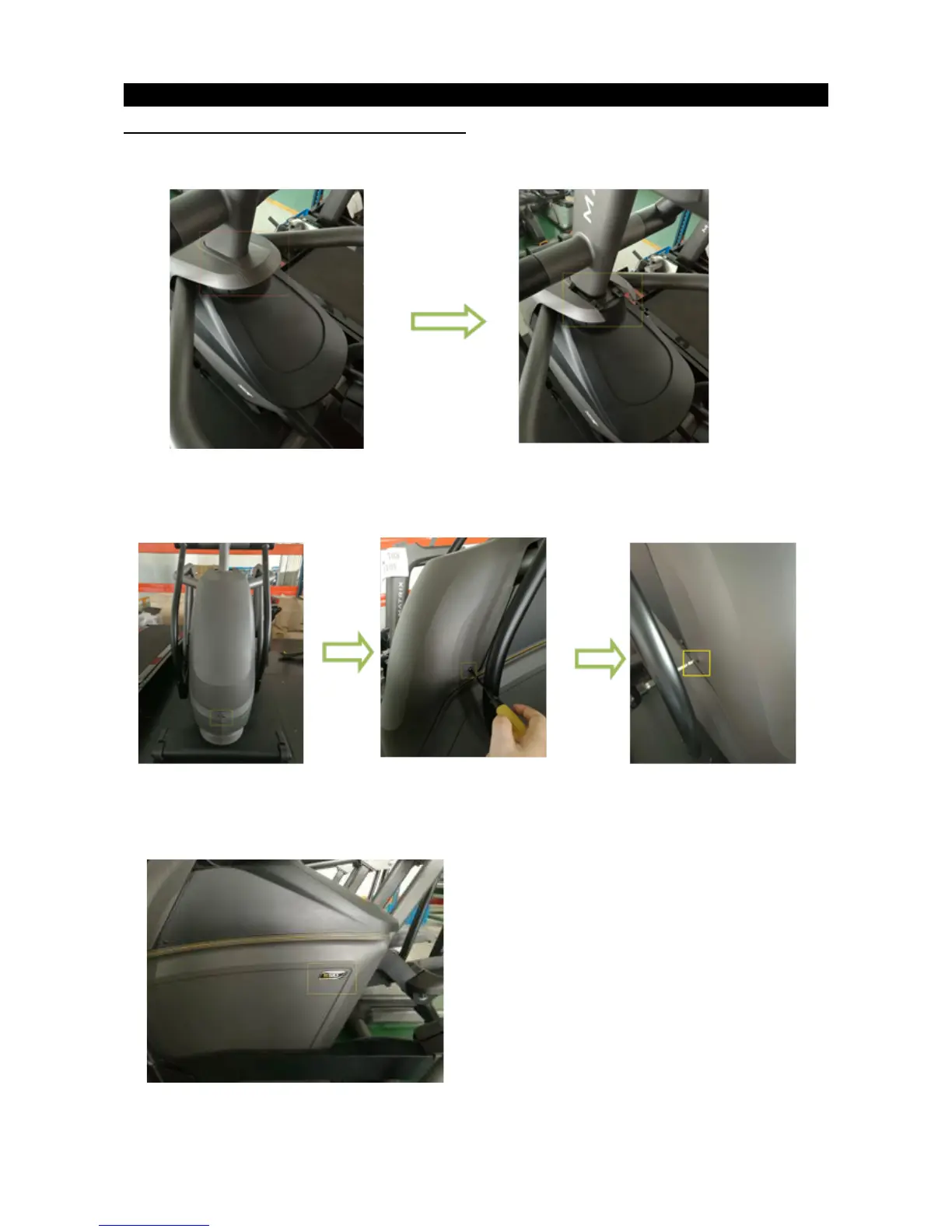

1) Remove the cover of console mast. (Fig-1 and Fig-2)
Fig-1 Fig-2
1) Remove the 6 screws in the side cover. (Fig-3 and Fig-4 and Fig-5)
Fig-3 Fig-4 Fig-5
2) Install new side cover and fasten screws. (Fig-6)
Fig-6
