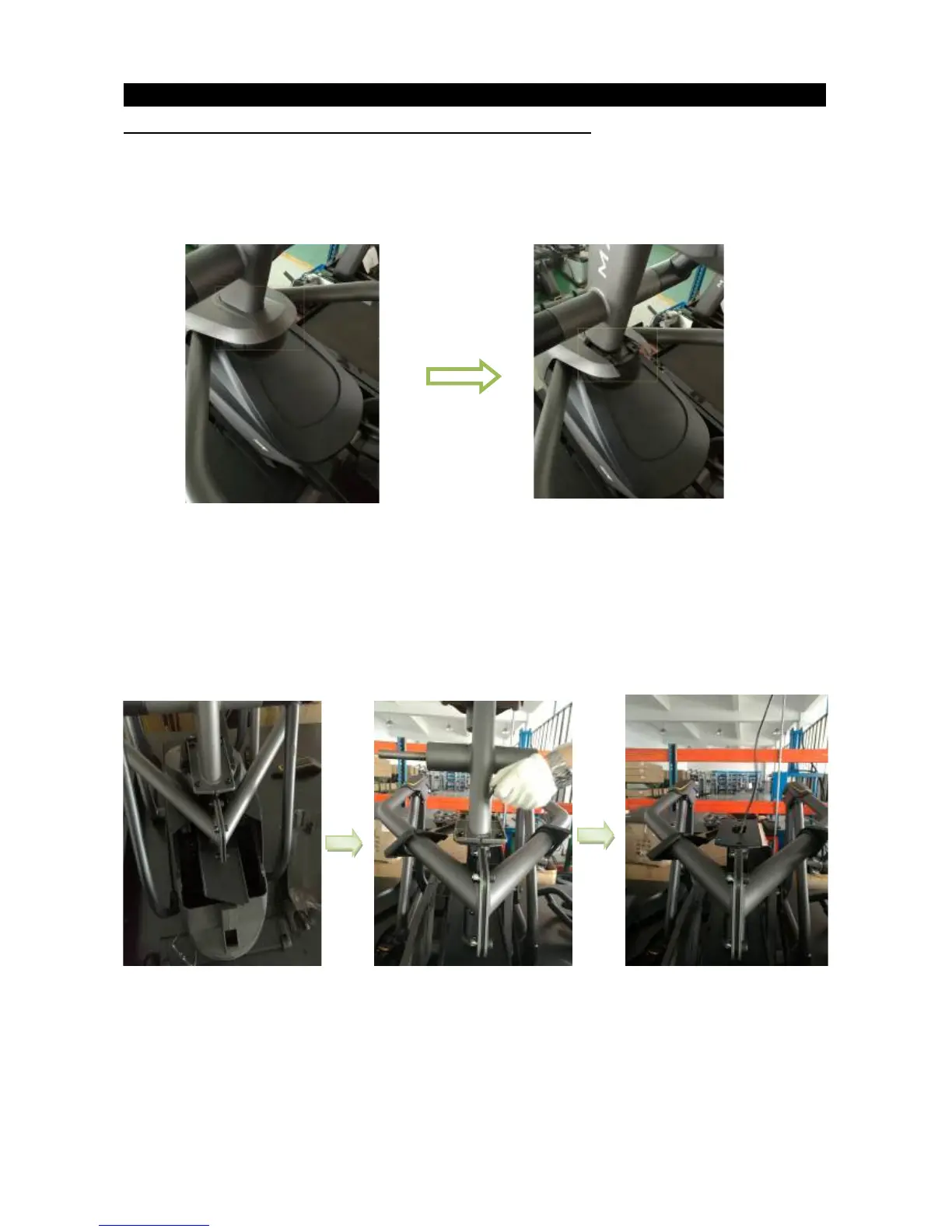

CHAPTER 3: Part Replacement Guide
3.4 CONSOLE MAST REPLACEMENT (E30&E50)
1) Remove console. (See Section 3.1 )
2) Remove dual action handlebars.(See section 3.5)
3) Remove the cover of console mast by pulling back on the cover. (Fig-1 and Fig-2)
Fig-1 Fig-2
4) Remove side cover screws and remove side cover.
5) Remove the 4 bolts holding the console mast, making sure to guide console cable to ensure it is not
damaged during removal.(Fig-3 and Fig-4 and Fig-5D)
Fig- 3 Fig-4 Fig-5
