Matrix T50x-02 User Manual

56
8.6 Front roller removal
1. Remove shrouds as outlined in section 8.1
2. Using a hook or loop of wire, (Figure A)
remove the spring from the belt tensioner.
The tensioner will now pivot away from
the drive belt
3. Remove the front roller mounting screws using
8mm Allen (Figure B and C)
4. Remove the drive belt from the front roller and
remove the roller from the running belt
(Figure D)

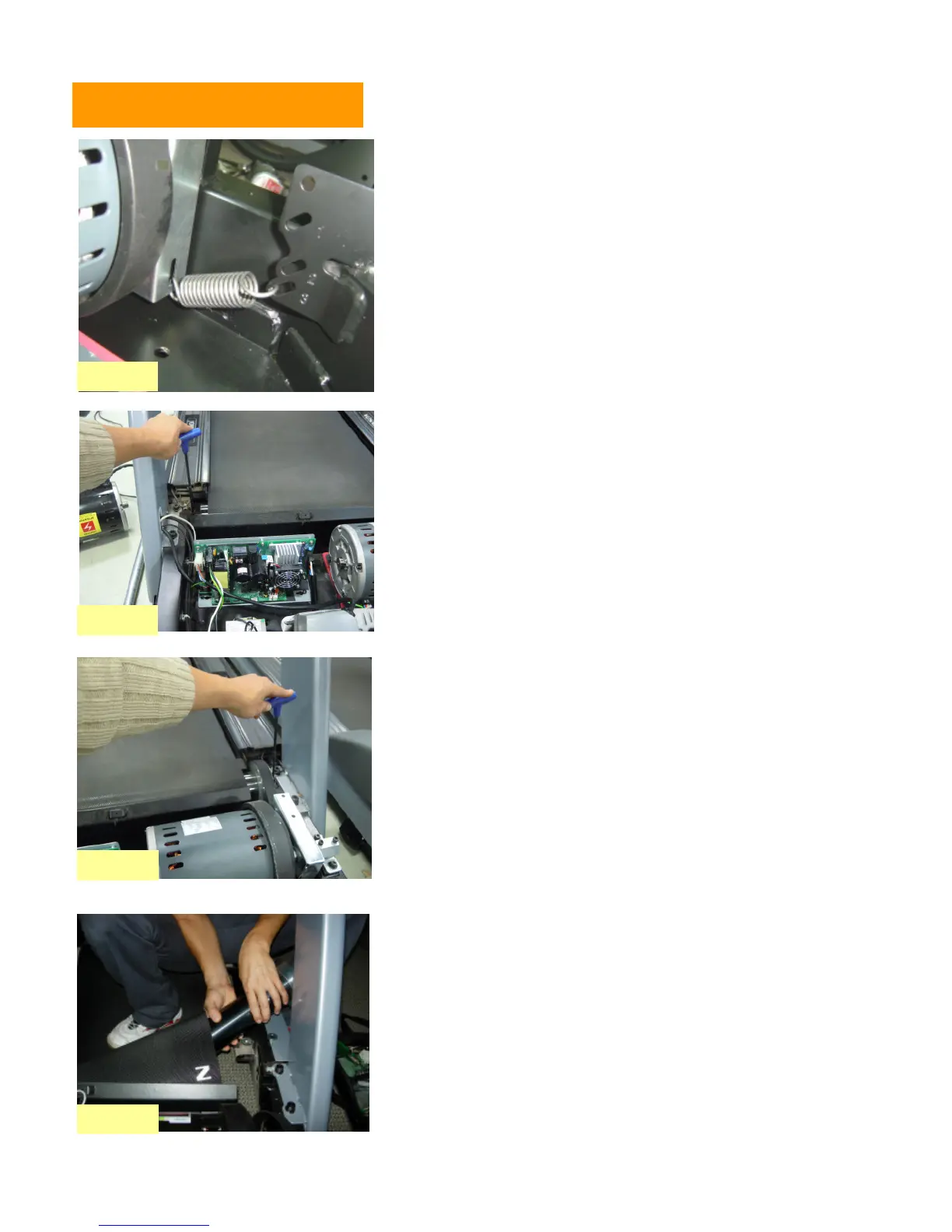

Figure A
Figure B
Figure C
Figure D
