Matrix T50x-02 User Manual

58

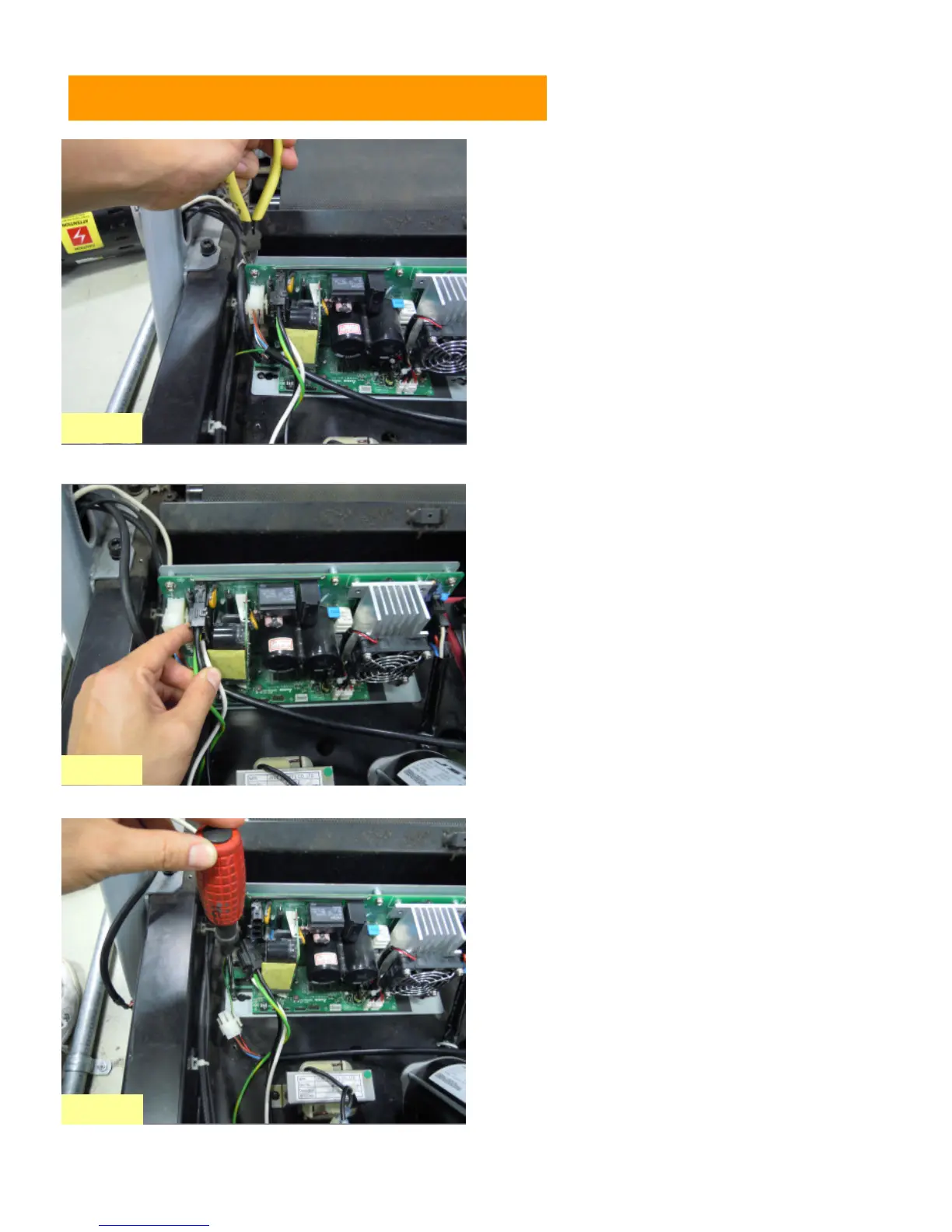

8.8 Motor control board (MCB) removal
1. Remove shroud as outlined in section 8.1
2. Cut any wire ties that are secured to
the MCB panel (Figure A)
3. Disconnect wires from the MCB
seven connections total (Figure B)
4. Remove four MCB mounting screws using
Phillips head screwdriver (Figure C )
Figure A
Figure B
Figure C
