8.11 Incline motor removal / Replacement
1. Lift the treadmill and support it so that the
wheels are off the floor, or the unit
may be tipped onto it’s side (Figure A)
2. Remove the clip from the pin attaching motor
shaft to the rack (Figure B and C)
3. Disconnect the incline motor power cable
from the motor control board ( Figure D)
4. Disconnect the bolt from the incline motor
( Figure E)
5. Lift the incline motor away from the treadmill
(Figure F)
6. When installing the incline motor, make sure
to replace the white washers at the top and
bottom (Figure G)

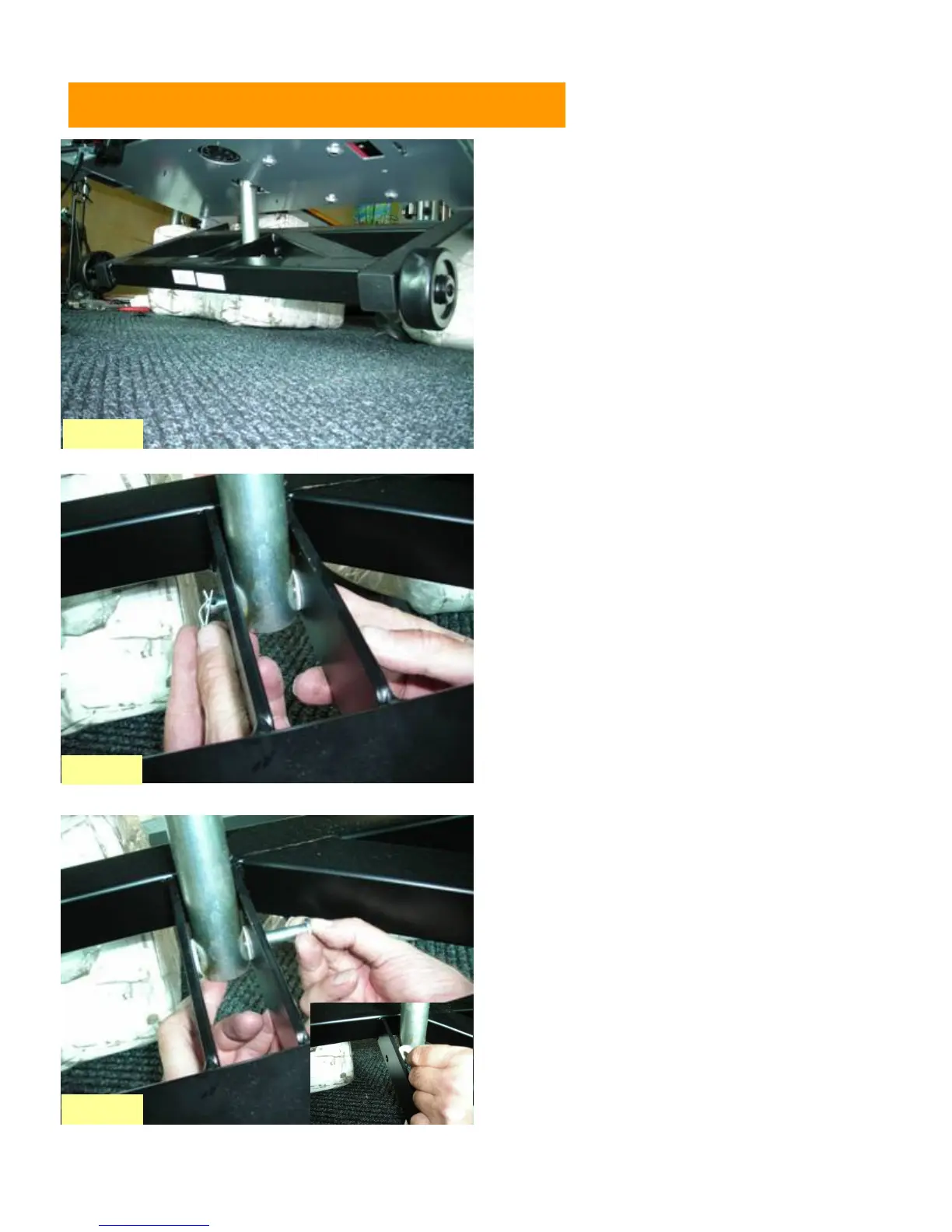

Figure A
Figure B
Figure C
