Matrix T7xe-04 User Manual

45

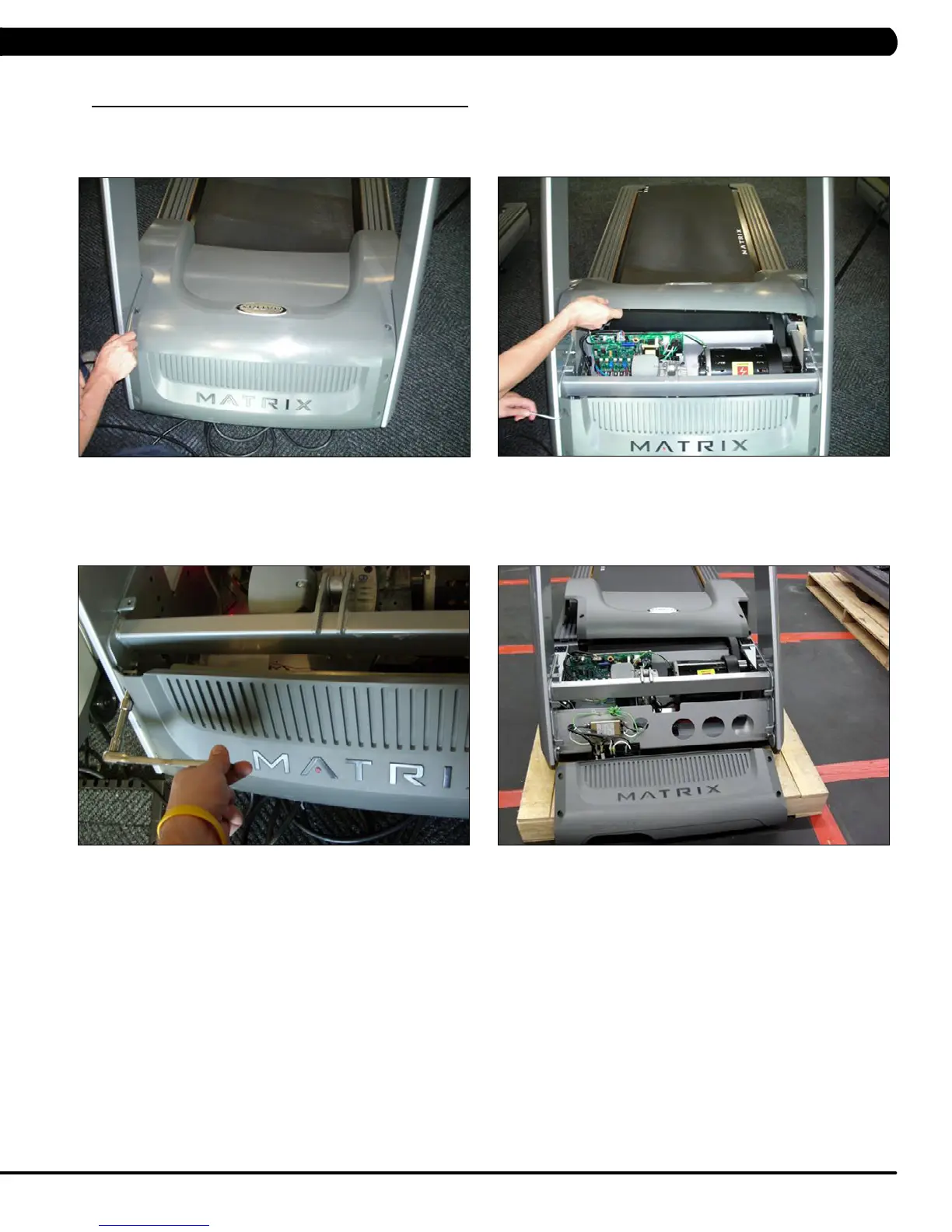

9.1 MOTOR COVER AND LOWER SHROUD REMOVAL
1) The motor cover is split into two pieces (called the motor cover and lower shroud
2) Remove the 2 screws holding motor cover to the frame (Figure A ).
3) Pull up on the rear of the motor cover to release the Velcro, and remove the motor cover (Figure B).
4) Remove the 4 screws holding the lower shroud to the frame (Figure C).
5) Figure D shows a unit with both the motor cover and lower shroud removed.
FIGURE A FIGURE B
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
