9.7 SIDE RAIL REPLACEMENT
1) Remove the 4 screws holding on the end cap on the same side as the broken side rail using a Phillips screwdriver and remove the end cap
(Figure A).
2) Loosen the four screws under the frame of the side rail using a 5 mm Allen wrench (Figure B).
3) Slide the rail off the back of the treadmill (Figures C & D).
4) Reverse Steps 1-3 to install a new side rail. NOTE: After reinstalling the side rail, make sure the end cap is on first before tightening the
screws for proper gap spacing. Also be careful not to over tighten the screws, or they will poke through the top of the side rail.

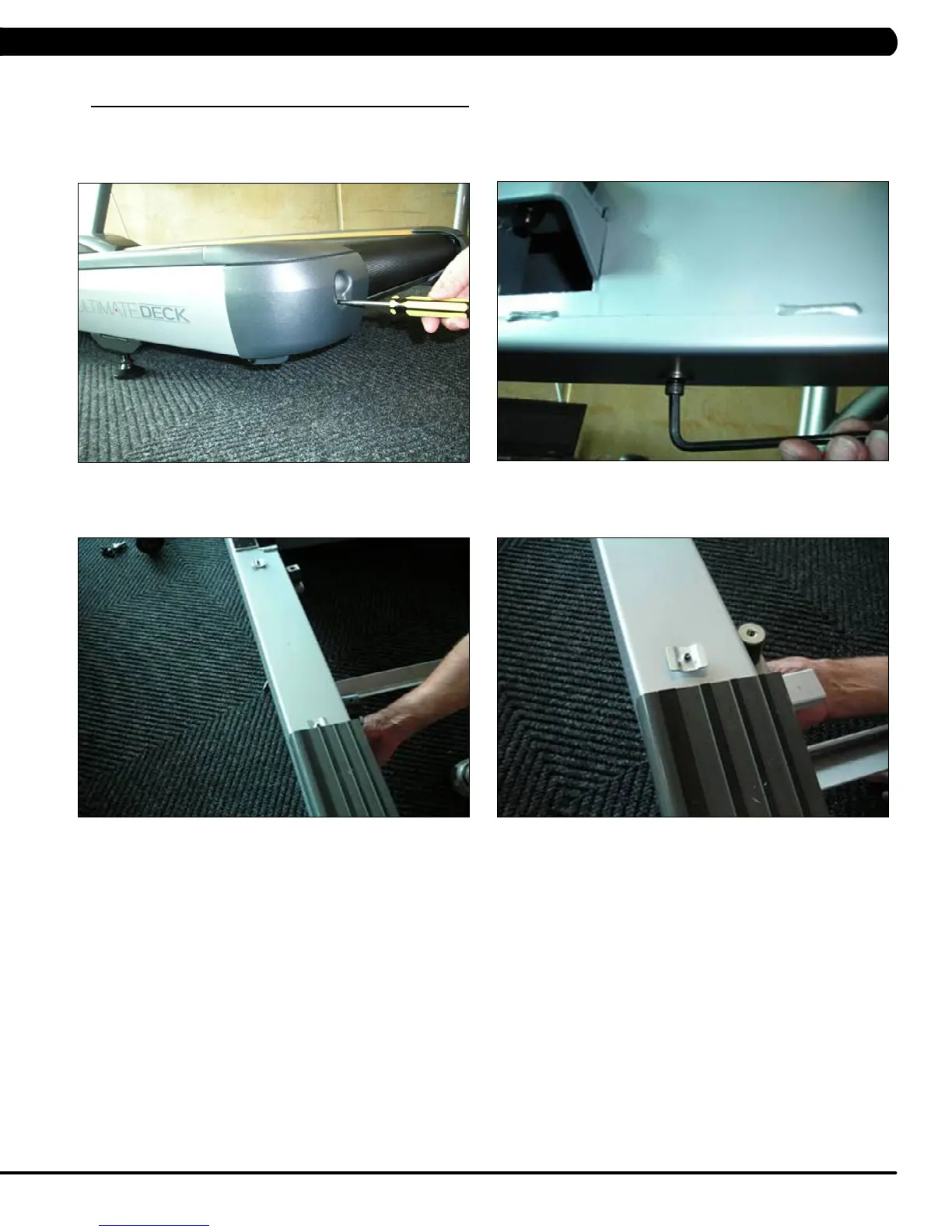

FIGURE A FIGURE B
FIGURE D
FIGURE C
