60
9.14 CONSOLE CABLE REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.12.
3) Take off the cup holder from the right side of the treadmill (Figure A).
4) Use a 6 mm Allen wrench to remove one screw and take off the plastic hand rail (Figure B).
5) Remove the 5 Phillips screws and remove the right side upper plastic cover (Figures C, D, & E).
6) Cut the wire ties and begin to unthread the wire harness (Figures F & G). .

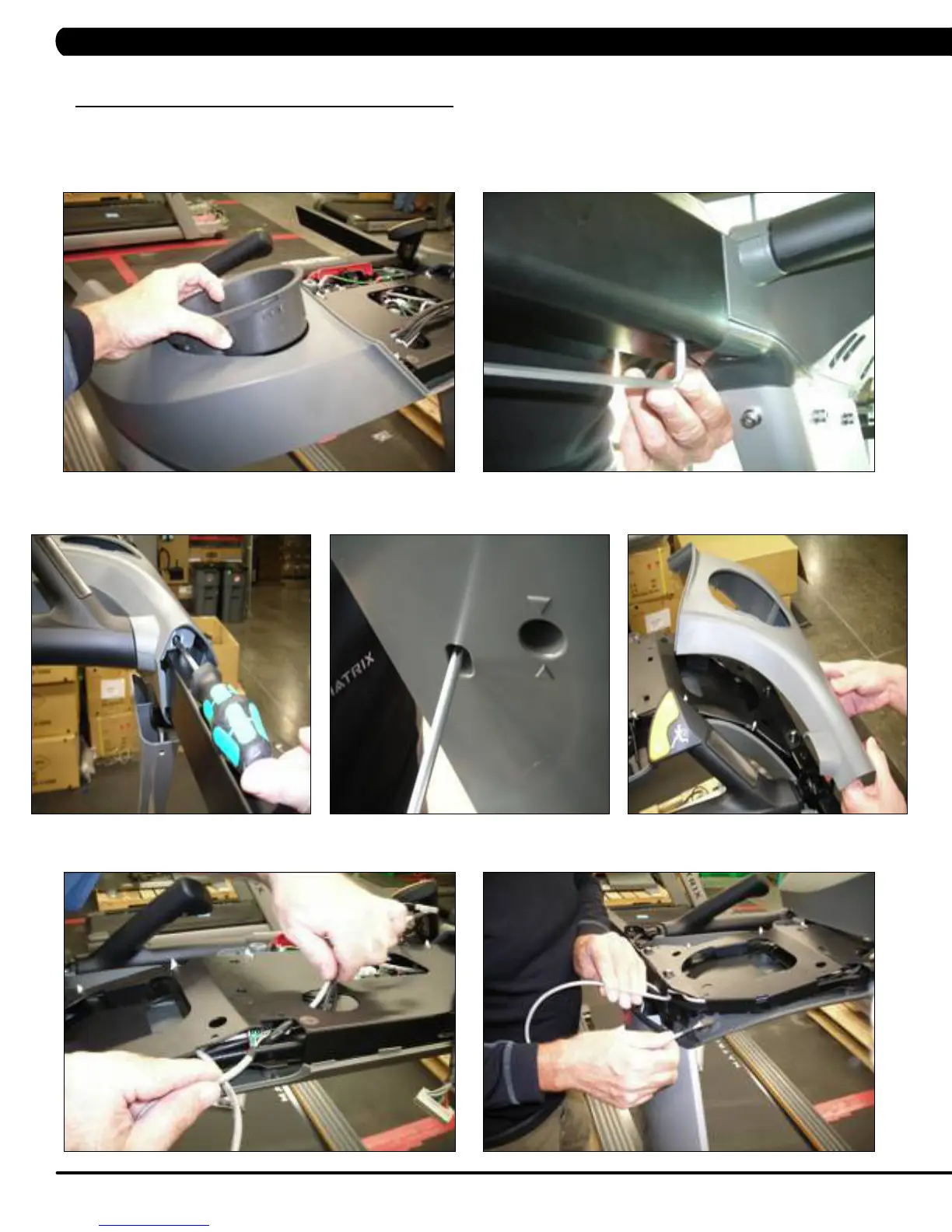

FIGURE A FIGURE B
FIGURE C FIGURE D FIGURE E
FIGURE F FIGURE G
CHAPTER 9: PART REPLACEMENT GUIDE
