Matrix T7xe-04 User Manual

65

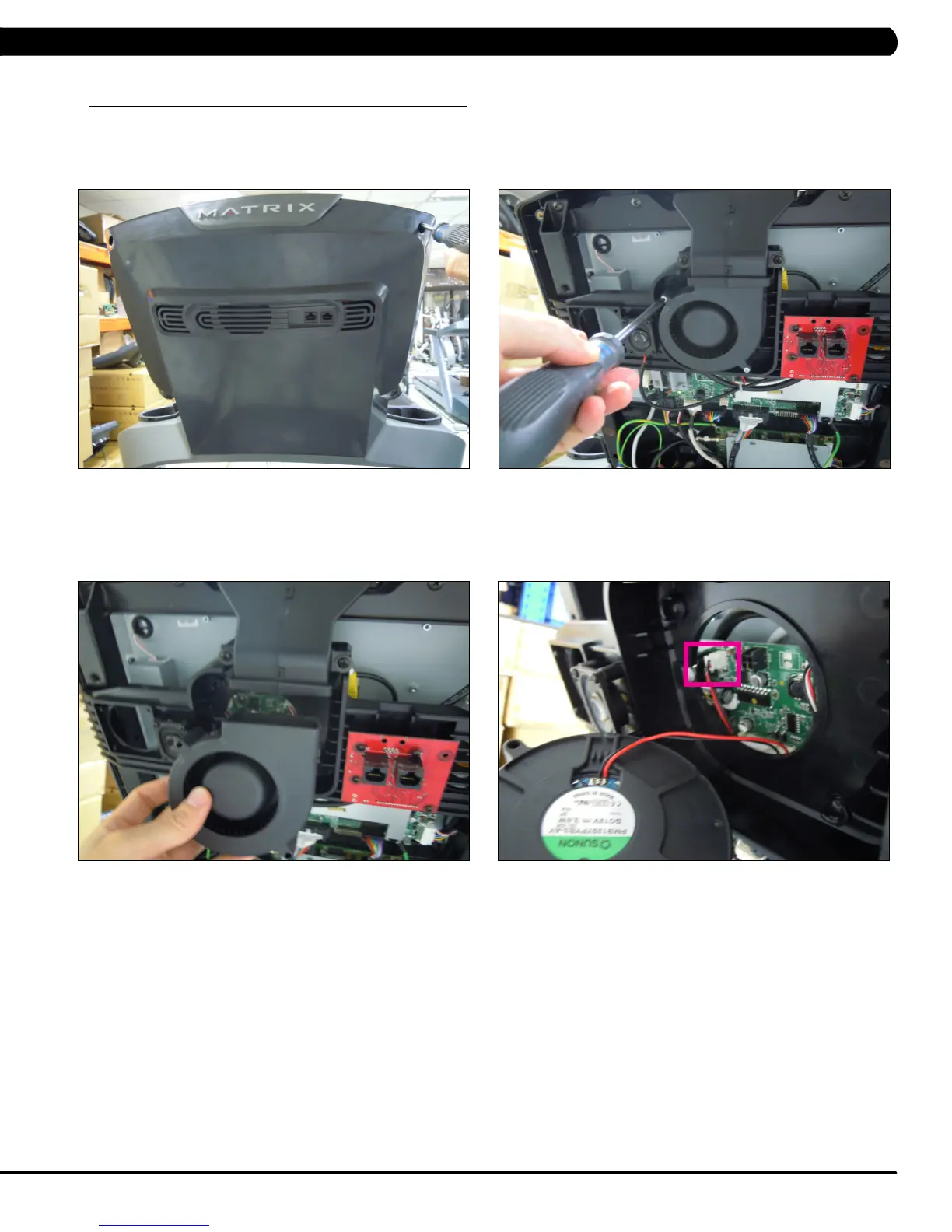

9.18 BLOWER MOTOR REMOVAL
1) Turn off power and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.12.
3) Lay the console face down and remove the four screws using a Phillips screwdriver (Figure A).
4) The console shell will now separate. Use a Phillips screwdriver to remove the two screws holding the blower motor in place (Figure B).
5) Carefully separate the blower motor from the duct and remove it (Figure C).
6) Unplug the wire connections from the main circuit board to completely split the front and rear sections (Figure D).
7) Reverse Steps 1-6 to install a new blower motor. NOTE: Be sure to test the blower motor once the console is reinstalled.
FIGURE A
FIGURE B
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
