6.3 CONSOLE REPLACEMENT

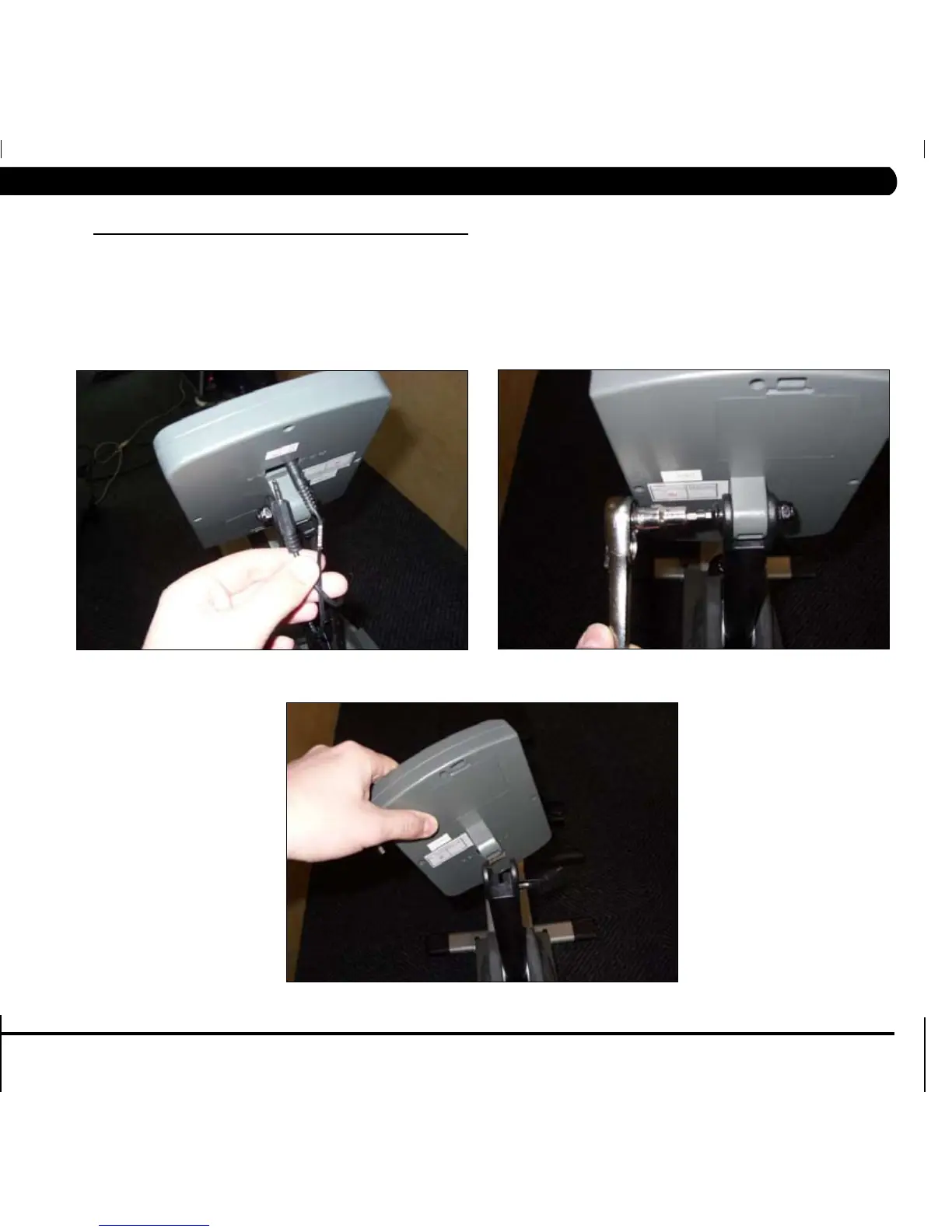

1) Disconnect the HR and RPM wires from the back of the console (Figure A).
2) Remove the screw / nut holding the console to the console mast (Figure B).
3) Remove the console (Figure C).
4) Reverse Steps 1-3 to install a new console.
5) Test the rower for function as outlined in Section 6.19.
FIGURE A
FIGURE B
FIGURE C
