6.9 SPIN AXLE REPLACEMENT
CHAPTER 6: PART REPLACEMENT GUIDE
1) Remove the middle shrouds as outlined in Section 6.2.
2) Remove the 3 screws holding the spin axle to the frame (Figure A).
3) Remove the spin axle (Figure B).
4) Reverse Steps 1-3 to install a new spin axle. NOTE: When installing a new spin axle, be sure to wind the axle 2.5 - 3 revolutions (clockwise for the right
spin axle, counter clockwise for the left spin axle) before attaching to the frame (Figure C).
5) Test the rower for function as outlined in Section 6.19.

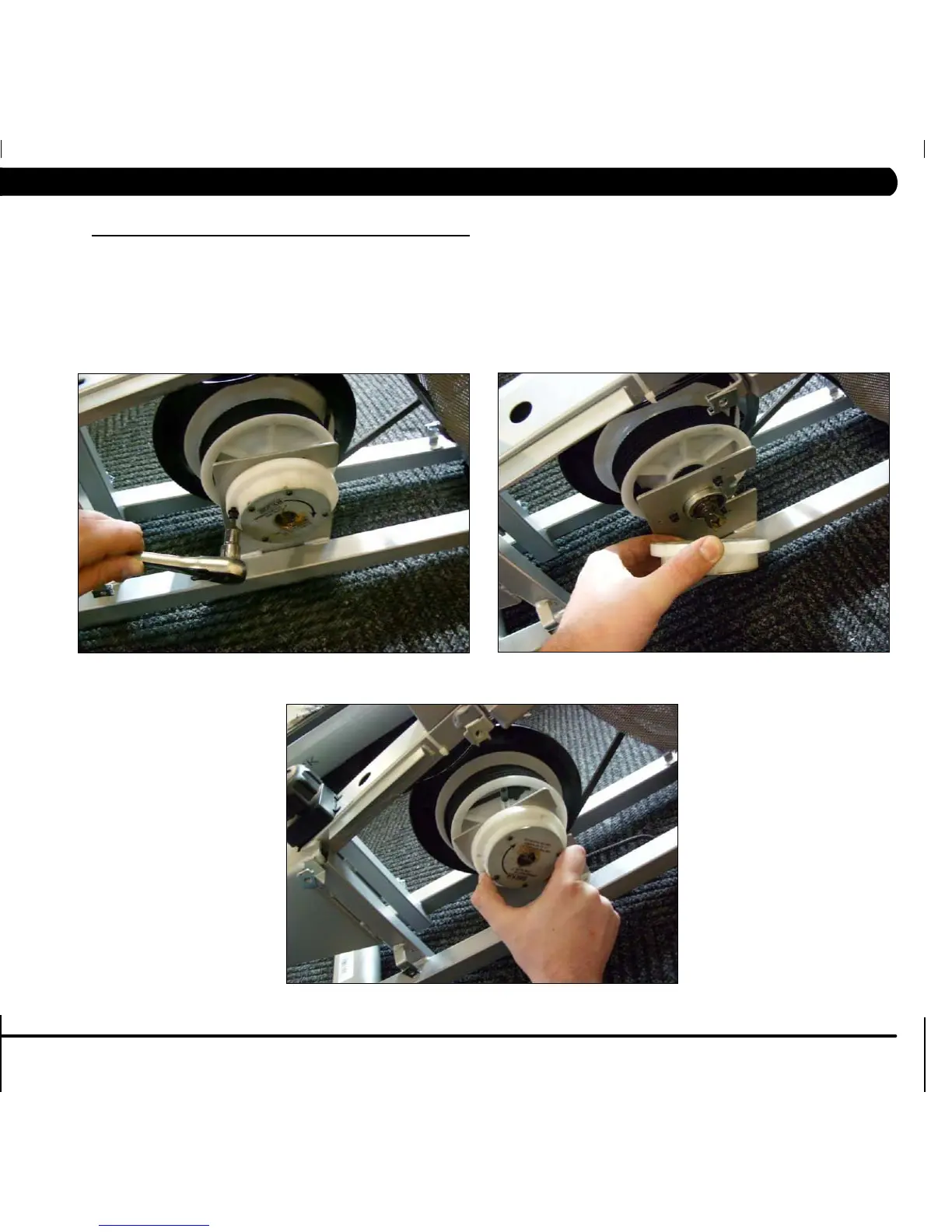

FIGURE A
FIGURE B
FIGURE C
