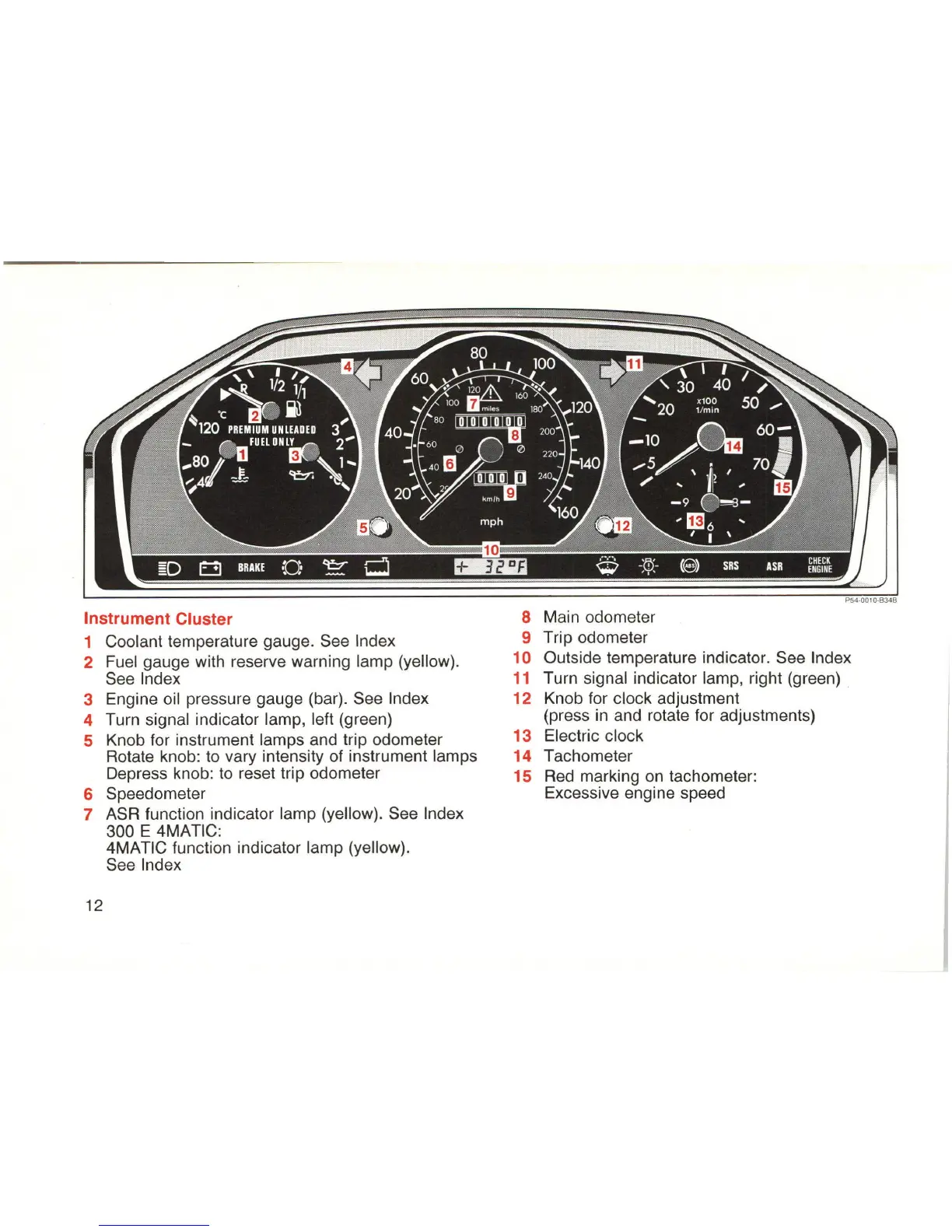

Instrument Cluster
1 Coolant temperature gauge. See Index
2 Fuel gauge with reserve warning lamp (yellow).
See Index
3 Engine oil pressure gauge (bar). See Index
4 Turn signal indicator lamp, left (green)
5 Knob for instrument lamps and trip odometer
Rotate knob: to vary intensity of instrument lamps
Depress knob: to reset trip odometer
6 Speedometer
7 ASR function indicator lamp (yellow). See Index
300 E 4MATIC:
4MATIC function indicator lamp (yellow).
See Index
8 Main odometer
9 Trip odometer
10 Outside temperature indicator. See Index
11 Turn signal indicator lamp, right (green)
12 Knob for clock adjustment
(press in and rotate for adjustments)
13 Electric clock
14 Tachometer
15 Red marking on tachometer:
Excessive engine speed
12
