Headlamp Adjustment
Correct headlamp adjustment is
extremely important. Check and
readjust headlamps at regular
intervals and when a bulb has
been replaced.

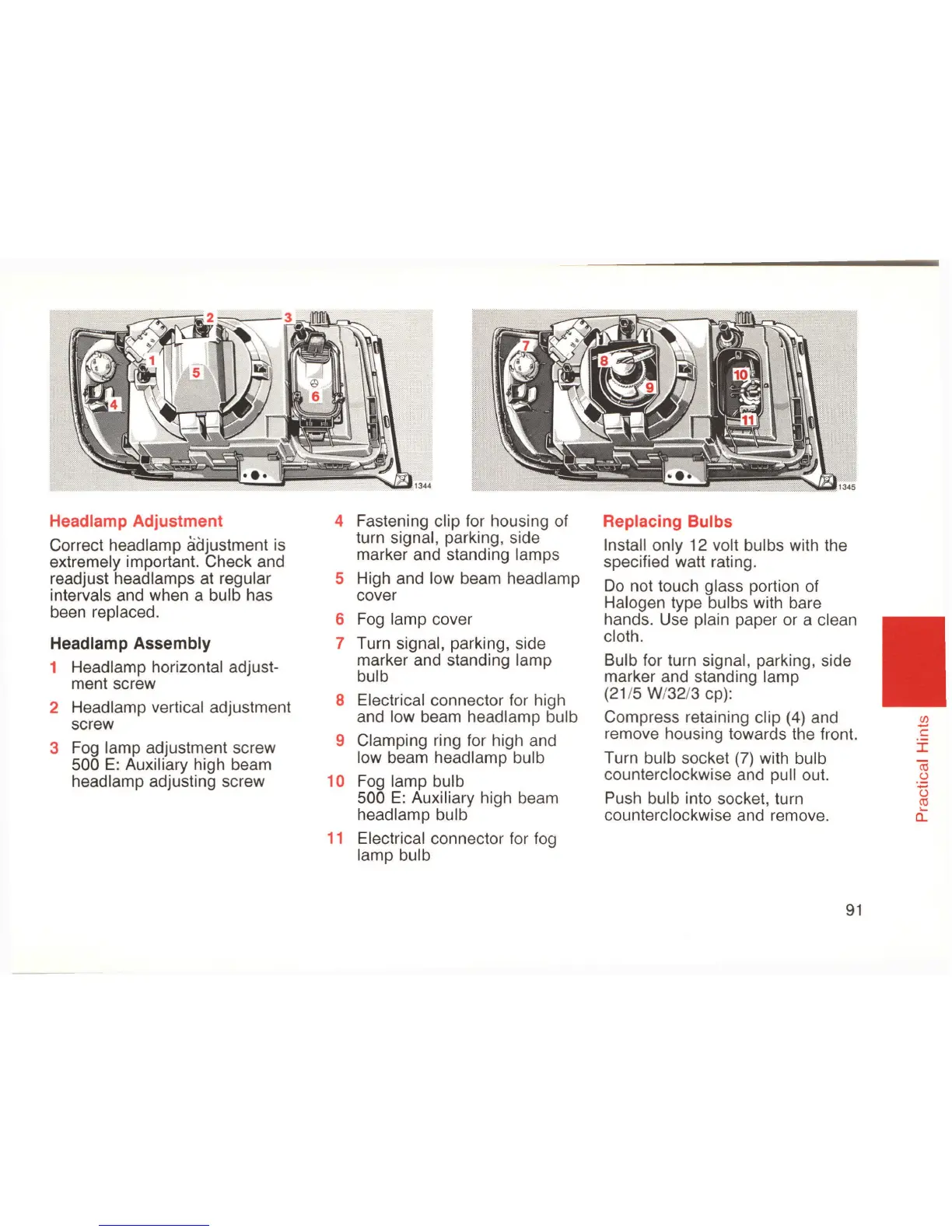

Headlamp Assembly
1 Headlamp horizontal adjust
ment screw
2 Headlamp vertical adjustment
screw
3 Fog lamp adjustment screw
500 E: Auxiliary high beam
headlamp adjusting screw
4 Fastening clip for housing of
turn signal, parking, side
marker and standing lamps
5 High and low beam headlamp
cover
6 Fog lamp cover
7 Turn signal, parking, side
marker and standing lamp
bulb
8 Electrical connector for high
and low beam headlamp bulb
9 Clamping ring for high and
low beam headlamp bulb
10 Fog lamp bulb
500 E: Auxiliary high beam
headlamp bulb
11 Electrical connector for fog
lamp bulb
Replacing Bulbs
Install only 12 volt bulbs with the
specified watt rating.
Do not touch glass portion of
Halogen type bulbs with bare
hands. Use plain paper or a clean
cloth.
Bulb for turn signal, parking, side
marker and standing lamp
(21/5 W/32/3 cp):
Compress retaining clip (4) and
remove housing towards the front.
Turn bulb socket (7) with bulb
counterclockwise and pull out.
Push bulb into socket, turn
counterclockwise and remove.
91
Practical Hints
