Instrument display overview
&
WARNING Risk of accident due to an
instrument cluster malfunction
If the instrument cluster has failed or mal‐
functioned, you may not recognise function
restrictions applying to safety relevant sys‐
tems.
The operating safety of your vehicle may be
impaired.
#
Park the vehicle safely as soon as pos‐
sible and notify a qualified specialist
workshop.

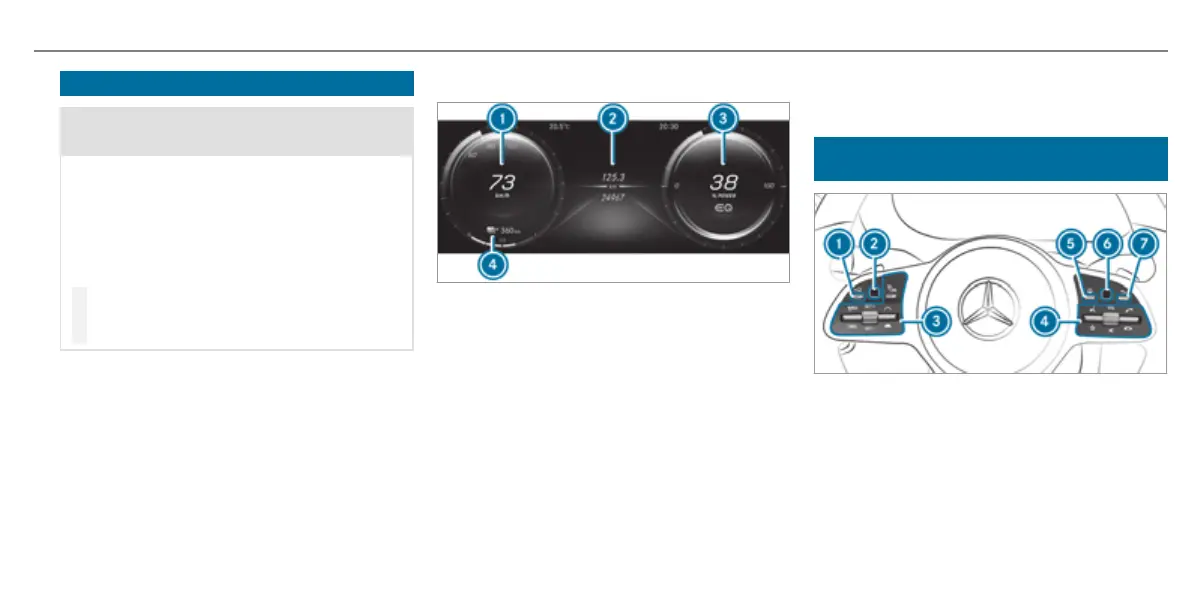

Instrument display
1
Speedometer
2
Multifunction display
3
Example: area for additional values
4
Charge level display
%
Further display content can be shown on dis‐
play 3 for additional values (/ page 266).
The segments on the speedometer 1 indicate
the system status for the following:
R
Cruise control(/ page 208)
R
Limiter (/ page 209)
R
Active Distance Assist DISTRONIC
(/ page 212)
Overview of the buttons on the steering
wheel
1
¤ Back/Home button (press and hold),
on-board computer
2
Touch Control, on-board computer
3
Control panel for limiter or Active Distance
Assist DISTRONIC
4
Control panel for MBUX multimedia system:
£ LINGUATRONIC
ß Displays favourites
Instrument Display and on-board computer
263
