INSTALLATION
130 eng
Installing Outboard

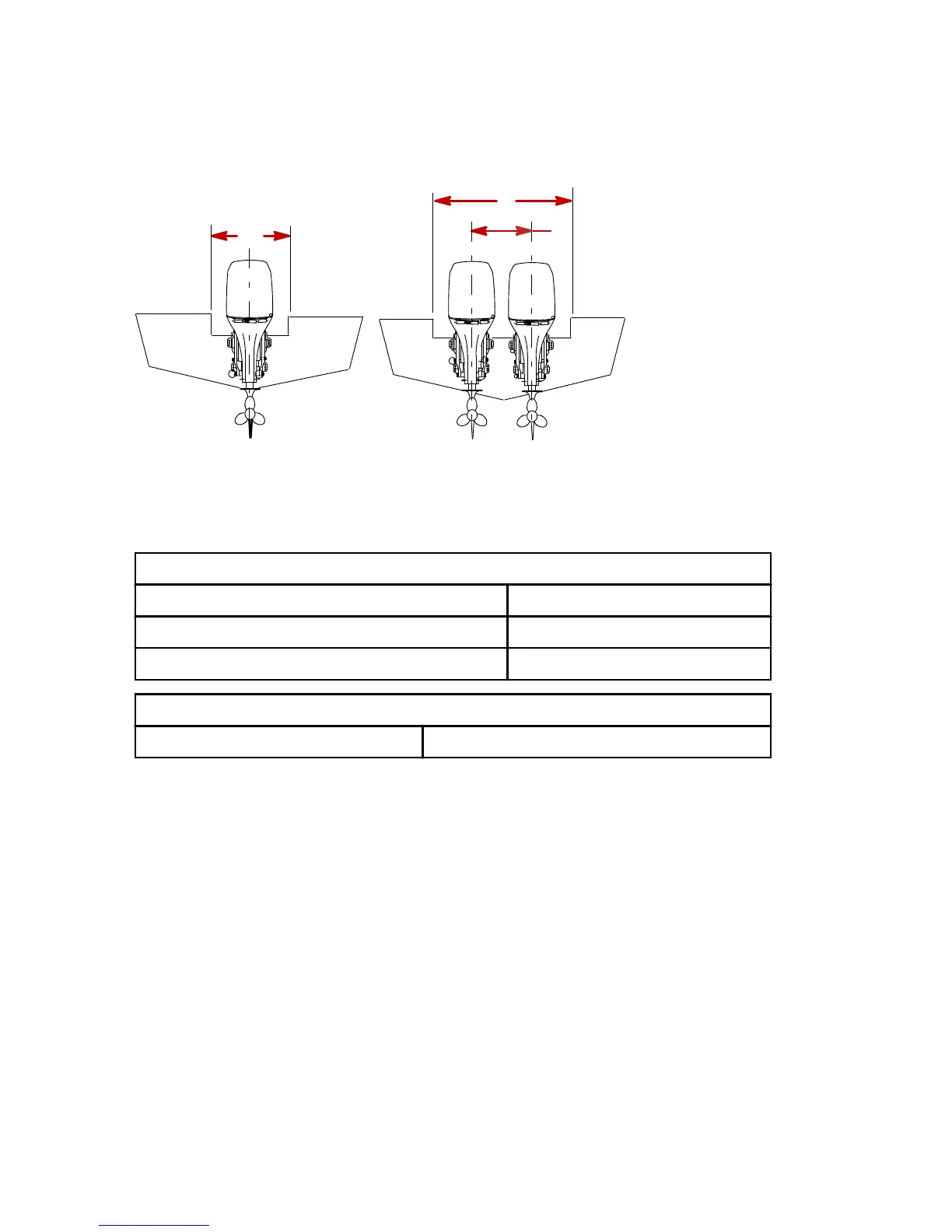

INSTALLATION SPECIFICATIONS
a - Minimum transom opening
b - Engine center line for dual engines
Minimum Transom Opening
Single engine (remote) 48.3 cm (19 in.)
Single engine (tiller) 76.2 cm (30 in.)
Dual engines 101.6 cm (40 in.)
Engine Center Line
Minimum 66 cm (26 in.)
TOP COWL REMOVAL AND INSTALLATION
Top Cowl Removal
1. Unlock the cowl latch located at the rear of the engine by
lifting the latch up.
A
A
B
2763
