INSTALLATION
eng 145
Control Cable Installation
THROTTLE CABLE INSTALLATION
Install cables into the remote control following the instructions
provided with the remote control.
1. Move the remote control handle from neutral into forward
and advance the handle to full speed position.
NOTE: The throttle cable is the second cable to move when
moving the control box out of neutral.
2. Install the throttle cable to the throttle actuating lever.
Secure with a washer and cotter pin retainer.
3. Adjust the throttle cable barrel, so when barrel is installed
into the throttle cable barrel support, no play can be felt
when lightly pushing the throttle cam with your finger.

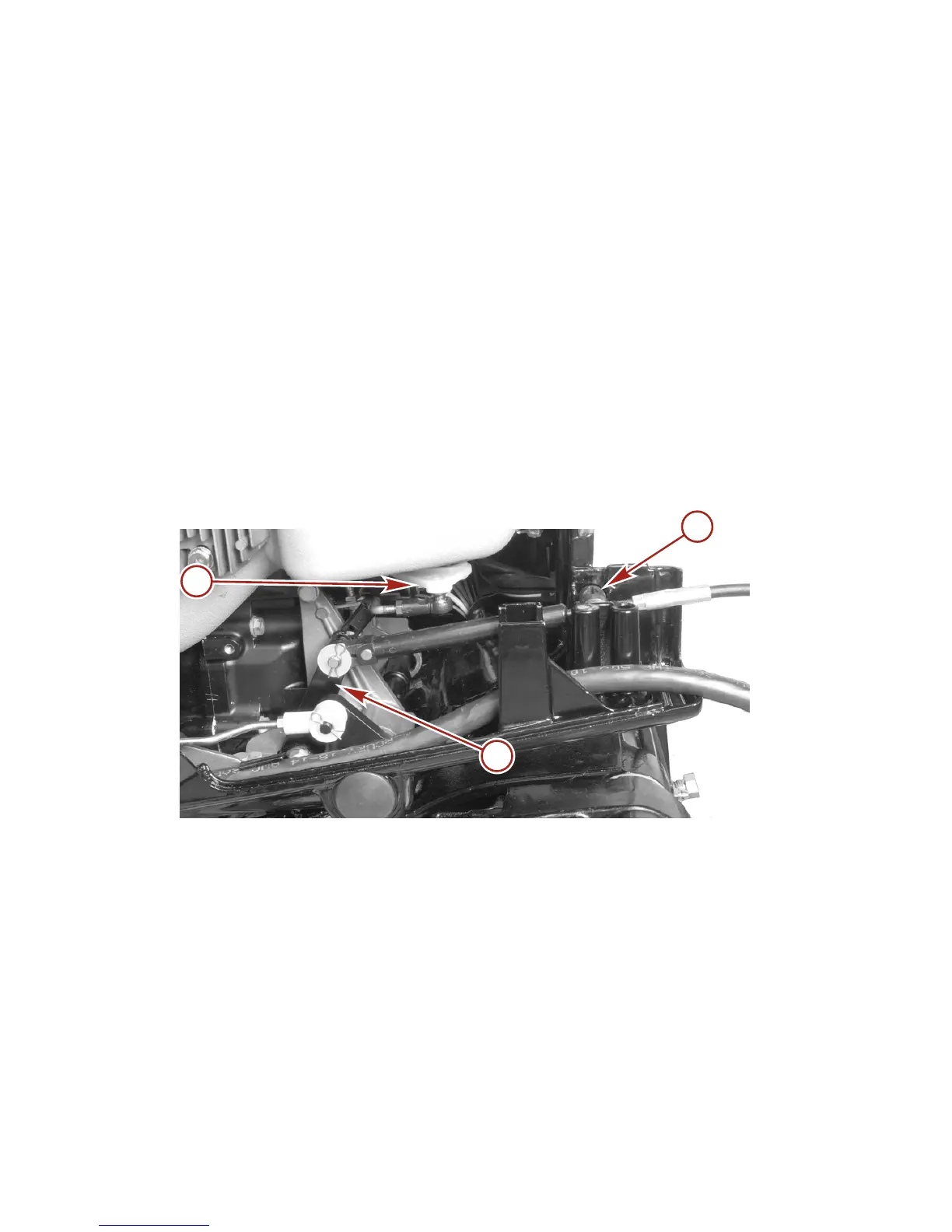

a - Throttle cam (no play can be felt when lightly pushing)
b - Throttle cable barrel support
c - Throttle actuating lever
4. Slowly return the remote control handle back to the neutral
detent position.
5. Inspect cam roller to ensure it is not contacting the cam.
