INSTALLATION

140 eng

Electrical Harness, Battery Connection, Fuel Tanks

REMOTE WIRING HARNESS

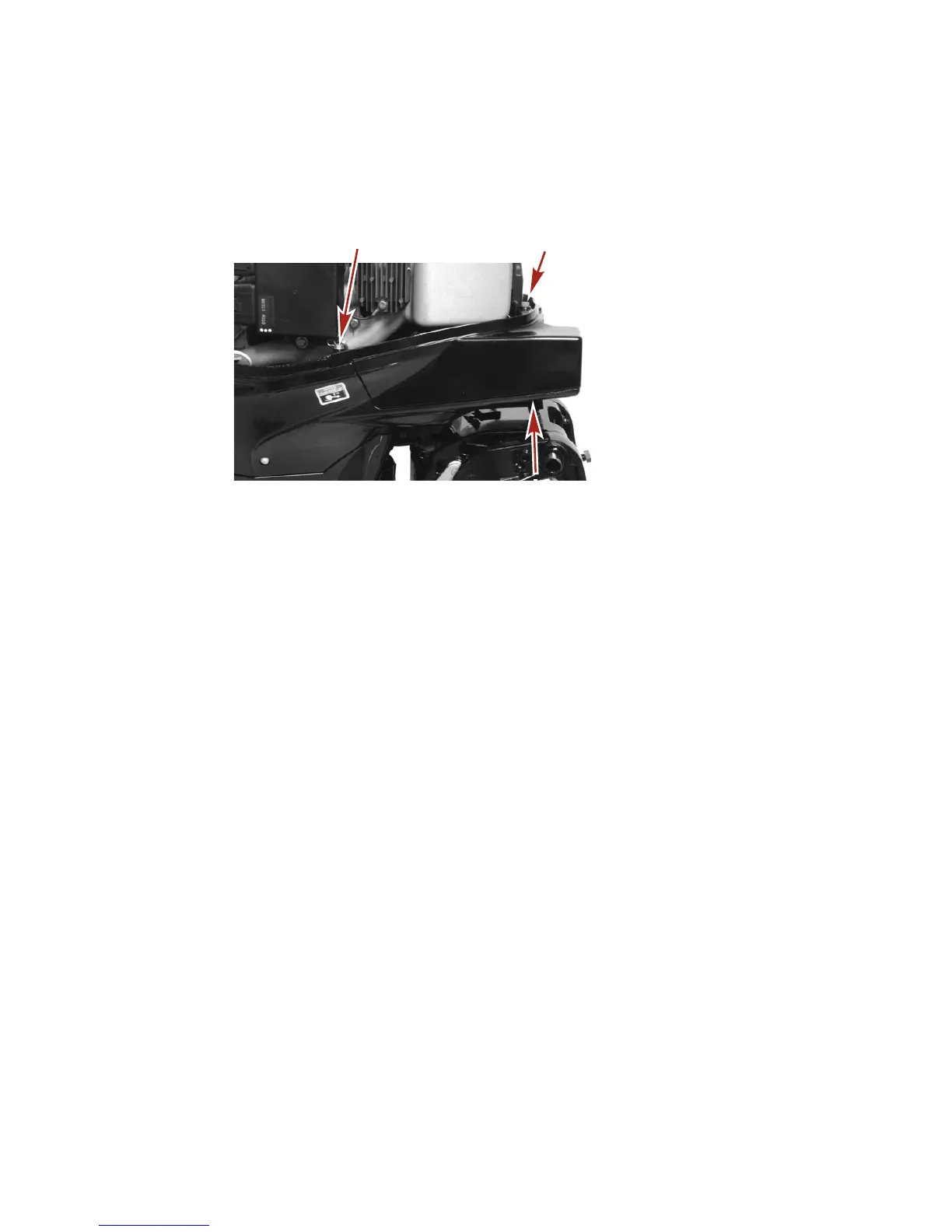

1. Remove the three access cover bolts. Remove the access

cover and cable rubber grommet.

10113

2. Remove the cotter pin retainers and washers from the shift

actuating lever, shift link, and throttle actuating lever.

3. Remove the shift link from the shift actuating lever.
