Under the existing work surface
And
(When installing under the work surface)
In most modern equipped kitchens, there is only one
single work surface under which kitchen elements
and electrical devices are placed. In this case,
remove the work surface of the dishwasher by
unscrewing the screws under the rear edge of the
work surface (And).
And
b
b
Attention
After removing the worktop, you must re-tighten the screws under the back edge of
the worktop (b).
Installation(for built-in model)

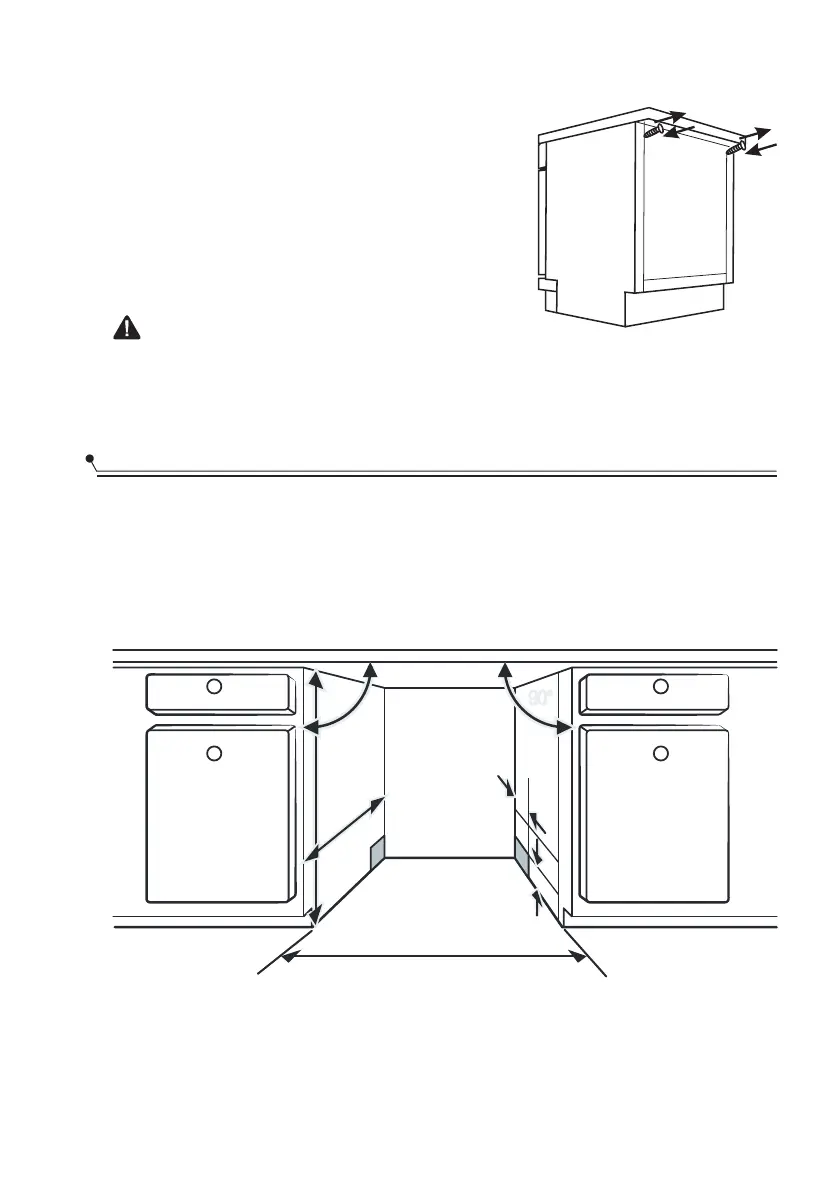

Step 1 Choosing the best place for the dishwasher
The washing machine should be placed close to the existing water supply, drainage pipe and electrical outlet. The illustrations
show the dimensions of the built-in element and the position of the washing machine.
1.Less than 5 mm between the top of the washer and the element, the door flush with the element.
90 °
90 °
Open for
connecting to
power supply and
drain and supply
water
820 mm
80
580 mm
100
The space between the bottoms
element and floor
600 mm (for the 60 cm model)
450mm(for the 45 cm model)
21
To Next Page
