2.13 xH4: Inverter module protection

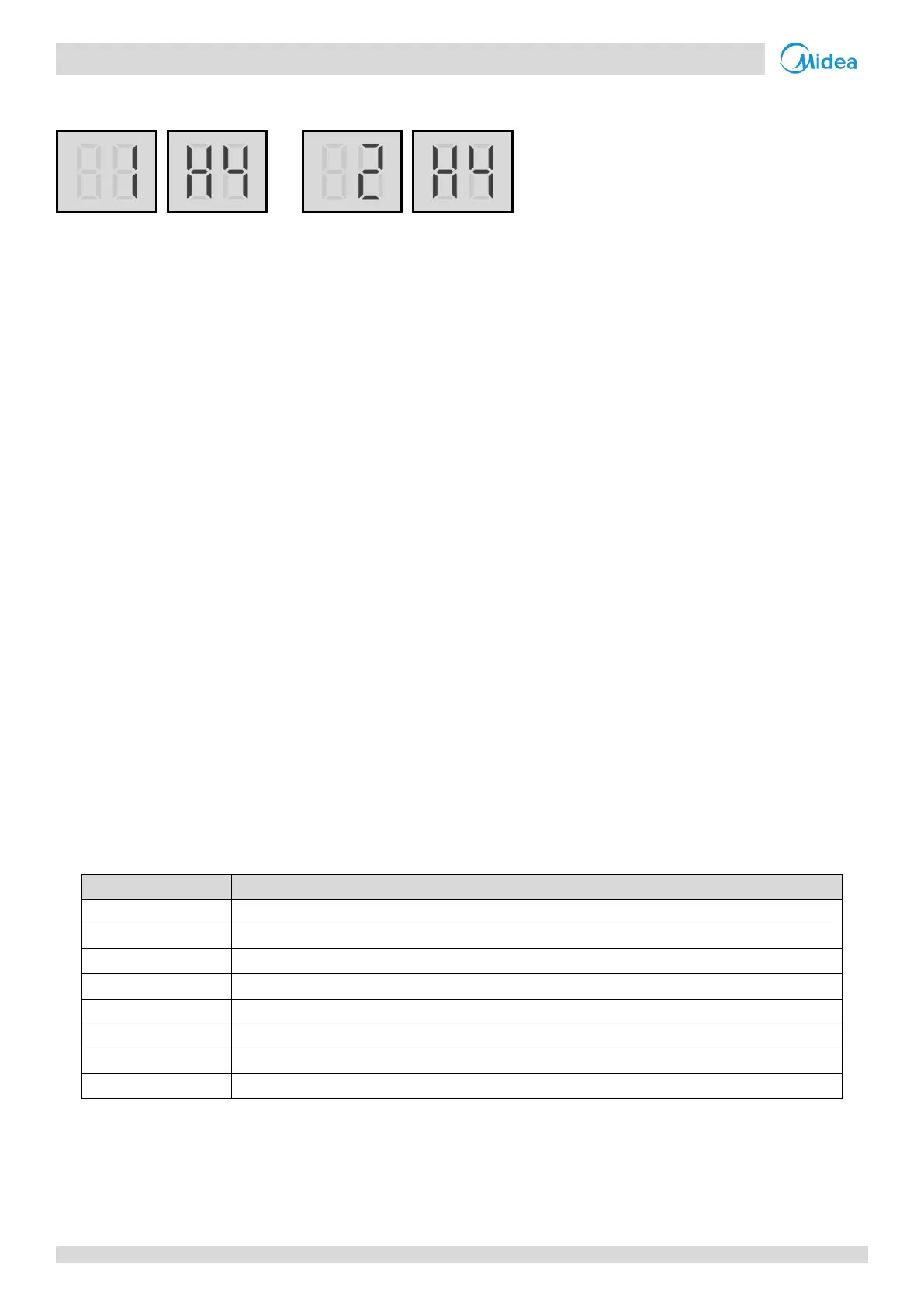

Digital display output 2.13.1
In the error code, 'x' is a placeholder for the compressor system (compressor and related electrical components), with 1
representing compressor system A and 2 representing compressor system B.
Description 2.13.2
 1H4 indicates compressor A inverter module protection.
 2H4 indicates compressor B inverter module protection.
 All units stop running.
 Error code is only displayed on the unit with the error.
Trigger / recover condition 2.13.3
 Trigger condition: Compressor appears three inverter module protections.
 Recover condition: Inverter module goes back to normal.
 Reset method: Manually restart.
Possible causes 2.13.4
 Inverter module protection.
 DC bus low or high voltage protection.
 MCE error.
 Zero speed protection.
 Phase sequence error.
 Excessive compressor frequency variation.
 Actual compressor frequency differs from target frequency.
Specific error codes for xH4 inverter module protection 2.13.5
If an xH4 error code is displayed, enter menu mode “n31” (refer to Part 5, 2.2.3 “menu mode”) to check the history error
code to check the following specific error code: xL0, xL1, xL2, xL4, xL5, xL7, xL8, xL9.
Table 6-2.1: Specific error codes for error xH4
Specific error code
1
Content
xL0
Inverter module protection
xL1
DC bus low voltage protection
xL2
DC bus high voltage protection
xL4
MCE error
xL5
Zero speed protection
xL7
Phase sequence error
xL8
Compressor frequency variation greater than 15Hz within one second protection
xL9
Actual compressor frequency differs from target frequency by more than 15Hz protection
Notes:
1. 'x' is a placeholder for the compressor system (compressor and related electrical components), with 1 representing compressor system A and
2 representing compressor system B.
