Miele H395BP User Manual
4
of 1
of 1 rating
78 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
T
echn
ical
In
fo
rmatio
n
36

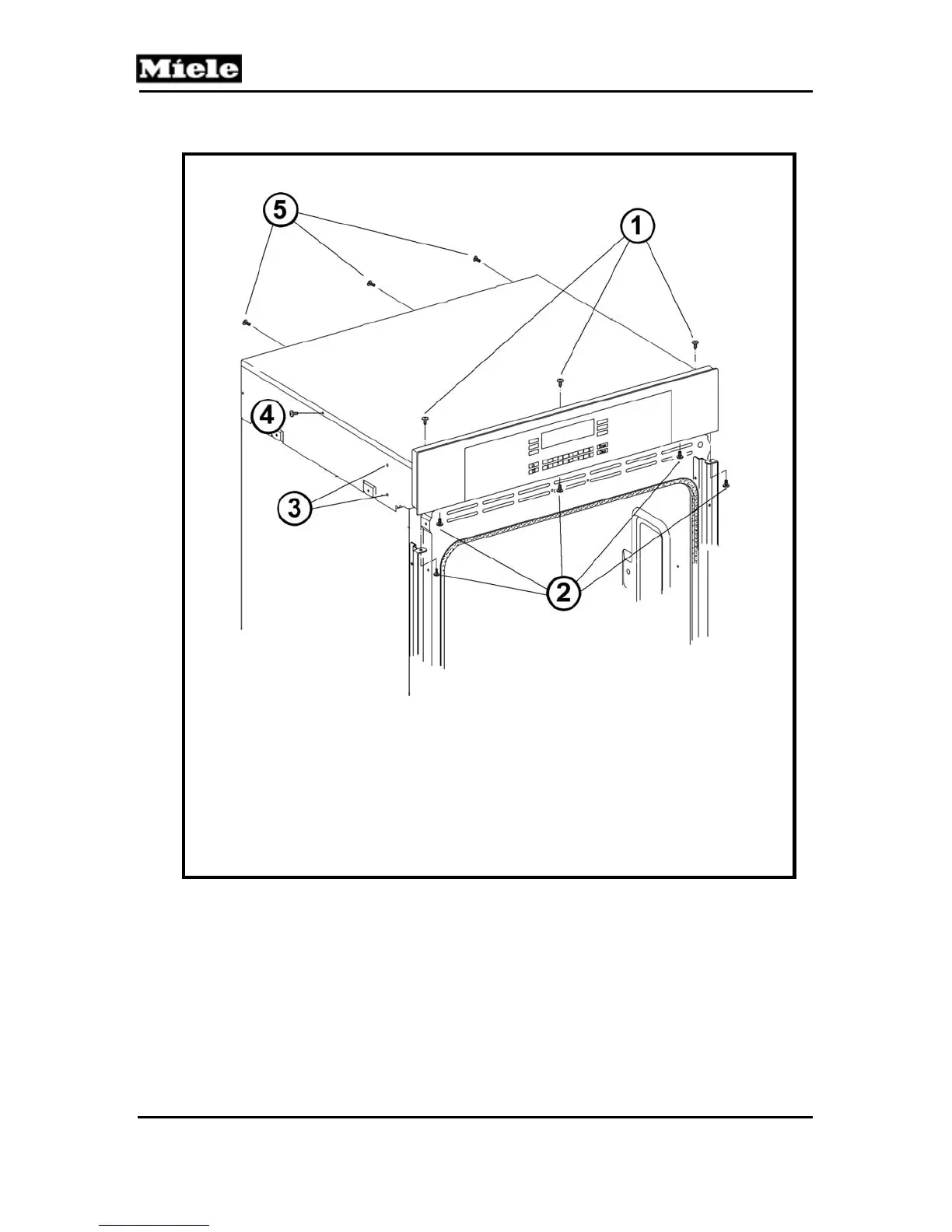

M
aster Chef O
vens
1.
Control
Panel Re
t
aini
ng Screw
s
top (3)
2.
Control
Panel Re
t
aini
ng Screw
s
bottom
(
5)
3.
Sa
fety
Cove
r Re
taining
Scre
ws
(4)
4.
Top
Cove
r Scre
ws s
i
de
(2)
5.
Top
Cove
r Scre
ws re
ar (3
)
Fi
gu
re 5-5:
Cont
rol
Panel
, Saf
ety
Panel
and Top Cov
er Ret
aini
ng Sc
rews
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
1 Construction & Design
9
Summary of Model Numbers
9
Appliance Overview
11
Appliance Overview - Single Oven
11
Overview of Single Oven
11
Appliance Overview - Double Oven
12
Overview of Double Oven
12
Overview of User Controls
13
Overview of Controls - Single Oven
13
Overview of Controls - Double Oven
14
Dimensions
15
Dimensions - Single Oven
15
Dimensions - Double Oven
16
Component Overview
17
Component Overview - Single Oven W/O Master Chef Menu
17
Component Overview - Single Oven W/ Master Chef Menu
18
Component Overview - Double Oven - W/O Self Clean
19
Component Overview - Double Oven W/ Self Clean
21
2 Installation
23
Electrical Connection
24
Electrical Connection - Operational
24
Electrical Connection - Demo / Showrooms
24
Installation Guide
25
3 COMMISSION and OPERATION
27
General Operation
27
Turning off the Oven
27
Power Failures
27
Power Failure Message Displayed
27
Special Features
28
Self Clean (Self Clean Models Only)
28
Door Lock (Self Clean Models Only)
28
Master Chef (All Models Except H394)
28
Child Safety Lock (All Models)
29
4 DESCRIPTION of FUNCTION
31
Airflow Paths
31
Cooling Fan - Specifications
32
Cooling Air Intake
32
Vapor Intake
32
Cooling Air Path
32
Cooling Air Exit
32
Door Contact Switch (1S24 & 2S24)
32
Heating Elements
33
Heating Element Activation
33
Heater Element Operation
33
Automatic / Safety Shutdown
34
Cavity Temperature Sensor (1R30 & 4R30)
34
Upper Heater Element Cavity Temperature Sensor
34
Automatic Safety Shutdown Durations
34
Roast Probe (2R30 & 5R30)
35
Self Clean Temperature Sensor (3R30 & 6R30) (P
35
Self Clean Temperature Sensor & Catalyst Vapor Outlet
35
Thermal Cut-Outs (1F1 & 3F1)
36
Thermal Cut-Outs (2F1 & 4F1) (Self Clean Models Only)
36
Convection Fan
36
Rotisserie Motors (1M15 & 2M15) (All Models Except H394)
36
Oven Cavity Lights
36
Convection Airflow
36
Automatic Door Lock (Self Clean Models Only)
37
Door Locking Components (Self Clean Models Only)
37
5 SERVICE and MAINTENANCE
39
Cleaning & Care Information
39
Perfectclean
39
Manually Cleaning the Oven Cavity
39
Front Door - Removal
40
Door Hinge Locking Tabs
40
Runners - Removal
41
Halogen Light Bulb - Replacement
41
Removing the Runners from the Oven Cavity
41
Prying the Light Cover off
41
Removing the Appliance for Service
43
Control Panel - Removal
43
Safety Cover - Removal
43
Control Panel, Safety Panel & Top Cover Retaining Screws
44
Top Cover - Removal
45
Upper Back Panel (Double Ovens) - Removal
45
Lower (or Single Oven) Back Panel - Removal
45
Upper (Double Oven) Side Covers - Removal
45
Lower (or Single Oven) Side Covers - Removal
46
Air Shield (Double Ovens) - Removal
46
Air Shield Panel
46
Upper (or Single Oven) Cooling Fan - Removal
47
Lower Oven (Double Oven) Cooling Fan - Removal
48
Door Latch - Manual Release (Self Clean Models)
49
Manual Release of the Door Latch (Self Clean Models Only)
49
Upper Door Latch Drive Motor & Switch (Double Oven W/ Self Clean) - Removal
50
Lower Door Latch Drive Motor & Switch (Double Oven W/ Self Clean) - Removal
51
Upper (or Single Oven) Door Latch & Switch, Door Close Switch - Access
52
Door Latch Assembly
53
Lower (Double Oven) Door Latch & Switch, Door Close Switch - Access
54
Oven Cavity Back Panel - Removal
55
Removing the Oven Cavity Back Pane
55
Top Heater / Broiler Heating Element - Removal
56
Convection Heating Element - Removal
57
Convection Fan - Removal
58
Convection Fan Motor and Retaining Screws
58
Operational Temperature Sensor - Removal
59
Top Heater / Broiler Heating Element – Removal
59
Self Clean Temperature Sensor - Removal
59
Self Clean Temperature Sensor Resistance Value Test
60
Rotisserie Motor and Retaining Screws
60
Rotisserie Motor(S) - Removal
60
Catalyst Insert (Self Clean Models Only) - Removal
61
Front Door, Outer Glass Pane - Removal
62
Front Door, Middle Glass Pane - Removal
63
Front Door, Interior Glass Pane - Removal
64
Door Hinge(S) - Removal
65
Door Hinge Removal
65
6 Fault Diagnosis
67
Service Mode
67
Programming Mode
70
Programming Mode Navigation
71
Fault Code Summary
73
Summary of Fault Codes
73
Electronic Boards - Layout
74
Main Electronic
74
Display Electronic
74
Main Electronic Layout
74
4
Based on 1 rating
