Miele H395BP User Manual

Technical Information
46
Master Chef Ovens

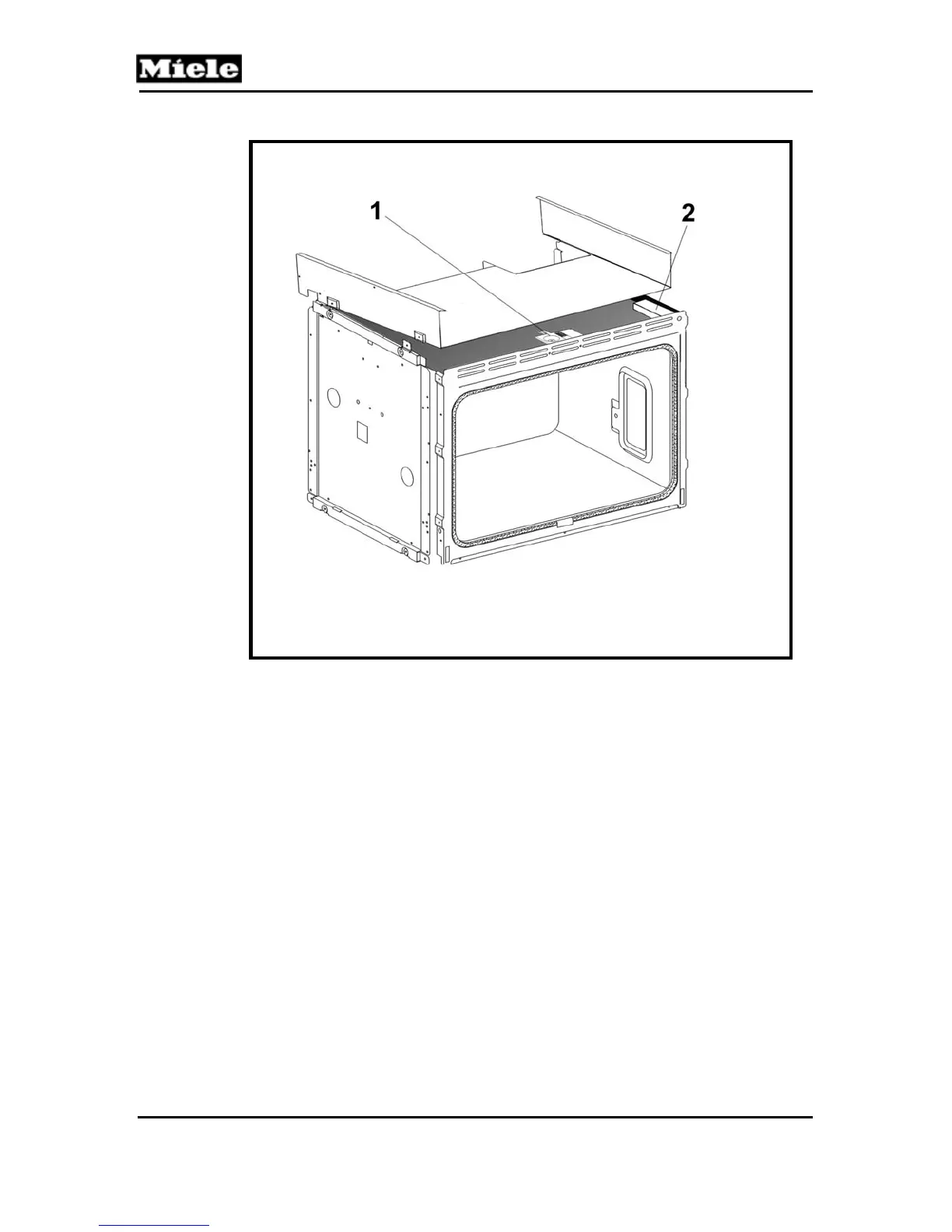

Figure 5-14: Lifting the front of the Upper Housing to access the Door Lock /
Latch Assembly and Door Closed Switch
5.20 Lower Door Latch, Door Lock Switch and Door Close
Switch (4S60 & 2S24) (Double Oven P/Self Clean
Models) - Access
1. Remove the Front Doors (Section 5.2).
2. Remove the oven (Section 5.5).
3. Remove the Upper Back Panel (Section 5.9)
4. Remove the Lower Back Panel (Section 5.10).
5. Remove the Air Shield Panel (Section 5.13)
6. Refer to Figure 5-13. Remove the two screws that secure the Latch
Assembly to the Cavity Assembly.
7. From the rear of the oven, reach into the Air Shield Opening to access
the Door Lock Switch and Door Closed Switch.
1. Door Latch Assembly
2. Door Closed Switch

Miele H395BP Specifications

General

Fuel Type	Electric
Energy Efficiency Class	A
Installation Type	Built-in
Door Material	Glass
Timer	Yes
Child Lock	Yes
Type	Built-in
Cleaning System	Pyrolytic
Frequency	50 Hz
Dimensions (H x W x D)	595 x 594 x 548 mm
Width	59.5 cm
Height	59.6 cm
